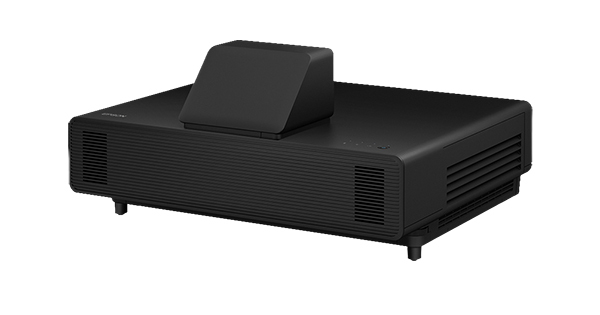

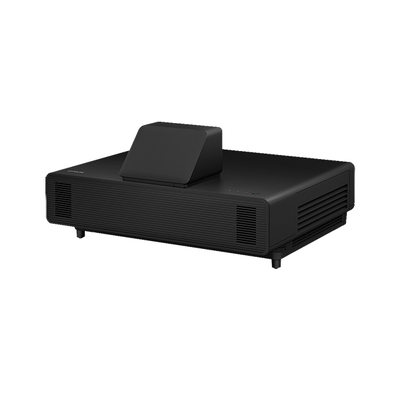

Epson V11H923653 EB-805F Ultra Short Throw Projectors
- 3 x Brighter Colours and Reliable Performance1 – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Bright Images – Up to 5,000 lumens colour/white brightness
- Break Through Laser Technology – Provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
- Full HD2 display up to 130" – For an optimal viewing experience and clear readability — over 2x as big as a 70" flat panel
- Ultra-wide 16:6 image – Maximise the impact of digital signage to its ultra-wide display up to 120 inches
- Zero Offset lens – Produces an image up to 130 inches without creating a shadow at a throw distance of 80.3cm, allowing the projector to be installed in both large and small spaces
- Create head-turning digital signage – illuminate and project on virtually any surface or material, for digital art, commercial signage and décor applications
- Blends in discretely – sleek design easily blends into its surroundings, offering vertical and horizontal rotation, with flexible placement on floors and mounting on walls or ceilings
- Robust management and control tools – via Epson’s Web-based application or over the network with Crestron, Extron and more
- Scalable, for an array of applications – install multiple EB-805F projectors and utilise Edge Blending technology for versatile, breathtaking displays
- DIY content creation – comes with templates, effects, colour filters and customisable options; playlist and playback function allow for seamless content management for single or multiple projectors
- Expansive connectivity – HDBaseT, HDMI, VGA, LAN and USB-A for direct content display and storage when needed
(V11H923653)
| PRODUCT NAME | EB-805F | ||
| PRODUCT CODE | V11H923653 | ||
| TECHNOLOGY | |||
|---|---|---|---|
| Projection Technology | Epson 3LCD, 3-chip technology | ||
| Light Source | Laser Diode | ||
| Projection System | RGB liquid crystal shutter projection system | ||
| LCD Panel | 0.62-inch (C2fine) | ||
| OPTICAL | |||
| Zoom | 1 – 1.35 (Digital) | ||
| Screen Size | 65" to 130" [39.2 cm to 80.3 cm] @16:9 Wide 61" to 120" [39.5 cm to 79.6 cm] @16:6 Wide 48" to 96" [39.2 cm to 80.3 cm] @16:9 Tele |
||
| Projection Distance | 80" screen at 48.7cm | ||
| Throw Ratio | 0.27 (Zoom:Wide) 0.37 (Zoom:Tele) |
||
| Projection Lens F Number | 1.5 | ||
| Projection Lens Focal Length | 3.9 mm | ||
| Focus Method | Manual | ||
| Lens Shift | N / A | ||
| IMAGE | |||
| Colour Light Output | 5,000 lumens | ||
| White Light Output | 5,000 lumens | ||
| Resolution | FHD | ||
| Native Aspect Ratio | 16:9 | ||
| Contrast Ratio | Over 2,500,000:1 | ||
| Light Source | Laser | ||
| Colour Reproduction | Up to 1.07 billion colours | ||
| Colour Processing | 10 bit | ||
| Keystone Correction | Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees |
||
| Quick Corner | Yes | ||
| Edgeblend | Yes | ||
| Content Playback | Yes | ||
| Refresh Rate | 192 Hz / 240 Hz | ||
| *Pixel shifting technology achieves Full HD resolution on screen | |||
| CONNECTIVITY | |||
| Video I/O - Input | 2 x Monitor in (RGB D-sub 15 pin), 1 x RCA in (composite) | ||
| Video I/O - Output | 1 x Monitor out (RGB D-sub 15 pin) | ||
| Digital Input | 3 x HDMI (HDCP 2.3), 1 x HDBaseT (RJ45) | ||
| Digital Output | 1 x HDMI | ||
| Audio I/O - Input | 3 x Audio In (Stereo Mini) | ||
| Audio I/O - Output | 1 x Audio out (Stereo Mini) | ||
| Control I/O | RS-232C (D-sub 9 pin) | ||
| USB I/O | 2 x Type A (for USB Memory, Firmware update, copy OSD Settings) 1 x Type A (for Power supply only 5V) 1 x Type B (Firmware update, Copy OSD Settings) |
||
| Network I/O: | 1 x RJ45 | ||
| Wireless Connectivity | Optional (ELPAP11) | ||
| Speaker Output | 16W | ||
| ADVANCED FEATURES | |||
| Epson Projection Management Software | Yes | ||
| Epson Content Management Software | Yes | ||
| Partner Standards | Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol | ||
| Firmware Update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
||
| Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
||
| Wireless LAN Security | WPA2/WPA3-PSK (Personal), WPA2/WPA3-EAP (Enterprise) |
||
| Instant Off | Yes | ||
| Direct Power On | Yes | ||
| Auto Power On | Yes | ||
| Security | Kensington® lock provision | ||
| Colour Modes | Dynamic Presentation Cinema sRGB BlackBoard DICOM SIM Multi-Projection |
||
| Wall Mount | Optional (ELPMB62) | ||
| GENERAL | |||
| Dimensions D x W x H (excluding feet) | 375 x 458 x 209.5 mm | ||
| Weight | 9.4 kg | ||
| Projector Warranty | 3 Years | ||
| Power Consumption: Projector on | 366 W | ||
| Power Consumption: Standby | 2 W | ||
| Noise Level (Normal / Eco) | 36 / 27 dB | ||
| WHAT'S IN THE BOX | |||
| Main Unit | EB-805F Projector | ||
| Power Cable | 1.8 m | ||
| Lens Cap | Yes | ||
| Remote Control | Yes | ||
| Battery for Remote Control | 2 x AA | ||
| Cable Cover | Yes | ||
| SKU | V11H923653 |
| Brand | EPSON |
| Shipping Weight | 9.4000kg |
Manufacturer Warranty: 3 Years Limited Warranty
