KC3000 PCIe 4.0 NVMe M.2 SSD

Name: Kingston KC3000 512GB PCIe 4.0 NVMe M.2 2280 SSD - SKC3000S/512G
Brand: KINGSTON
SKU: SKC3000S-512G
Price: 251 AUD
Availability: InStock

High-Performance Storage for Desktop and Laptop PCs

Part Number: SKC3000S/512G | Brand: Kingston

Key Features

PCIe 4.0 NVMe high-performance
Upgrade with full capacities up to 4096GB2
Compact M.2 2280 form factor
Low profile graphene aluminum heat spreader

Overview

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers intense speeds of up to 7,000MB/s for high-performance desktops and laptops using the latest Gen 4x4 NVMe controller and 3D TLC NAND. Ideal for 3D rendering and 4K+ content creation, it ensures seamless workflows and rapid load times, while the low-profile graphene aluminium heat spreader keeps your drive cool. Its compact M.2 2280 design offers flexibility, with capacities from 512GB to 4096GB.

Description

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4x4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s 1 read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market. The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times. Full capacities available from 512GB–4096GB 2 to meet your data storage requirements. PCIe 4.0 NVMe high-performance Upgrade with full capacities up to 4096GB 2 Compact M.2 2280 form factor Low profile graphene aluminum heat spreader

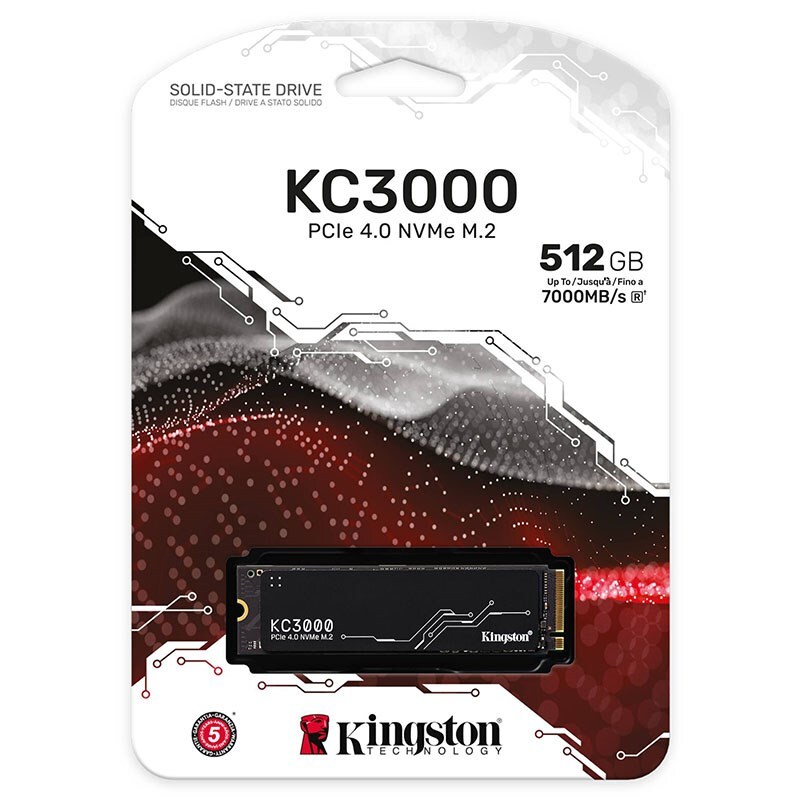

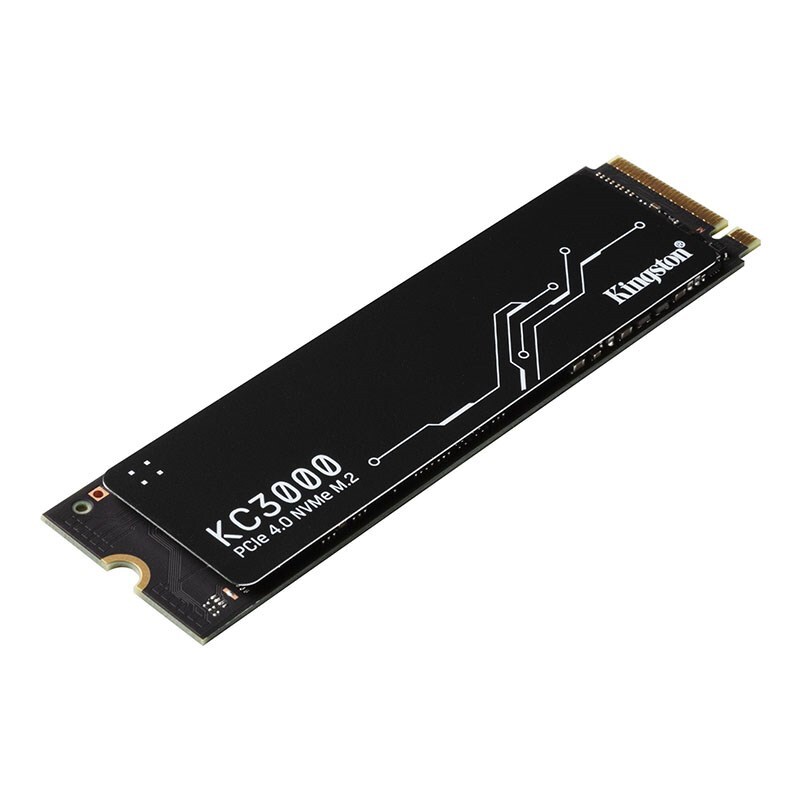

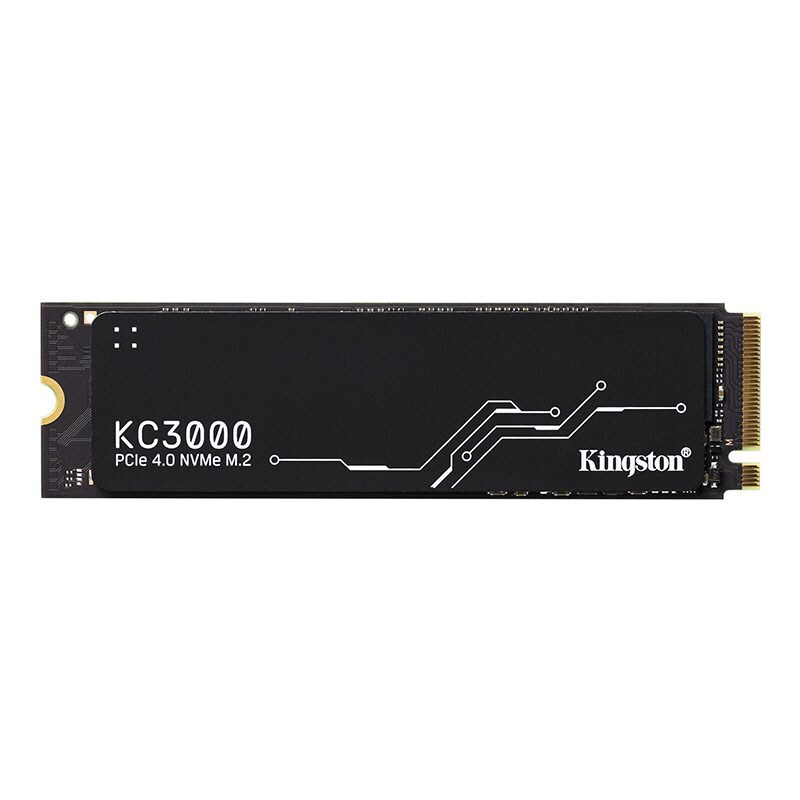

Product Images

(SKC3000S-512G)

Specifications - SKC3000S/512G

General

Form Factor	M.2 2280
Interface	PCIe 4.0 x4 NVMe
Capacities2	512GB, 1024GB, 2048GB, 4096GB
Controller	Phison E18
NAND	3D TLC
DRAM Cache	Yes
Sequential read/write	512GB – 7,000/3,900MB/s1024GB – 7,000/6,000MB/s2048GB – 7,000/7,000MB/s4096GB – 7,000/7,000MB/s
Random 4K read/write1	512GB – up to 450,000/900,000 IOPS1024GB – up to 900,000/1,000,000 IOPS2048GB – up to 1,000,000/1,000,000 IOPS4096GB – up to 1,000,000/1,000,000 IOPS
Total Bytes Written (TBW)3	512GB – 400TBW1024GB – 800TBW2048GB – 1.6PBW4096GB – 3.2PBW
Power consumption	512GB – 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write1024GB – 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write2048GB – 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write4096GB – 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write
Storage temperature	-40°C~85°C
Operating temperature	0°C~70°C
Dimensions	80mm x 22mm x 2.21mm (512GB-1024GB)80mm x 22mm x 3.5mm (2048GB-4096GB)
Weight	512GB-1024GB – 7g2048GB-4096GB – 9.7g
Vibration operating	2.17G peak (7-800Hz)
Vibration non-operating	20G Peak (20-1000Hz)
MTBF	2,000,000 hours
Warranty/Support4	Limited 5-year warranty with free technical support
