Flexible mobile connectivity
Built-in eSIM supports remote plan activation, third-party eSIM providers and multiple profiles. The device supports 5G SA and NSA, LTE Category 20 and 3G, with the supported frequency bands listed in the specifications.
MikroTik LAMP 5G R16 Outdoor 5G Router with eSIM, IP67
-
SKU: LAMPGMRG520F-EU
$566.00
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely

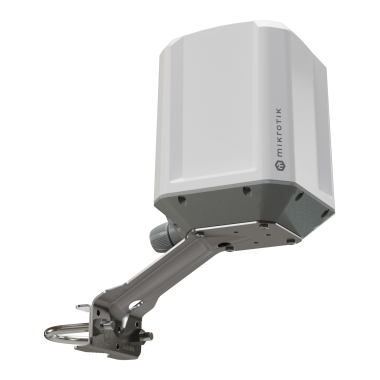

MikroTik LAMP 5G R16 Outdoor 5G Router with eSIM, IP67
The MikroTik LAMP 5G R16 provides outdoor 5G connectivity through omnidirectional antennas, helping installations connect to available networks without directional antenna realignment. Built-in eSIM and a physical Micro SIM slot provide options for urban sites, backup connections, ports and marine environments.
GNSS is intended for positioning, tracking and non-critical location-aware applications. This device is not designed or certified for navigation, route guidance or safety-critical marine navigation.
Outdoor and marine installations
An IP67 enclosure, EN 60945 maritime certification and the included stainless-steel mounting bracket support demanding outdoor deployments. A Gigabit Ethernet port accepts 802.3af/at PoE input at 1256 V.
Positioning support
GNSS support includes GPS, Galileo, BeiDou and QZSS for tracking and non-critical location-aware applications. RouterOS v7 runs on a dual-core 800 MHz ARM processor with 512 MB of RAM.
Product video
(LAMPGMRG520F-EU)
Features
- 5G SA and NSA connectivity with omnidirectional antennas
- Built-in eSIM with support for third-party providers and multiple profiles
- One physical Micro SIM slot
- IP67 enclosure and EN 60945 maritime certification
- GPS, Galileo, BeiDou and QZSS positioning support
- One Gigabit Ethernet port with 802.3af/at PoE input
- RouterOS v7 with 512 MB RAM
- Stainless-steel mounting bracket included
Specifications
Product specifications
| Product code | LAMPGM&RG520F-EU |
|---|---|
| Architecture | ARM 64bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Number of DC inputs | 1 (PoE-IN) |
|---|---|
| Max power consumption | 10 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-56 V |
Ethernet
| 10/100/1000 Ethernet ports | 1 |
|---|---|
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 1 |
Peripherals
| Number of SIM slots | 1 Modem (Micro SIM) |
|---|---|
| Number of M.2 slots | 1 |
Certification & Approvals
| Certification | CE, EAC, ROHS |
|---|---|
| IP | 67 |
Mobile
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
|---|---|
| 3G bands | 1 (2100 MHz) 5 (850 MHz) 8 (900 MHz) |
| MIMO DL | 4x4 |
| LTE Category | 20 (DL: 2.0 Gbps; UL: 200 Mbps) |
| MIMO UL | 2x2 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz) |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 42 (3500 MHz) 43 (3700 MHz) |
| 5G NSA FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) |
| TAC | 86945405 |
| 5G NSA TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz) |
| 5G SA FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) |
| 5G SA TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz) |
Other
| eSIM | Yes |
|---|
Additional product details
| Antenna system | Omnidirectional |
|---|---|
| eSIM profiles | Multiple profiles; third-party eSIM providers supported |
| GNSS standards | GPS, Galileo, BeiDou, QZSS |
| Maritime certification | EN 60945 |
| Included mounting bracket | Stainless steel |
| SKU | LAMPGMRG520F-EU |
| Brand | MIKROTIK |
| Shipping Weight | 3.0000kg |
