MSI SYM-CUBI61MXXXBAUC7

MSI Cubi NUC 1M-015BAU Barebone Mini PC with Intel Core 7 150U

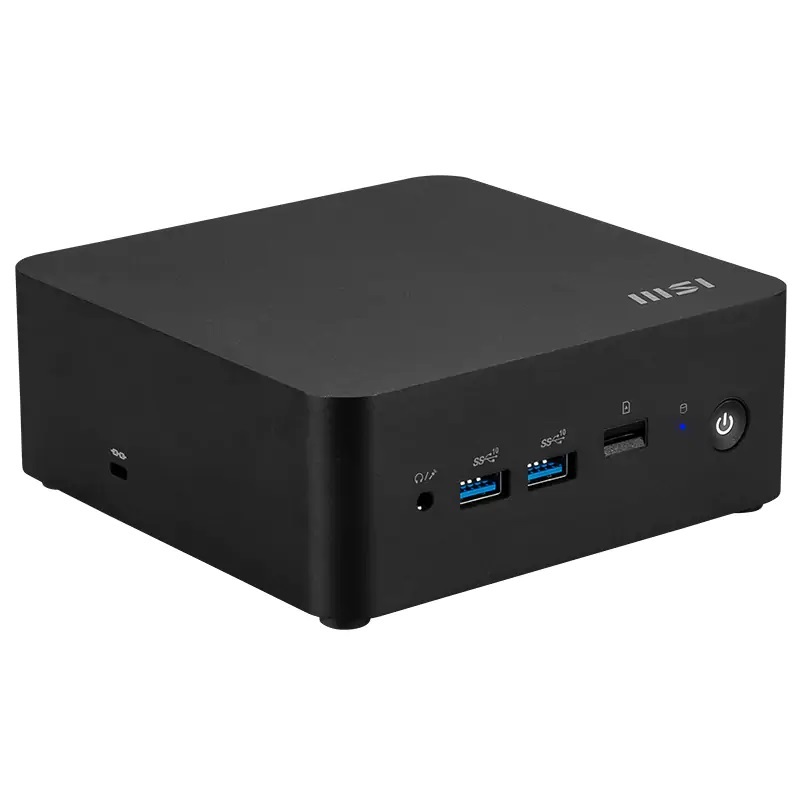

A compact black barebone mini PC with Intel Core 7 150U, two DDR5 SO-DIMM slots, two M.2 slots, a 2.5-inch bay, dual LAN and dual HDMI.

ProcessorIntel Core 7 150U

Memory support2 × DDR5 SO-DIMM; up to 64GB

Storage expansion2 × M.2 plus 1 × 2.5-inch bay

BareboneMemory and storage not included

Product overview

The MSI Cubi NUC 1M-015BAU is a compact barebone mini PC built around an Intel Core 7 150U processor with 10 cores, 12 threads and up to 5.40GHz turbo frequency. Memory and storage are not included: the supplied specification lists two DDR5 SO-DIMM slots supporting up to 64GB, two free M.2 slots and one free 2.5-inch drive bay. Connectivity includes Wi-Fi 6E with Bluetooth 5.3, two RJ45 ports, two HDMI 2.0 outputs, four USB 3.2 Gen 2 Type-A ports, a card reader and audio combo connection.

Important product details

This is a barebone system: compatible memory and storage are not included and must be selected separately.
The concise description says Wi-Fi 6, while the detailed specification lists Wi-Fi 6E plus Bluetooth 5.3; confirm the approved wireless wording before publication.

Source review: Supplied wireless wording differs: the concise product description says Wi-Fi 6, while the detailed specification lists Wi-Fi 6E plus Bluetooth 5.3. Confirm the approved Wi-Fi description before publication.

Manufacturer warranty in Australia

DeviceDeal is an authorised reseller. This product is covered by the applicable MSI manufacturer warranty in Australia.

Frequently asked questions

Is memory included with the MSI Cubi NUC 1M-015BAU?

No. This is a barebone system; memory is not included. The supplied specification lists two DDR5 SO-DIMM slots and support up to 64GB.

Is storage included?

No. Storage is not included. Two free M.2 slots and one free 2.5-inch drive bay are listed.

Which processor is supplied?

The source lists an Intel Core 7 150U with 10 cores, 12 threads and up to 5.40GHz turbo frequency.

Which display outputs are included?

The supplied specification lists two HDMI 2.0 outputs.

Which wireless version is listed?

The concise description says Wi-Fi 6, while the detailed specification says Wi-Fi 6E plus Bluetooth 5.3; confirm the approved wording before purchase.

(SYM-CUBI61MXXXBAUC7)

Features and highlights

MSI Cubi NUC 1M-015BAU Barebone Mini PC with Intel Core 7 150U

A compact Intel Core 7 barebone platform with flexible DDR5 and storage expansion, dual-display output, dual LAN and modern wireless connectivity.

Intel Core 7 150UProvides 10 cores, 12 threads, a 1.8GHz clock and up to 5.40GHz turbo frequency.

Barebone configurationMemory and storage are not included.

DDR5 expansionIncludes two free SO-DIMM slots with supplied support up to 64GB.

Dual M.2 slotsTwo M.2 slots are supplied and both are listed as free.

2.5-inch drive bayOne free 2.5-inch drive bay is included.

Wi-Fi 6E and Bluetooth 5.3The detailed specification lists Wi-Fi 6E plus Bluetooth 5.3.

Dual LANTwo RJ45 network ports are included.

Dual HDMI 2.0Two HDMI 2.0 outputs are listed.

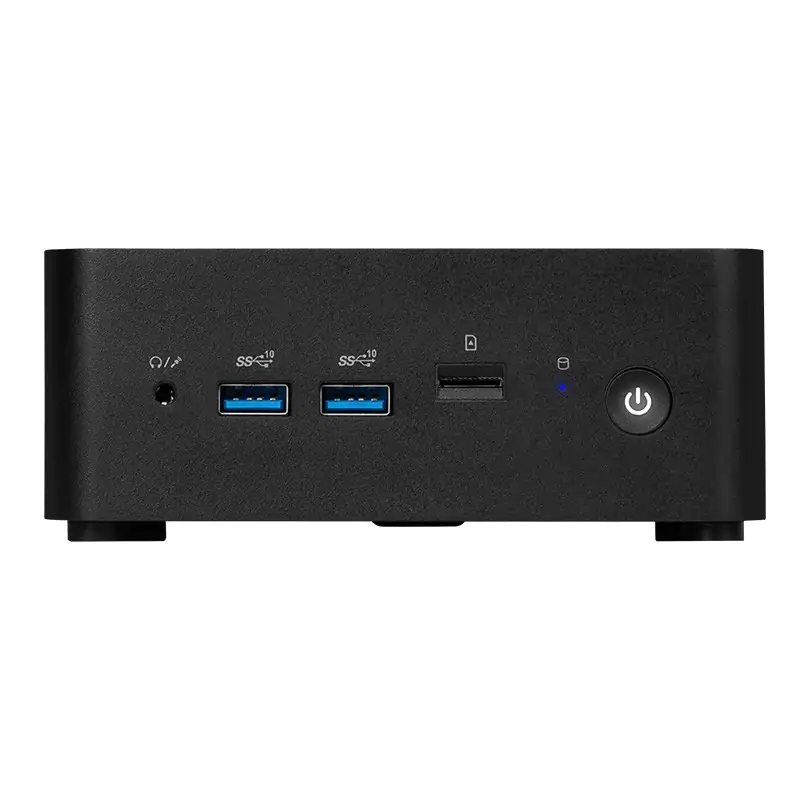

Four USB-A portsThe specification lists four USB 3.2 Gen 2 Type-A ports across front and rear.

Card readerAn integrated card reader is listed.

VESA mount kitA VESA mount kit is included in the supplied box contents.

Compact black designThe supplied product colour is black.

Key highlights

Intel Core 7 150U with 10 cores and 12 threads
Two DDR5 SO-DIMM slots supporting up to 64GB
Two M.2 slots and one 2.5-inch drive bay

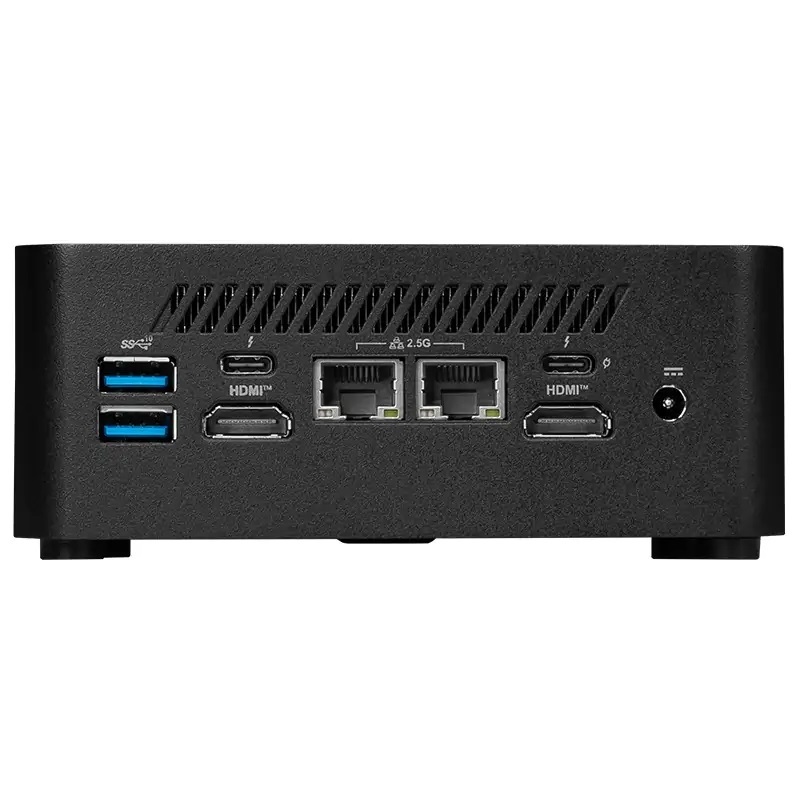

Dual RJ45, dual HDMI 2.0 and four USB-A ports
Wi-Fi 6E, Bluetooth 5.3, card reader and VESA kit

Specifications MSI Cubi NUC 1M-015BAU Barebone Mini PC with Intel Core 7 150U

SKU: SYM-CUBI61MXXXBAUC7

General information

Brand	MSI
Manufacturer part number	SYM-CUBI61MXXXBAUC7
Model	Cubi NUC 1M-015BAU
Product type	Barebone mini PC
Colour	Black

Processor

Processor	Intel Core 7 150U
Base clock	1.8GHz
Maximum turbo frequency	Up to 5.40GHz
Cores	10
Threads	12
Cache	12MB Intel Smart Cache
TDP	15W
Chipset	SoC

Memory and storage not included

Memory type	DDR5 SO-DIMM
Memory slots	2 total; 2 free
Maximum memory	64GB
M.2 slots	2 total; 2 free
2.5-inch drive bays	1 total; 1 free
3.5-inch drive bays	None

Connectivity and audio

Wireless in detailed specification	Wi-Fi 6E plus Bluetooth 5.3
Wireless in concise description	Wi-Fi 6 confirm approved wording
RJ45	2
HDMI output	2 × HDMI 2.0
USB	4 × USB 3.2 Gen 2 Type-A
Audio connection	1 × microphone-in/headphone-out combo
Card reader	1
Audio chipset	Realtek ALC256
Audio type	2.1-channel HD audio

Included items

In the box	AC adaptor; Power cord; Quick guide; VESA mount kit

Source review note: Supplied wireless wording differs: the concise product description says Wi-Fi 6, while the detailed specification lists Wi-Fi 6E plus Bluetooth 5.3. Confirm the approved Wi-Fi description before publication.

SKU	SYM-CUBI61MXXXBAUC7
Barcode #	4711377235372
Brand	MSI
