StarTech.com SFP10GPC2M

2m MSA-compliant 10GbE SFP+ passive Twinax DAC

A 2m / 6.6ft MSA-compliant passive copper Twinax direct-attach cable with SFP+ latching plugs at both ends for short-reach 10GbE network links.

2m / 6.6ft10GbEPassive Twinax DACLifetime warranty

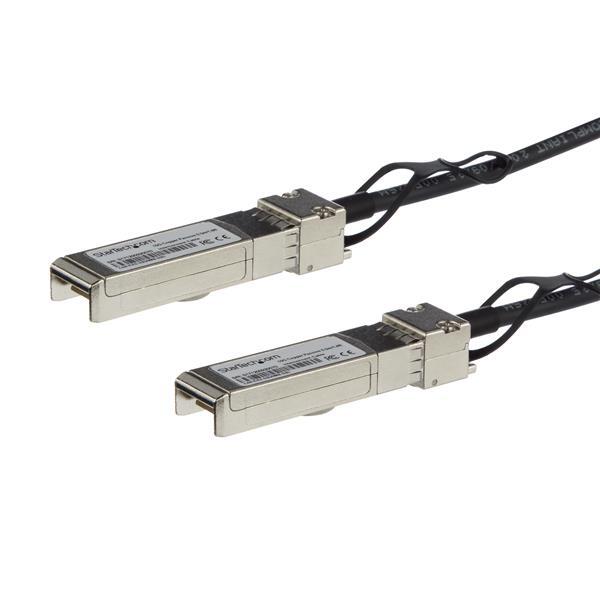

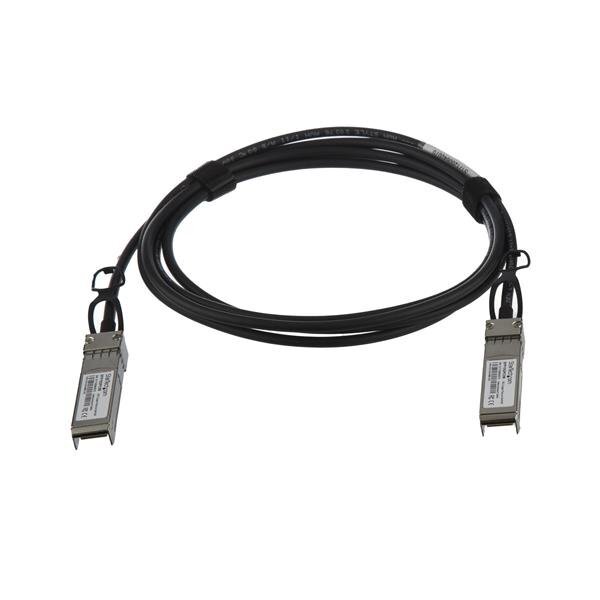

StarTech SFP10GPC2M MSA-compliant passive SFP+ Twinax DAC cable

Key capabilities

MSA-compliant SFP+ DAC

Designed and tested for compatible MSA SFP+ ports in 10G network deployments.

Passive copper Twinax

A low-latency, cost-effective alternative to separate optical transceivers and fibre.

SFP+ latching plugs

Integrated SFP+ connectors at both ends simplify direct switch/server links.

Low module power

The exact technical table lists less than 0.1W power consumption per end.

What to know before buying

This is a passive direct-attach copper cable, not an optical module pair. Confirm both endpoints accept MSA-compliant passive SFP+ DAC cables and that the fixed cable length suits the rack layout.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SFP10GPC2M used for?

Short-reach 10GbE direct connections between compatible SFP+ ports.

What network speed does it support?

10Gbps.

What cable type is it?

Passive copper Twinax direct-attach cable.

What connectors are fitted?

SFP+ latching plugs at both ends.

What is the cable length?

2m / 6.6ft

What impedance is listed?

100 Ohm.

What power consumption is listed?

Less than 0.1W per end.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SFP10GPC2M)

Features and highlights

MSA-compliant SFP+ DAC

Designed and tested for compatible MSA SFP+ ports in 10G network deployments.

Passive copper Twinax

A low-latency, cost-effective alternative to separate optical transceivers and fibre.

SFP+ latching plugs

Integrated SFP+ connectors at both ends simplify direct switch/server links.

Low module power

The exact technical table lists less than 0.1W power consumption per end.

2m / 6.6ft
10GbE
Passive Twinax DAC
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SFP10GPC2M.

Warranty Information

Warranty	Lifetime

Hardware

Cable Jacket Type	PVC - Polyvinyl Chloride
Compatible Brand	MSA Compliant

Performance

Compatible Networks	10 Gbps
Impedance	100 Ohm
Maximum Data Transfer Rate	10Gbps

Connector(s)

Connector A	1 - SFP+ Latching Plug
Connector B	1 - SFP+ Latching Plug

Power

Power Consumption (In Watts)	< 0.1 W (per end)

Environmental

Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 80°C (-40°F to 158°F)

Physical Characteristics

Cable Length	6.6 ft [2 m]
Color	Black
Product Height	0.5 in [1.2 cm]
Product Length	6.6 ft [2 m]
Product Width	0.6 in [14 mm]
Weight of Product	3.5 oz [100 g]
Wire Gauge	30 AWG

Packaging Information

Package Height	0.2 in [4 mm]
Package Length	7.9 in [20 cm]
Package Width	8.6 in [21.8 cm]
Shipping (Package) Weight	3.5 oz [100 g]

What's in the Box

Included in Package	1 - SFP+ cable
Cable Type	Passive Copper Cable

SKU	SFP10GPC2M
Barcode #	65030874724
Brand	STARTECH
Shipping Weight	0.1100kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.190m
Shipping Cubic	0.000950000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
