StarTech.com · JD097CST

StarTech JD097CST HPE JD097C-Compatible 3m SFP+ Direct Attach Cable

HPE JD097C-Compatible 3m SFP+ Direct Attach Cable for professional networking or ergonomic workstation applications.

Quick answer: JD097CST creates a fixed 3m 10Gbps SFP+ direct connection between compatible network devices.

Best forShort in-rack 10GbE connections between compatible HPE switches, servers and storage devices.

Check before orderingConfirm both hosts accept HPE JD097C-compatible SFP+ DACs and that the fixed 3m length suits the installation.

Answers before you buy

Frequently asked questions

What is StarTech JD097CST?

It is a passive SFP+ direct attach copper cable that creates a fixed 3m 10Gbps SFP+ direct connection between compatible network devices.

Which connections or mounting method are provided?

SFP+ latching plug at each end

What performance is specified?

10Gbps passive Twinax direct attach; fixed 3m length; 100-ohm impedance

Does it require power?

Less than 0.1W per cable end

Does JD097CST contain both SFP+ ends?

Yes. It is a complete 3m DAC with an integrated SFP+ latching plug at each end.

How much power does it use?

The listed power consumption is less than 0.1W at each cable end.

What should be checked before ordering?

Confirm both hosts accept HPE JD097C-compatible SFP+ DACs and that the fixed 3m length suits the installation.

What warranty applies?

JD097CST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturer's terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(JD097CST)

Features & highlights

Why choose JD097CST?

?Purpose-built designSFP+ latching plug at each end

?Specified performance10Gbps passive Twinax direct attach; fixed 3m length; 100-ohm impedance

?Power arrangementLess than 0.1W per cable end

?Construction and deployment30AWG passive Twinax cable with black PVC jacket

?Key capabilityProvides a complete 10GbE direct connection with integrated SFP+ ends.

?Installation advantageHot-swappable and MSA compliant for compatible network equipment.

Compatibility reminder: Confirm both hosts accept HPE JD097C-compatible SFP+ DACs and that the fixed 3m length suits the installation.

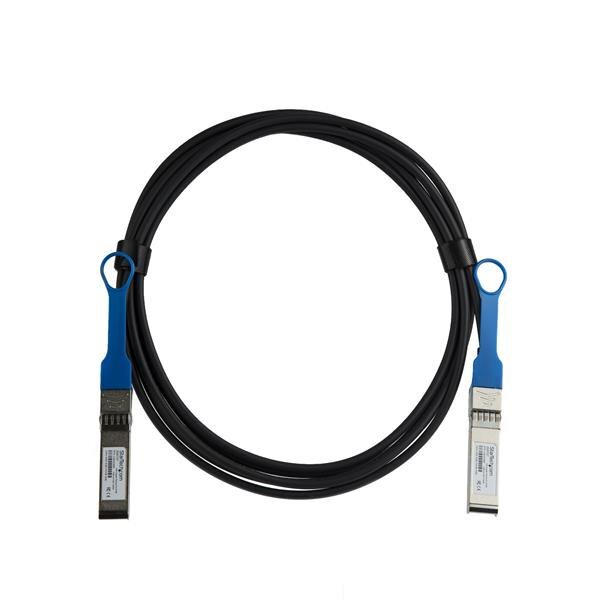

StarTech JD097CST HPE JD097C-Compatible 3m SFP+ Direct Attach Cable product image

Technical specifications

JD097CST specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Compatible Brand	HPE
Cable Type	Passive Twinax direct attach
Jacket	PVC
Wire Gauge	30AWG
Impedance	100 ohms
Performance
Maximum Data Transfer Rate	10Gbps
Power Consumption	<0.1W per end
Hot-Swappable	Yes
MSA Compliant	Yes
Connectors
Connector A	SFP+ latching plug
Connector B	SFP+ latching plug
Environmental
Operating Temperature	0°C to 70°C
Physical Characteristics
Cable Length	3m
Weight	130g
Colour	Black
What's in the Box
Included	1 × 3m SFP+ direct attach cable

Sources: https://www.devicedeal.com.au/startech-hp-jd097c-compatible-sfp-direct-attach-tw and https://www.startech.com/

SKU	JD097CST
Barcode #	65030875035
Brand	Startech
Shipping Weight	0.1300kg
Shipping Width	0.002m
Shipping Height	0.019m
Shipping Length	0.018m
