Dell EMC OEM compatibility
Designed, programmed and tested as a replacement for Dell EMC DAC-SFP-10G-3M.
StarTech Dell EMC DAC-SFP-10G-3M Compatible SFP+ DAC Twinax Cable 3 m - DACSFP10G3M
Model # DACSFP10G3M
-
SKU: DACSFP10G3M
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · DACSFP10G3M

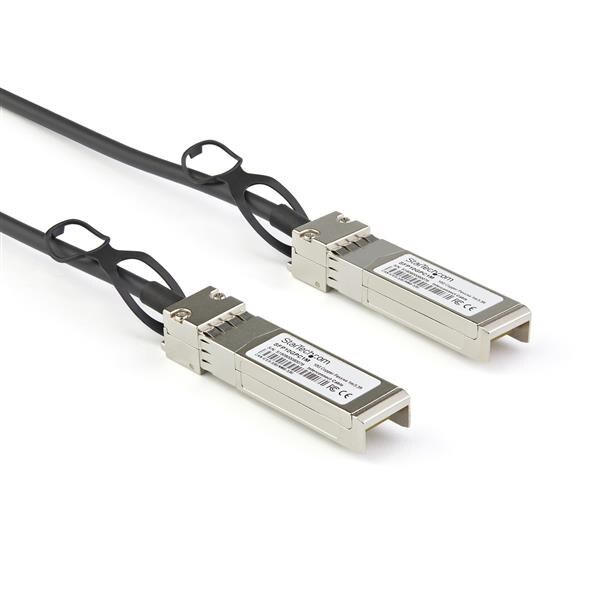

StarTech 3m Dell EMC-Compatible 10GbE SFP+ DAC Cable
Create a short-distance 10GbE link between compatible SFP+ equipment with a 3m passive Twinax direct-attach copper cable coded for Dell EMC DAC-SFP-10G-3M.
3m10GbpsPassive TwinaxLifetime warranty
Product overview
DACSFP10G3M is programmed and tested for Dell EMC compatibility and is also MSA compliant. The hot-swappable passive cable connects two SFP+ ports without separate optical transceivers.
Features that matter
10GbE passive copper link
Two integrated SFP+ connectors support full-duplex 10Gbps short-distance links with low power consumption.
Hot-swappable design
Install or replace the cable in equipment that supports SFP+ hot swapping, following the host manufacturers procedure.
MSA-compliant operation
Can also work with compatible uncoded MSA-compliant SFP+ equipment, subject to the host vendors acceptance policy.
What to know before ordering
Exact OEM coding
For a coded Dell EMC replacement, confirm DAC-SFP-10G-3M and the 3m length match the equipment requirement.
Not an optical cable
This is a fixed passive Twinax copper DAC with integrated SFP+ ends; separate transceivers cannot be fitted.
Host acceptance
MSA compliance does not guarantee every third-party switch accepts uncoded modules. Verify the exact host configuration before purchase.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech DACSFP10G3M?
DACSFP10G3M is a 3m passive 10Gbps SFP+ direct-attach copper cable compatible with Dell EMC DAC-SFP-10G-3M.
What Dell EMC part does it replace?
It is coded and tested as a compatible replacement for Dell EMC DAC-SFP-10G-3M.
What is the maximum data rate?
The verified maximum data rate is 10Gbps full duplex.
Is it passive or active?
It is a passive Twinax copper direct-attach cable with two integrated SFP+ connectors.
Is it hot-swappable?
Yes, when used in compatible equipment that supports SFP+ hot swapping and the host procedure is followed.
Will it work in every MSA-compliant switch?
Not necessarily. It is MSA compliant, but host vendors may enforce their own coding or compatibility policies.
What is included in the package?
The package contains one 3m SFP+ direct-attach copper cable.
What warranty applies in Australia?
DACSFP10G3M is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(DACSFP10G3M)
Features and highlights
DACSFP10G3M key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Dell EMC OEM compatibility
Designed, programmed and tested as a replacement for Dell EMC DAC-SFP-10G-3M.
10GbE passive copper link
Two integrated SFP+ connectors support full-duplex 10Gbps short-distance links with low power consumption.
Hot-swappable design
Install or replace the cable in equipment that supports SFP+ hot swapping, following the host manufacturers procedure.
MSA-compliant operation
Can also work with compatible uncoded MSA-compliant SFP+ equipment, subject to the host vendors acceptance policy.
Key highlights
- 3m passive Twinax cable
- 2 x SFP+ 10Gbps
- 30 AWG · 100?
- Hot-swappable · DDM listed
- Official lifetime StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech DACSFP10G3M
Verified specifications and package details for the exact model.
General and Compatibility
Product type
Passive SFP+ direct-attach copper cable
Compatible brand
Dell EMC
OEM part number
DAC-SFP-10G-3M
MSA compliant
Yes
Warranty
Lifetime
UPC
065030883252
Performance and Electrical
Maximum data rate
10Gbps
Operating mode
Full duplex
Cable medium
Copper Twinax
Impedance
100?
Wire gauge
30 AWG
Hot swap
Yes
Digital diagnostics monitoring
Yes
Output voltage
3.3V DC
Power consumption
Less than 1W
MTBF
61,728,395 hours
Physical and Environmental
Cable length
3m (3000mm)
Product width / height
14 x 12mm
Published product weight
150g
Operating temperature
070°C
Storage temperature
-4085°C
Humidity
085% RH
Packaging and Source Note
Package dimensions (W x D x H)
189 x 199 x 18mm
Published shipping weight
134g
Source note
The current official shipping-weight field (134g) is lower than its product-weight field (150g); both values are retained as published.
Package contents
1 x SFP+ cable
Connectors
Connector 1
SFP+ 10Gbps
Connector 2
SFP+ 10Gbps
| SKU | DACSFP10G3M |
| Barcode # | 65030883252 |
| Brand | Startech |
| Shipping Weight | 0.1300kg |
| Shipping Width | 0.002m |
| Shipping Height | 0.019m |
| Shipping Length | 0.018m |
Official StarTech.com manufacturer warranty
Lifetime
This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech DACSFP10G3M.
