2 m Red slim CAT6 Ethernet cable for high-density network installs

StarTech N6PAT200CMRDS is a 2 m red slim CAT6 patch cable for reliable Ethernet and PoE connections where cable space, flexibility and airflow matter. Its 28 AWG pure-copper construction is 36% thinner than standard CAT6 network cables and uses snagless RJ45 connectors for easier routing.

CAT6 250 MHz2 mRedUp to 10GbpsUp to 100W PoE++Lifetime warranty

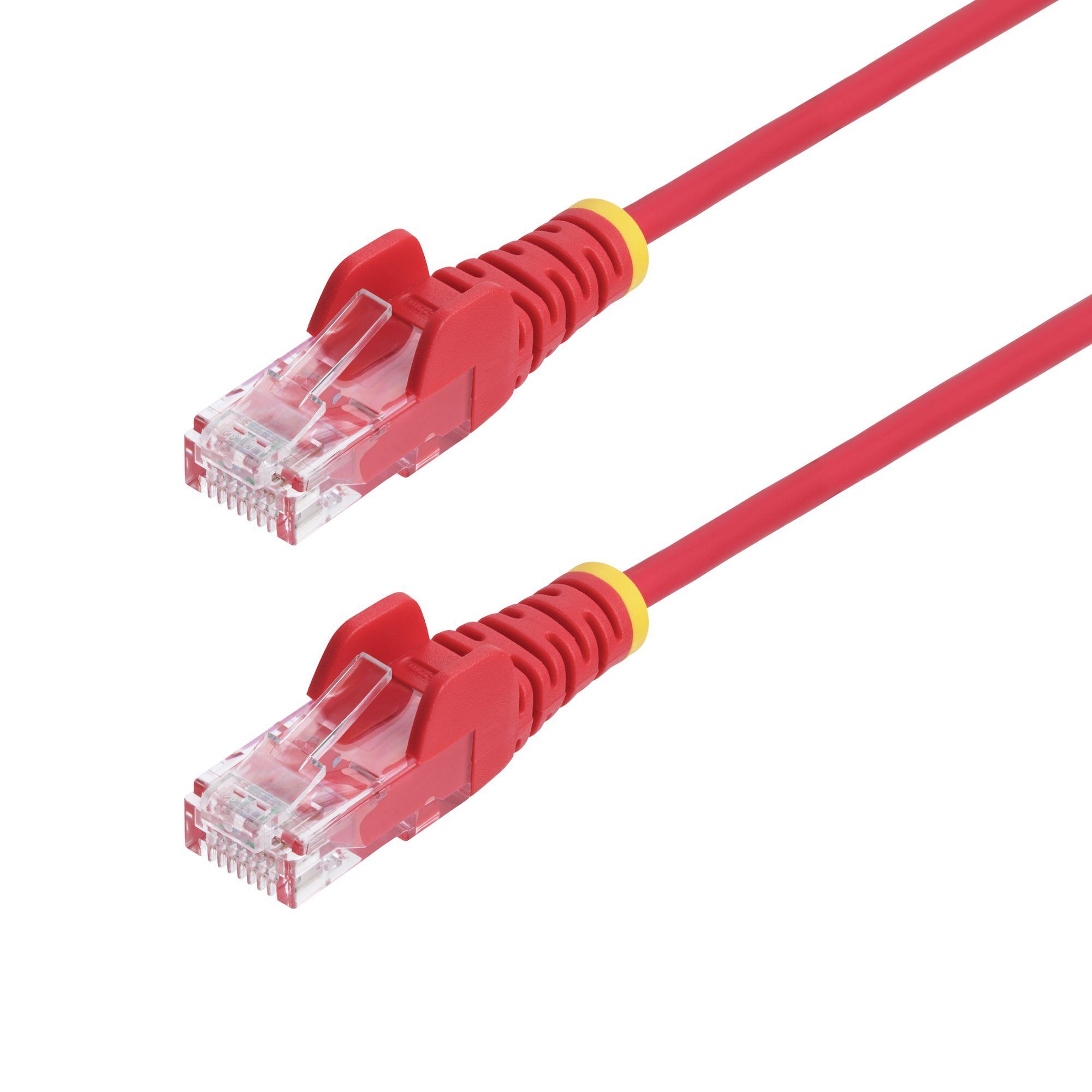

StarTech N6PAT200CMRDS Red 2 m slim CAT6 Ethernet cable

Key capabilities

36% slimmer cable profile

The slim CAT6 design improves flexibility and can help preserve airflow in crowded racks, cabinets and patch-panel installations.

CAT6 performance

Rated for CAT6 operation up to 250 MHz and data rates up to 10Gbps when the connected equipment and end-to-end channel support those speeds.

Up to 100W PoE++

Supports compatible IEEE 802.3bt Type 4 PoE applications, allowing data and power to be carried over the same network cable.

Pure copper, LSZH construction

Uses 28 AWG stranded pure bare copper conductors, 4-pair UTP wiring, 50-micron gold-plated RJ45 contacts and a Low Smoke Zero Halogen jacket.

What to know before buying

Both ends use male RJ45 connectors with snagless strain relief.
The cable is unshielded 4-pair UTP, not a shielded network cable.
Maximum network speed depends on the full Ethernet channel and connected equipment.
PoE power depends on compatible PoE sourcing equipment, the powered device and available power budget.

Australian version and official warranty

This StarTech N6PAT200CMRDS is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech N6PAT200CMRDS?

The StarTech N6PAT200CMRDS is a 2 m red slim CAT6 Ethernet patch cable with snagless RJ45 connectors, designed for flexible routing in dense network installations.

What network performance does the N6PAT200CMRDS support?

The N6PAT200CMRDS is rated for CAT6 operation up to 250 MHz and supports data rates up to 10Gbps when the connected equipment and end-to-end network channel support those speeds.

Does the N6PAT200CMRDS support Power over Ethernet?

Yes. The N6PAT200CMRDS supports up to 100W PoE++ with compatible IEEE 802.3bt Type 4 power sourcing equipment, powered devices and an appropriate power budget.

What connectors are on the N6PAT200CMRDS?

The N6PAT200CMRDS has one male RJ45 connector at each end, with snagless strain relief to help protect the locking clips during installation and cable routing.

Why is the N6PAT200CMRDS described as a slim CAT6 cable?

The slim cable profile is 36% thinner than standard CAT6 network cables, helping improve routing flexibility and airflow in crowded racks, patch panels and cable-management spaces.

How is the N6PAT200CMRDS constructed?

The N6PAT200CMRDS uses 28 AWG stranded pure bare copper conductors in a 4-pair UTP construction, 50-micron gold-plated RJ45 contacts and a Low Smoke Zero Halogen (LSZH) jacket.

What is included with the N6PAT200CMRDS?

The package includes one 2 m red slim CAT6 Ethernet patch cable.

What warranty applies to the N6PAT200CMRDS in Australia?

The Australian version of the N6PAT200CMRDS supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility requirements and product assessment.

(N6PAT200CMRDS)

Features and highlights

36% slimmer CAT6 profile

More flexible routing and improved access in dense cable-management areas compared with standard CAT6 network cables.

Up to 10Gbps, 250 MHz

CAT6 performance for compatible Ethernet equipment and properly rated end-to-end network channels.

Up to 100W PoE++

Supports IEEE 802.3bt Type 4 PoE applications when used with compatible power sourcing and powered equipment.

Durable network construction

28 AWG pure bare copper, 4-pair UTP, 50-micron gold-plated RJ45 contacts, snagless strain relief and LSZH jacket.

Key highlights

StarTech model: N6PAT200CMRDS
Length: 2 m
Colour: Red
RJ45 male to RJ45 male
T568B wiring standard
Individually tested CAT6 patch-cable design

Warranty confidence

Official StarTech.com lifetime manufacturer warranty in Australia for the Australian version supplied by DeviceDeal, subject to StarTech.com warranty terms, eligibility requirements and product assessment.

StarTech N6PAT200CMRDS specifications

2 m red slim CAT6 Ethernet patch cable with LSZH jacket, snagless RJ45 connectors and 28 AWG pure-copper conductors.

StarTech N6PAT200CMRDS Red slim CAT6 Ethernet cable

General

Product ID

N6PAT200CMRDS

Product type

Slim CAT6 Ethernet patch cable

Colour

Red

Warranty

Lifetime

Performance and power

Cable rating

CAT6, 250 MHz

Maximum supported data rate

Up to 10Gbps with compatible CAT6 equipment and a properly rated end-to-end network channel

Power over Ethernet

Up to 100W PoE++ with compatible IEEE 802.3bt Type 4 equipment

Testing

Individually tested to support CAT6 signal-integrity requirements, including Near-End Crosstalk and Return Loss performance

Hardware and construction

Number of conductors

4 pair UTP

Wire gauge

28 AWG

Conductor type

Stranded pure bare copper

Connector plating

Gold, 50-micron contacts

Jacket / fire rating

Low Smoke Zero Halogen (LSZH)

Connector style

Snagless RJ45

Wiring standard

T568B

Interfaces and connectors

Connector A

1 x RJ45 male

Connector B

1 x RJ45 male

Physical

Cable length

2 m (2000 mm)

Cable outside diameter

3.6 mm

Product width

11.5 mm

Product height

13.7 mm

Product weight

41 g

Environmental

Operating temperature

10¡C to 60¡C

Storage temperature

-20¡C to 60¡C

Humidity

10% to 80% RH

Packaging and in the box

Package length

200 mm

Package width

220 mm

Package height

10 mm

Shipping weight

45.8 g

Included in the box

1 x 2 m slim CAT6 Ethernet cable, LSZH

Performance and PoE depend on the connected equipment and complete network channel.

SKU	N6PAT200CMRDS
Barcode #	65030918664
Brand	Startech
Shipping Weight	0.0400kg
Shipping Width	0.001m
Shipping Height	0.020m
Shipping Length	0.018m

Lifetime manufacturer warranty

Official StarTech.com warranty in Australia

StarTech N6PAT200CMRDS is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
