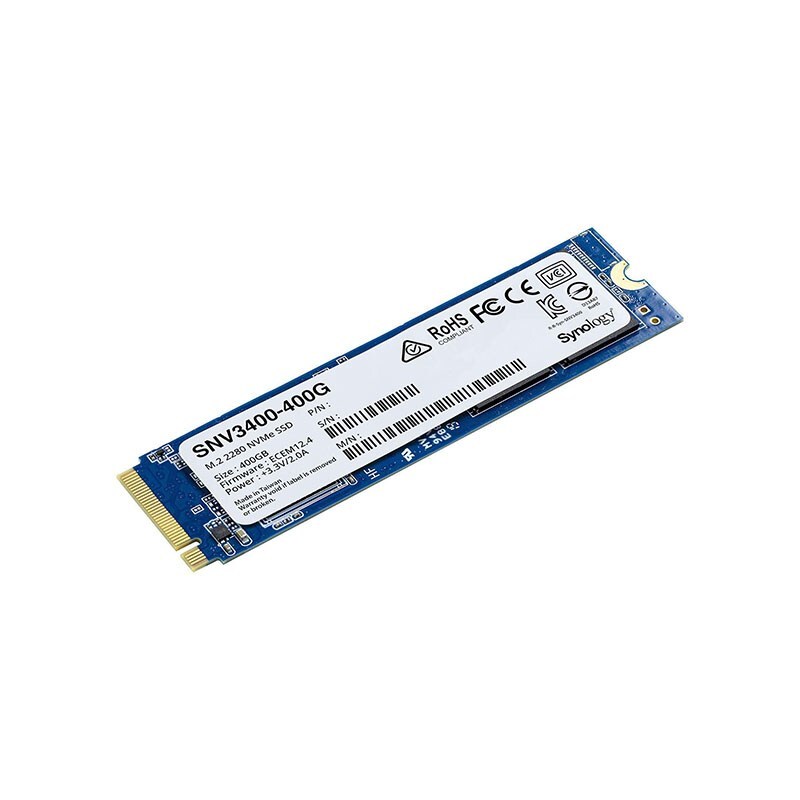

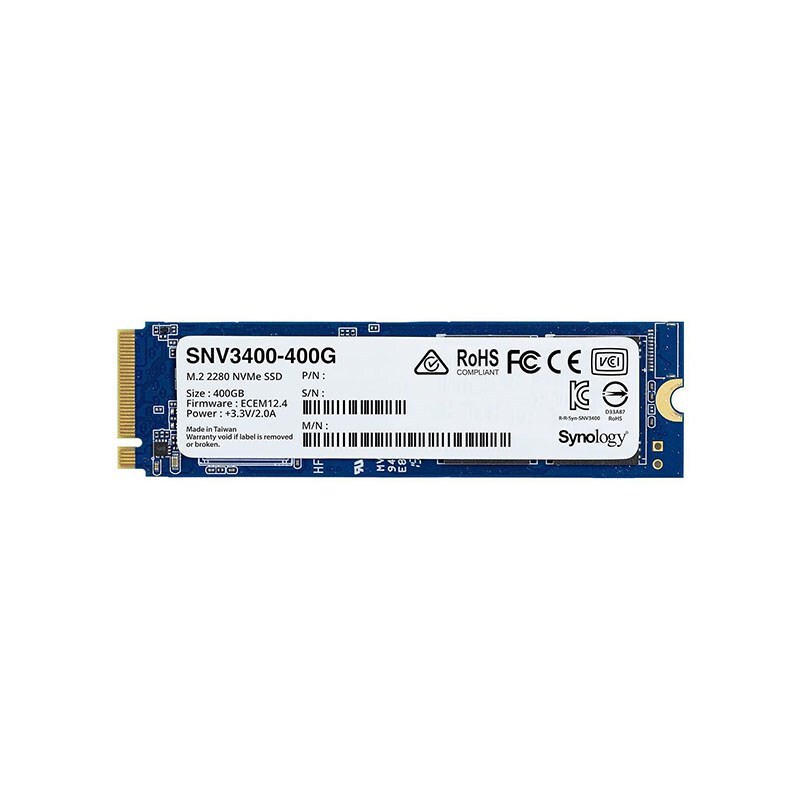

Synology SNV3400 400GB NVMe M.2 2280 Enterprise SSD
Model # SNV3400-400G
-
SKU: SNV3400-400G
- Pick Up Available
- Australian Warranty
- Checkout Securely
Synology SNV3400 400GB NVMe M.2 2280 Enterprise SSD - Form Factor: M.2 2280 - Interface: NVMe PCIe 3.0 x4 - Sequential Read Speeds: Up to 3,100MB/s, Sequential Write Speeds: Up to 550MB/s - Random Read Speed: Up to 205,000 IOPS, Random Read Speed: Up to 40,000 IOPS - TBW: 500TB - MTBF: 1,800,000 Hours - SNV3400-400G
(SNV3400-400G)
|
Hardware Specifications |
SNV3400-400G |
SNV3500-400G |
SNV3400-800G |
SNV3500-800G |
|
|---|---|---|---|---|---|
| General | Capacity | 400 GB | 400 GB | 800 GB | 800 GB |
| Form Factor | M.2 2280 | M.2 22110 | M.2 2280 | M.2 22110 | |
| Interface | NVMe PCIe 3.0 x4 | NVMe PCIe 3.0 x4 | NVMe PCIe 3.0 x4 | NVMe PCIe 3.0 x4 | |
| Performance | Sequential Read (128KB, QD32) | 3,100 MB/s | 3,100 MB/s | 3,100 MB/s | 3,100 MB/s |
| Sequential Write (128KB, QD32) | 550 MB/s | 550 MB/s | 1,000 MB/s | 1,000 MB/s | |
| Random Read (4KB, QD256) | 205,000 IOPS | 205,000 IOPS | 375,000 IOPS | 375,000 IOPS | |
| Random Write (4KB, QD256) | 40,000 IOPS | 40,000 IOPS | 70,000 IOPS | 70,000 IOPS | |
| Endurance and Reliability | Terabytes Written (TBW)* | 500 TB | 500 TB | 988 TB | 988 TB |
| Drive Writes Per Day (DWPD) | 0.68 | 0.68 | 0.68 | 0.68 | |
| Mean Time Between Failures (MTBF) | 1.8 million hours | 1.8 million hours | 1.8 million hours | 1.8 million hours | |
| Uncorrectable Bit Error Rate (UBER) | < 1 sector per 1017 bits read | < 1 sector per 1017 bits read | < 1 sector per 1017 bits read | < 1 sector per 1017 bits read | |
| Power Loss Protection | - | - | |||
| Warranty* | 5 Years | 5 Years | 5 Years | 5 Years | |
| Notes |
|
||||
| Power Consumption | Supply Voltage | 3.3V (± 5%) | 3.3V (± 5%) | 3.3V (± 5%) | 3.3V (± 5%) |
| Active Read (Typ.) | 3.2 W | 3.7 W | 4.5 W | 5.1 W | |
| Active Write (Typ.) | 3.2 W | 3.4 W | 4.5 W | 5.0 W | |
| Idle | 2.0 W | 2.0 W | 2.0 W | 2.0 W | |
| Notes | Power consumption may differ according to configurations and platforms. | ||||
| Temperature | Operating Temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | -40°C to 85°C (-40°F to 185°F) | -40°C to 85°C (-40°F to 185°F) | -40°C to 85°C (-40°F to 185°F) | |
| Others | Size (Height x Width x Depth) | 3.5 mm x 22 mm x 80 mm | 4.5 mm x 22 mm x 110 mm | 3.5 mm x 22 mm x 80 mm | 4.5 mm x 22 mm x 110 mm |
| Certification |
|
|
|
|
|
|
Compatibility |
|||||
| Applied Models | |||||
| SKU | SNV3400-400G |
| Barcode # | 846504003952 |
| Brand | SYNOLOGY |
| Shipping Weight | 0.3000kg |
Manufacturer Warranty: 5 Years Limited Warranty
