ZebraSKU ADP-RFD40-TC2X-2ERFD40 eConnex Adapter

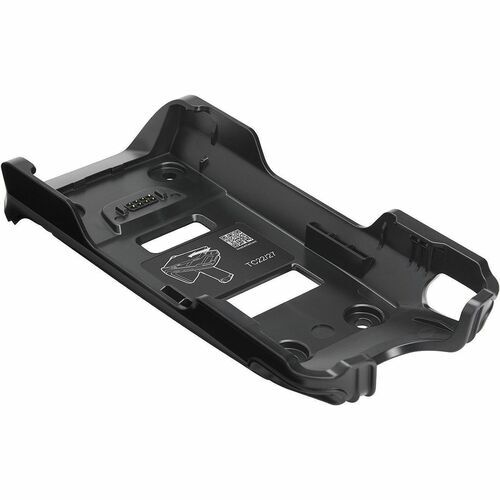

Zebra ADP-RFD40-TC2X-2E RFD40 eConnex Adapter for TC22/TC27 8-Pin Models

The Zebra ADP-RFD40-TC2X-2E mounts a compatible 8-pin Zebra TC22 or TC27 directly onto an RFD40 UHF RFID sled, providing a wired eConnex data and charging interface for the supported configuration.

Key features

Direct eConnex Link

Creates a direct wired interface between an eligible TC22/TC27 and the RFD40 sled for integrated RFID workflows.

Exact Device Fit

Designed for TC22 and TC27 configurations equipped with the required 8-pin rear I/O connector.

RFD40 Family Support

Zebra lists the adapter for RFD40 Standard, Premium and Premium Plus sled configurations.

Deployment Details Matter

The adapter supports standard or extended batteries and a hand strap, but it is not compatible with a protective boot or the TC22/TC27 cradles listed in the device guide.

What to know

Purpose-built for Zebra TC22 and TC27
Requires an 8-pin rear I/O configuration
Compatible with RFD40 Standard, Premium and Premium Plus sleds
Direct wired eConnex communication
Supports standard and extended-capacity device batteries
Compatible with an installed hand strap
Not compatible with a protective boot

Australian supply and warranty

The supplied warranty information for SKU ADP-RFD40-TC2X-2E lists a 1-year Zebra limited hardware warranty against defects in workmanship and materials, subject to Zebra's terms and applicable Australian consumer law. Claims are subject to the applicable terms and Australian consumer guarantees. Please retain your DeviceDeal tax invoice as proof of purchase.

Frequently asked questions

Which mobile computers fit the ADP-RFD40-TC2X-2E?

It is designed for Zebra TC22 and TC27 configurations fitted with the required 8-pin rear I/O connector.

Which RFD40 sled versions are supported?

Zebra lists this eConnex adapter for RFD40 Standard, Premium and Premium Plus sleds.

Does the adapter support direct communication?

Yes. It provides a direct wired eConnex connection between the compatible TC22/TC27 and RFD40 sled.

Can the TC22 or TC27 have a protective boot installed?

No. Zebra states this adapter is not compatible with a protective boot, although an installed hand strap is supported.

Does this adapter include a power supply?

No separate power supply is specified for the adapter. Charging depends on a compatible RFD40 charging arrangement, such as a supported universal cradle or the specified snap-on charge cable.

What warranty applies to the Zebra ADP-RFD40-TC2X-2E?

(ADP-RFD40-TC2X-2E)

Features and highlights

Zebra ADP-RFD40-TC2X-2E RFD40 eConnex Adapter for TC22/TC27 8-Pin Models

Direct eConnex Link

Creates a direct wired interface between an eligible TC22/TC27 and the RFD40 sled for integrated RFID workflows.

Exact Device Fit

Designed for TC22 and TC27 configurations equipped with the required 8-pin rear I/O connector.

RFD40 Family Support

Zebra lists the adapter for RFD40 Standard, Premium and Premium Plus sled configurations.

Deployment Details Matter

The adapter supports standard or extended batteries and a hand strap, but it is not compatible with a protective boot or the TC22/TC27 cradles listed in the device guide.

Key highlights

Purpose-built for Zebra TC22 and TC27
Requires an 8-pin rear I/O configuration
Compatible with RFD40 Standard, Premium and Premium Plus sleds
Direct wired eConnex communication
Supports standard and extended-capacity device batteries
Compatible with an installed hand strap
Not compatible with a protective boot
Genuine Zebra mounting adapter

Warranty confidence

Zebra ADP-RFD40-TC2X-2E

Technical specifications

Zebra ADP-RFD40-TC2X-2E RFD40 eConnex Adapter for TC22/TC27 8-Pin Models

Product

Brand	Zebra
Model	ADP-RFD40-TC2X-2E
SKU	ADP-RFD40-TC2X-2E
Product Type	RFD40 eConnex Adapter

Compatibility

Mobile Computers	Zebra TC22 and TC27 with 8-pin rear I/O connector
RFID Sleds	Zebra RFD40 Standard, RFD40 Premium and RFD40 Premium Plus
TC22/TC27 Device Cradles	Not compatible with the TC22/TC27 cradles specified in Zebra's device accessory guide

Interface

Connection	eConnex direct wired connection

Battery Fit

Supported Device Batteries	Standard and extended-capacity TC22/TC27 batteries

Accessory Fit

Hand Strap	Compatible
Protective Boot	Not compatible

Charging

Supported Arrangement	Can charge the TC22/TC27 through eConnex when the RFD40 is in a compatible universal/third-party cradle or uses snap-on charge cable CBL-RFD49-USB1-01

Package

Width	0.09 m
Length	0.18 m
Height	0.04 m
Shipping Weight	0.09 kg
Cubic Volume	0.000648 m³

Warranty

Warranty	1-year zebra limited hardware against defects in workmanship and materials subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia

SKU	ADP-RFD40-TC2X-2E
Brand	Zebra
Shipping Weight	0.0900kg
Shipping Width	0.090m
Shipping Height	0.040m
Shipping Length	0.180m
Shipping Cubic	0.000648000m3

Warranty and support

Supplied warranty information for ADP-RFD40-TC2X-2E: 1-year Zebra limited hardware warranty against defects in workmanship and materials, subject to Zebra's terms and applicable Australian consumer law.

Warranty claims are subject to the applicable terms and Australian consumer guarantees.
