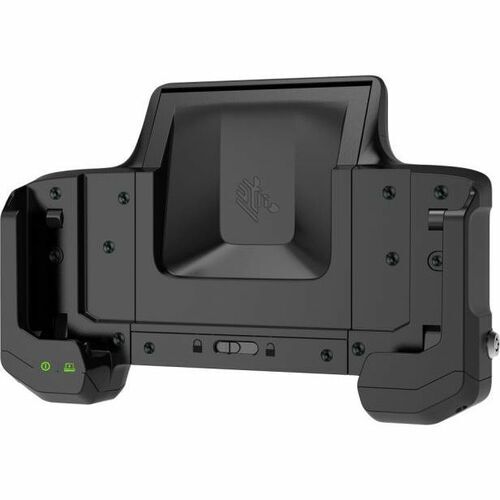

Zebra CRD-ET6X-VEHDK-CON-01 Rugged Vehicle Charging Dock

ZebraSKU CRD-ET6X-VEHDK-CON-01Rugged Vehicle Charging Dock

Zebra CRD-ET6X-VEHDK-CON-01 Vehicle Charging Dock for ET60/ET65/ET60W/ET65W - 2x USB-A, RS-232

The Zebra CRD-ET6X-VEHDK-CON-01 secures and charges compatible ET60, ET65, ET60W and ET65W rugged tablets in vehicle installations while adding two USB-A peripheral ports and one RS-232 serial connection.

Key features

Charge and Connect in Vehicles

The dock powers a compatible ET6 series tablet while two USB-A ports and one RS-232 port connect approved vehicle or workflow peripherals.

Rugged IP66 Design

Zebra specifies IP66 protection plus shock, vibration and thermal-shock testing for demanding warehouse, forklift and field-vehicle environments.

Fast, Secure Tablet Access

A quick-release retention system simplifies tablet removal, while the integrated security lock and supplied keys help control device access.

Flexible VESA Installation

Eight mounting holes support 75 x 75mm or 100 x 100mm VESA patterns. Select the correct Zebra power and mounting components for the vehicle voltage and deployment.

What to know

Compatible with ET60, ET65, ET60W and ET65W
Vehicle-mounted tablet charging
Two USB Type-A peripheral ports
One RS-232 serial port
IP66-rated dock design
Quick-release tablet retention with security lock
Heated pogo pins help resist corrosion and connection loss

Australian supply and warranty

This Australian version is supplied by DeviceDeal and is covered by the Zebra 1-year zebra limited hardware for powered vehicle dock accessories subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to Zebra warranty terms, eligibility requirements and product assessment.

Frequently asked questions

Which Zebra tablets fit the CRD-ET6X-VEHDK-CON-01?

Zebra lists the vehicle dock in the ET60, ET65, ET60W and ET65W accessory range.

Which peripheral ports are included?

The dock provides two USB Type-A ports and one RS-232 serial port.

Does the dock charge the installed tablet?

Yes. It is a vehicle charging dock, but the appropriate Zebra power solution must be selected for the vehicle and ordered separately.

Which mount pattern does the dock use?

The mounting holes support VESA 75 x 75mm and 100 x 100mm patterns.

Is this the antenna pass-through version?

No. CRD-ET6X-VEHDK-CON-01 is the charging and connectivity model. Zebra lists a different part number for the vehicle dock with external antenna pass-throughs.

What warranty applies to the Zebra CRD-ET6X-VEHDK-CON-01?

(CRD-ET6X-VEHDK-CON-01)

Features and highlights

Zebra CRD-ET6X-VEHDK-CON-01 Vehicle Charging Dock for ET60/ET65/ET60W/ET65W - 2x USB-A, RS-232

Charge and Connect in Vehicles

The dock powers a compatible ET6 series tablet while two USB-A ports and one RS-232 port connect approved vehicle or workflow peripherals.

Rugged IP66 Design

Zebra specifies IP66 protection plus shock, vibration and thermal-shock testing for demanding warehouse, forklift and field-vehicle environments.

Fast, Secure Tablet Access

A quick-release retention system simplifies tablet removal, while the integrated security lock and supplied keys help control device access.

Flexible VESA Installation

Eight mounting holes support 75 x 75mm or 100 x 100mm VESA patterns. Select the correct Zebra power and mounting components for the vehicle voltage and deployment.

Key highlights

Compatible with ET60, ET65, ET60W and ET65W
Vehicle-mounted tablet charging
Two USB Type-A peripheral ports
One RS-232 serial port
IP66-rated dock design
Quick-release tablet retention with security lock
Heated pogo pins help resist corrosion and connection loss
VESA 75 x 75mm and 100 x 100mm mounting patterns

Warranty confidence

1-year zebra limited hardware for powered vehicle dock accessories subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia.

Zebra CRD-ET6X-VEHDK-CON-01

Technical specifications

Zebra CRD-ET6X-VEHDK-CON-01 Vehicle Charging Dock for ET60/ET65/ET60W/ET65W - 2x USB-A, RS-232

Product

Brand	Zebra
Model	CRD-ET6X-VEHDK-CON-01
SKU	CRD-ET6X-VEHDK-CON-01
Product Type	Rugged Vehicle Charging Dock

Compatibility

Compatible Tablets	Zebra ET60, ET65, ET60W and ET65W

Docking

Functions	Tablet retention, charging, USB communication and RS-232 serial communication

Ports

USB	2 x USB Type-A
Serial	1 x RS-232

Power

Dock Power Input	12-15V DC
Power Source	Compatible Zebra vehicle DC/DC, 12V cigarette-lighter or AC power solution required; select for the installation and order separately

Ruggedness

Ingress Protection	IP66
Testing	Shock, vibration and thermal-shock tested

Connection

Tablet Interface	Heated pogo pins

Security

Retention	Quick release with security lock

Mounting

VESA Patterns	75 x 75 mm and 100 x 100 mm

Included

Package Contents	Vehicle dock, keys, mounting hardware, four bolts, four washers, four lock nuts and cable ties

Package

Width	0.231 m
Length	0.332 m
Height	0.101 m
Shipping Weight	1.57 kg
Cubic Volume	0.007746 m³

Warranty

Warranty	1-year zebra limited hardware for powered vehicle dock accessories subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia

SKU	CRD-ET6X-VEHDK-CON-01
Brand	Zebra
Shipping Weight	1.5700kg
Shipping Width	0.231m
Shipping Height	0.101m
Shipping Length	0.332m
Shipping Cubic	0.007746000m3
