The tandem of D-Link’s new Enterprise Gigabit switches and DPS Series of Modular Redundant Power Supplies (RPSU) enables today’s business networks with unmatched flexibility, performance, scalability, and availability.

The modular design of the DPS Series of RPSUs enables companies to selectively and cost effectively deploy higher availability configurations precisely when and where they are needed most. When paired with a supported D-Link switch, the DPS-200, DPS-300 and DPS-500 provide uninterrupted fail-over, in the unlikely event of a mechanical power supply failure. The system integration between D-Link’s Managed Layer 2 switches, Layer 3 switches, and RPSU system, provide customers with the fundamental building blocks to create economical and scalable networks without having to sacrifice network performance and availability.

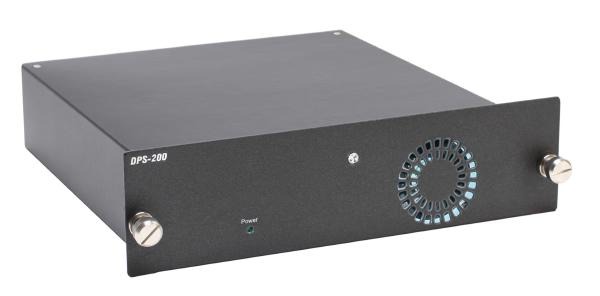

(DPS-200)

Controls/Indicators
Status Indicators
    • On: RPS good
    • Off: RPS failed
Reliability
MTBF50000 Hour
Miscellaneous
Additional Information
    • AC Input Voltage Rating: 100VAC to 240VAC
    • Leakage Current: 3.5mA max
    • Line Regulation: +/-2% (measured output load from +/-10% rated load)
    • Load Regulation: +/-5% (measured output load from 20% to 100% rated load)
    • Output Ripple & Noise: 120mV
    • Over Current Protection
    • Over Voltage Protection: 13.5V to 17V
    • AC Power Good Signal Required: +3.3V
    • Shock & Vibration: 10-55Hz
    • Insulation Resistance: Input to secondary >20Mohm 500VDC

    Hi-Pot Test:

    • Input to secondary: 3000VAC for 1 minute, 10mA
    • Input to P.E: 1500VAC for 1 minute, 10mA
Compatibility
    • DES-3326SR L3 stackable switch
    • DES-3350SR L3 stackable switch
    • DGS-3212SR L2/L3 stacking master
Certifications & Standards

    Safety Standards:

    • UL 60950 3rd Edition
    • TUV EN 60950
    • CE Mark (LVD)

    Safety Approvals:

    • CSA

    EMI:

    • FCC Class B
    • EN55022 (CISPR22) Class B
General Information
Product TypeRedundant Power Supply
Manufacturer Part NumberDPS-200
Manufacturer Website Addresshttp://www.dlink.com.au
ManufacturerD-Link Systems, Inc
Product ModelDPS-200
Product Name60W Redundant Power Supply
Brand NameD-Link
Physical Characteristics
Weight (Approximate)830 g
Height37 mm
Width76 mm
Depth127 mm
Power Description
Input Voltage264 V AC
Output Power60 W
Output Voltage12 V DC
Input Voltage Range90 V AC - 264 V AC
SKU DPS-200
Barcode # 790069254406
Brand D-LINK
Shipping Weight 2.3000kg
Shipping Width 0.270m
Shipping Height 0.350m
Shipping Length 0.100m
Shipping Cubic 0.009450000m3
Manufacturer Warranty
12 Months Limited Warranty
