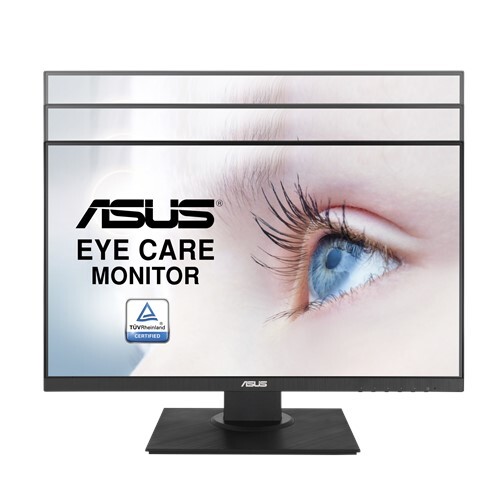

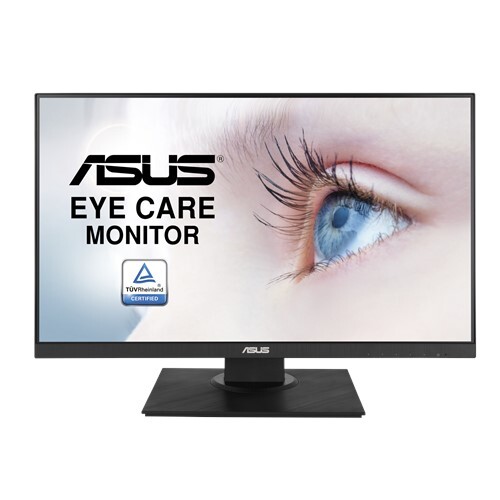

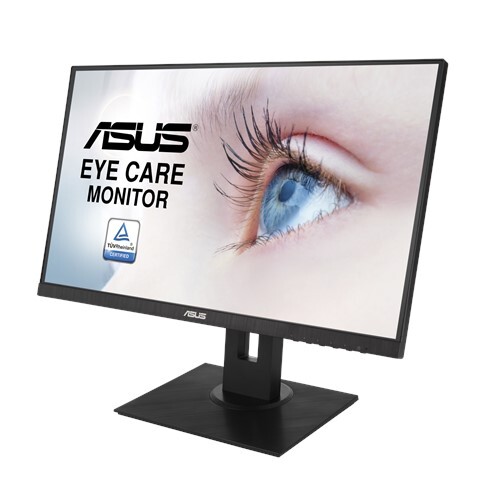

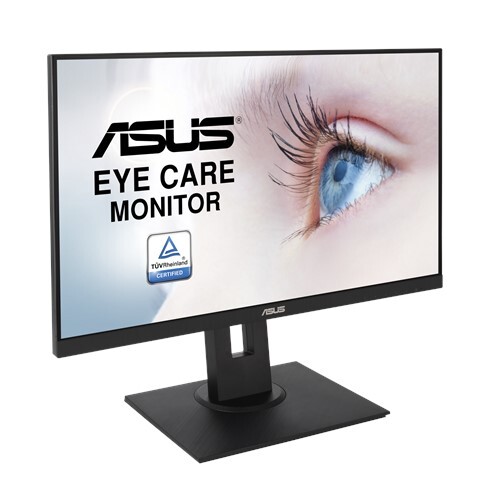

ASUS VA24DQLB 23.8" FHD 1920x1080 IPS, 5MS, 75HZ, 100MIL:1, DP, HDMI, SPK, H/ADJ, 3YR

(VA24DQLB)

ASUS VA24DQLB Eye Care Monitor – 23.8 inch, Full HD, IPS, Frameless, 75Hz, Adaptive-Sync, Low Blue Light, Flicker Free, Ergonomic Design, Wall Mountable

23.8-inch Full HD (1920x1080) LED backlight display with IPS 178° wide viewing angle panel
Up to 75Hz refresh rate with Adaptive-Sync technology to eliminate tracing and ensure crisp and clear video playback
Extensive connectivity including HDMI, DisplayPort, D-sub and USB hub
VESA wall-mountable to save on desktop space plus ergonomically-designed stands with full tilt, swivel, pivot, and height adjustment
ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience
Supports both Adaptive-Sync with NVIDIA GeForce* graphics cards and FreeSync with AMD Radeon graphics cards *Compatible with NVIDIA GeForce GTX 10 series, GTX 16 series, RTX 20 series and newer graphics cards

VA24DQLB

Display
Panel Size: Wide Screen 23.8"(60.5cm) 16:9
Panel Type : IPS
True Resolution : 1920x1080
Display Viewing Area(HxV) : 527.04 x 296.46 mm
Display Surface : Non-glare
Pixel Pitch : 0.2745 mm
Brightness(Max) : 250 cd/㎡
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR≧10) : 178°(H)/178°(V)
Display Colors : 16.7M (real 8 bit)
Flicker free : Yes
Refresh Rate(max) : 75Hz
Video Feature
Trace Free Technology : Yes
SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode)
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes (Alignment Grid/Paper/Photo Modes)
GamePlus(modes) : Yes (Crosshair/Timer/FPS Counter)
Low Blue Light : Yes
HDCP support : Yes
VividPixel : Yes
Adaptive-Sync supported :Yes
Audio Features
Stereo Speakers : 2W x 2 Stereo RMS
I/O Ports
Signal Input : HDMI, D-Sub, DisplayPort
PC Audio Input : 3.5mm Mini-Jack
Earphone jack : 3.5mm Mini-Jack
USB Port(s) : 1 x upstream, 2 x Type A port
Signal Frequency
Analog Signal Frequency : 30 ~83 KHz (H) /50 ~75 Hz(V)
Digital Signal Frequency : 30 ~85 KHz (H) /48 ~75 Hz(V)
Power Consumption
Power on (Typical) : <16.7W *
Power Saving Mode : < 0.3W
Power Off Mode : <0.3W
Voltage : 100-240V, 50 / 60Hz
Mechanical Design
Chassis Colors : Black

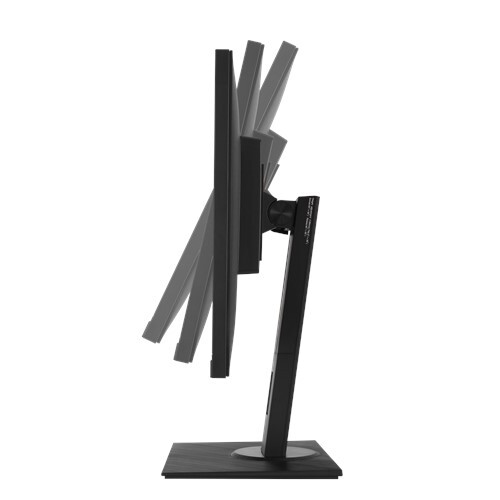

Tilt : -5°~+35°
Swivel : -90°~+90°

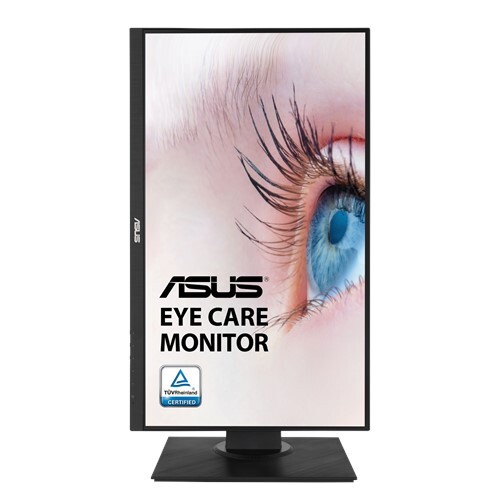

Pivot : -90°~+90°

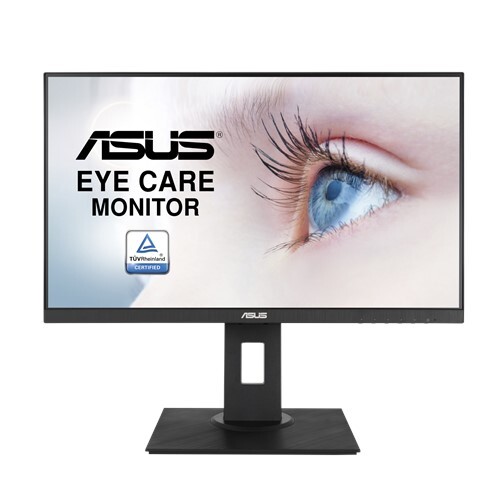

Height Adjustment : 0~130 mm

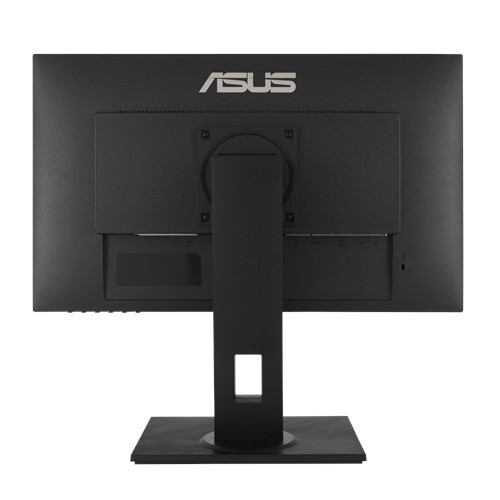

VESA Wall Mounting : 100x100mm
Frameless Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 540 x (350 – 480) x 211 mm
Phys. Dimension without Stand (WxHxD) : 540 x 325 x 55 mm　
Box Dimension (WxHxD) : 652 x 450 x 202 mm
Weight
Net Weight (Esti.) : 5.5 kg
Net Weight without Stand (For VESA Wall Mount) (Esti.) : 3.3 kg
Gross Weight (Esti.) : 7.8 kg
Accessories
VGA cable(Optional)
Audio cable(Optional)
Power cord
DisplayPort cable (Optional)
USB cable(Optional)
Quick start guide
HDMI cable (Optional)
Warranty Card
Compliance and Standards
BSMI, CB, CCC, CE, CU, FCC, ISO-9241-307, KCC, PSE, RoHS, TCO8.0, TUV-Ergo, TUV-GS, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), RCM, UL, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, Vietnam MEPS, Australia MEPS, PC recycle, JM, CEC
Note
* Adaptive-Sync only can be activated within “48Hz ~ 75Hz” via HDMI and DisplayPort ports

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
