View PDF Brochure4K conference video
Maximum resolution is listed at up to 4K and 30 fps.

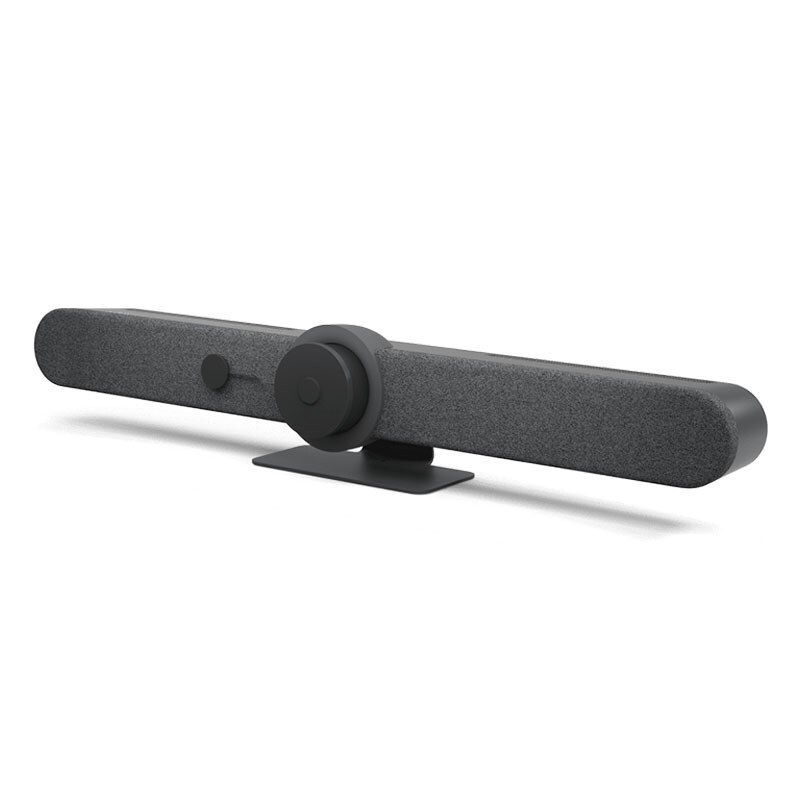

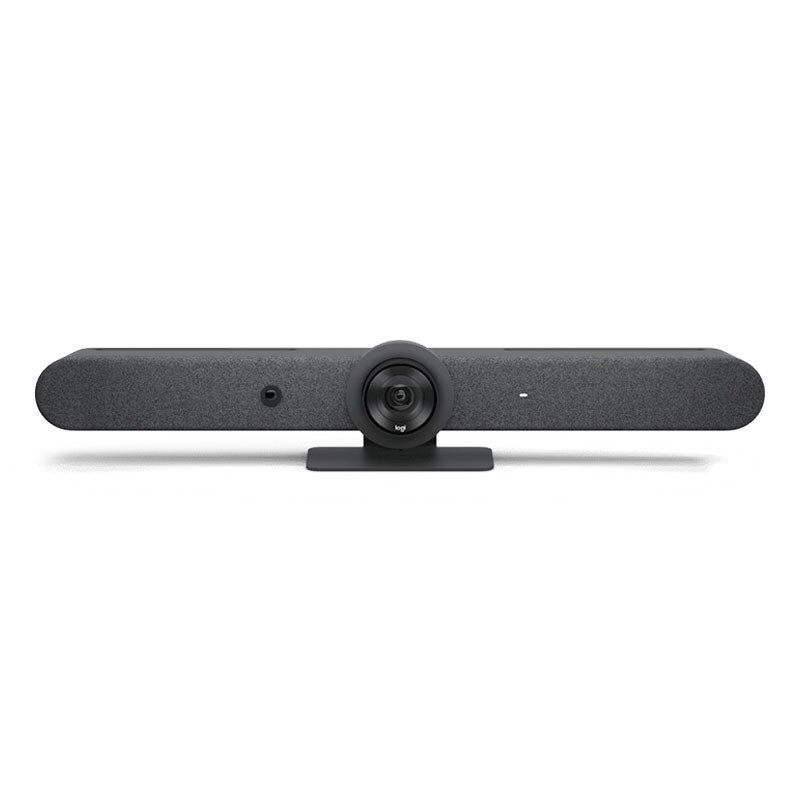

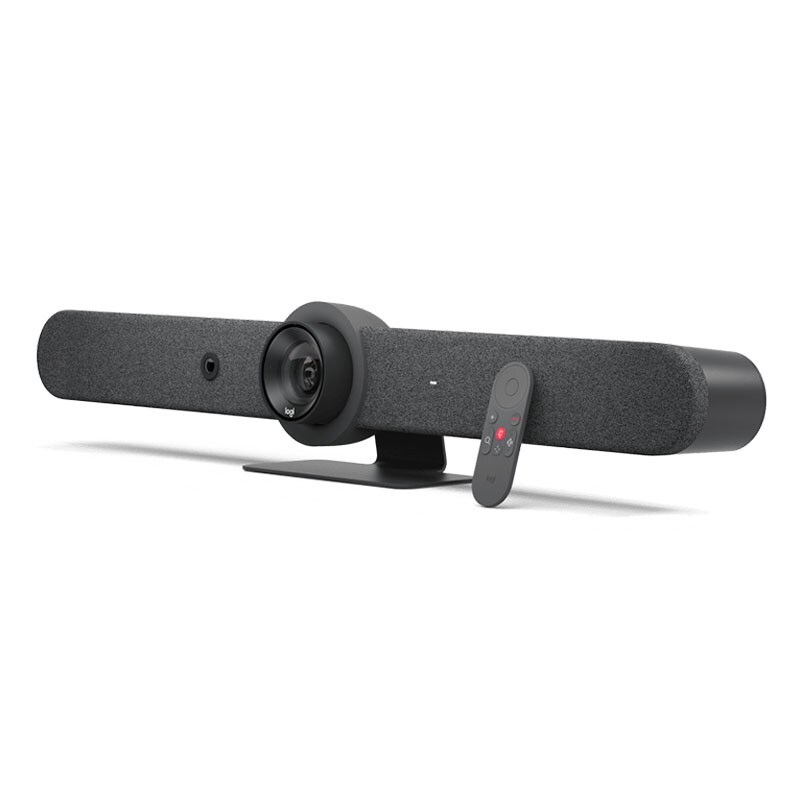

Logitech Rally Bar PTZ 4K Internet Camera for Video Conferencing - Graphite
Model # 960-001315
-
SKU: 960-001315
- Pick Up Available
- Australian Warranty
- Checkout Securely
Integrated 4K conference-room video bar
Logitech Rally Bar PTZ 4K Video Conferencing Camera Graphite 960-001315
The graphite Logitech Rally Bar combines up to 4K video at 30 fps, motorised pan and tilt, 15× HD zoom, dual 70 mm speaker drivers and a microphone pickup range of 4.5 metres.
Up to 4K at 30 fps15× HD zoomMotorised PTZ2-year warranty
Features and highlights
Motorised room framing
The camera supports motorised ±25-degree pan, ±15-degree tilt and 15× HD zoom.
Wide room coverage
Total coverage is listed at 132.1 degrees horizontal by 82.2 degrees vertical.
Integrated room audio
Two 70 mm speaker drivers and a 4.5-metre microphone pickup range are listed.
Specifications
| Model | Logitech Rally Bar |
|---|---|
| SKU | 960-001315 |
| Colour | Graphite |
| Maximum resolution | Up to 4K at 30 fps |
| Pan | Motorised ±25° |
| Tilt | Motorised ±15° |
| Zoom | 15× HD, comprising 5× optical and 3× digital |
| Room coverage | 132.1° horizontal × 82.2° vertical |
| Speaker drivers | 2 × 70 mm |
| Speaker output | 90 dB SPL at 1 W; 99 dB SPL at 8 W, both ±2 dB at 0.5 m |
| Speaker sensitivity | 90 ±3 dB SPL at 1 W and 0.5 m |
| Microphone frequency response | 90 Hz16 kHz |
| Microphone pickup range | 4.5 m |
| Warranty | 2-year limited warranty |
Frequently asked questions
What maximum video resolution is listed?
Up to 4K at 30 fps is listed.
What pan and tilt ranges are supported?
Motorised ±25-degree pan and ±15-degree tilt are listed.
What zoom is included?
15× HD zoom, comprising 5× optical and 3× digital, is listed.
What room coverage is listed?
132.1 degrees horizontal by 82.2 degrees vertical is listed.
What is the microphone pickup range?
The source lists 4.5 metres.
What warranty is listed?
A 2-year limited warranty is listed.
(960-001315)
Built-in Devices
| Microphone | Yes |
Lens
| Digital Zoom | 3x |
Network & Communication
| Wireless LAN | Yes |
Warranty
| Limited Warranty | 2 Year |
Display & Graphics
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
General Information
| Product Type | Video Conferencing Camera |
| Manufacturer Part Number | 960-001315 |
| Manufacturer Website Address | http://www.logitech.com/en-au |
| Manufacturer | Logitech |
| Product Model | Rally Bar |
| Product Name | Rally Bar Video Conferencing Camera |
| Product Line | Rally Bar |
| Brand Name | Logitech |
Interfaces/Ports
| Host Interface | USB 3.0 |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
Miscellaneous
| Package Contents |
|
| Device Supported | Smart TV |
| TV | |
| Monitor |
Physical Characteristics
| Weight (Approximate) | 7.08 kg |
| Height | 16.4 cm |
| Width | 91 cm |
| Depth | 13.1 cm |
| Product Color | Graphite |
| SKU | 960-001315 |
| Barcode # | 97855156877 |
| Brand | Logitech |
| Shipping Weight | 10.1200kg |
| Shipping Width | 0.022m |
| Shipping Height | 0.101m |
| Shipping Length | 0.023m |
Manufacturer Warranty: 2 Years Manufacturer Warranty
