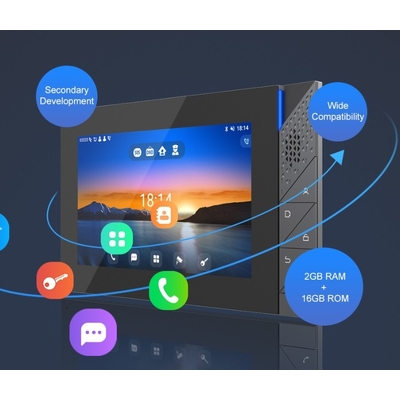

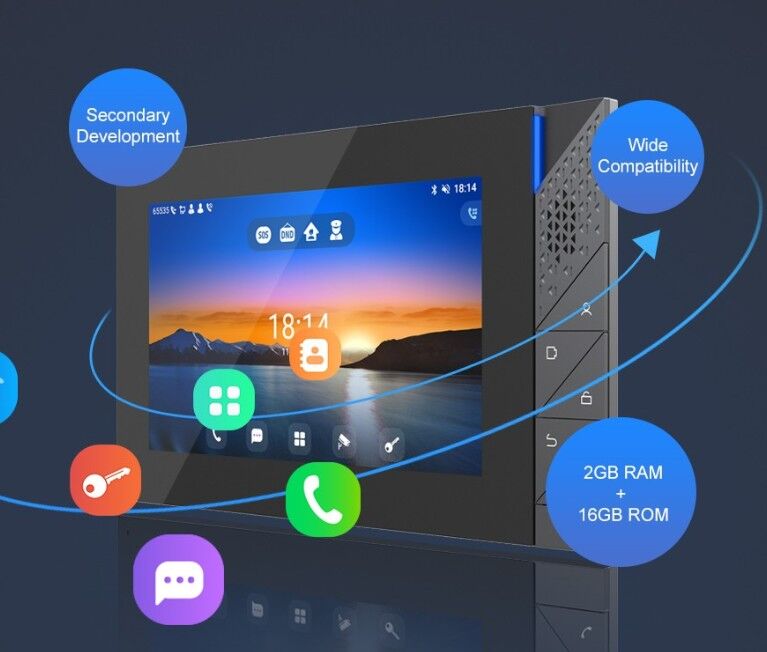

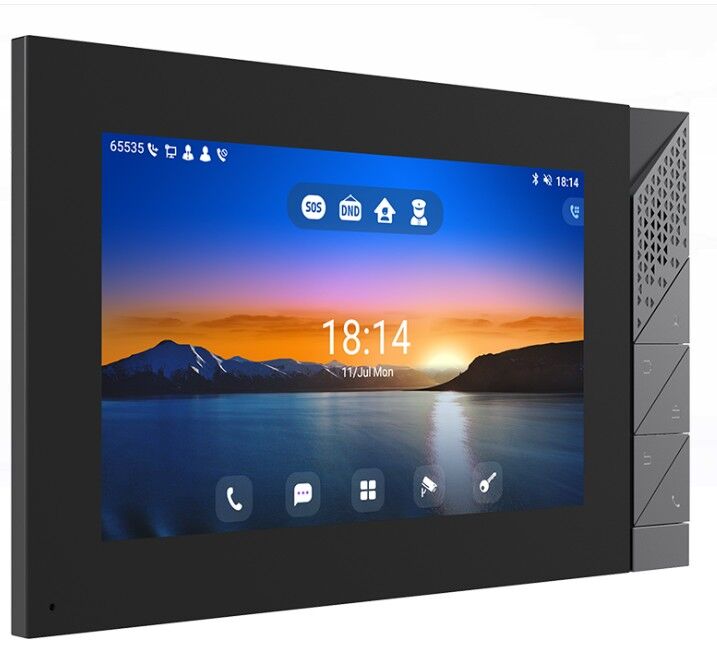

The Fanvil i55A is a SIP-based indoor station built around a 7-inch capacitive colour touchscreen with an intuitive interface. Running Android 9.0 with support for third-party apps and API secondary development, it delivers powerful capabilities such as remote door opening and real-time video monitoring of door phones and security devices. Acting as a management and answering assistant for communities, villas and office buildings, its aluminium-and-ABS housing, RS-485 interface, eight alarm inputs and two embedded relays make it a robust hub for residential and commercial intercom and security deployments.
(I55A)
- 7-inch (1024x600) capacitive colour touchscreen with intuitive UI
- Android 9.0 OS - supports third-party apps and secondary API development
- Real-time video from door phones via H.264 at up to 1080P resolution
- HD voice with built-in speaker and Acoustic Echo Cancellation (AEC)
- Built-in Bluetooth 5.0 and dual-band 2.4GHz/5GHz Wi-Fi
- RS-485 interface, 8 alarm inputs and 2 embedded relays for security integration
- Five physical buttons: Manager centre, Monitor, Unlock, Return/Hang-up, Answer
- PoE-powered with simple wall-mount installation
| Display | 7-inch (1024x600) capacitive colour touchscreen |
|---|---|
| Operating System | Android 9.0 (third-party apps, API development) |
| Memory | 2GB RAM / 16GB ROM |
| SIP Lines | 2 SIP lines |
| HD Voice | Yes - HD voice with AEC |
| Narrowband Codecs | G.711a/u, G.729AB, iLBC |
| Wideband Codecs | G.722, Opus; 16kHz wideband ADC/DAC |
| Video | Hardware H.264 decoding; up to 1080P |
| Ethernet | 1x RJ45, 10/100 Mbps |
| PoE | Yes (also DC12V/1A optional) |
| Wi-Fi | Dual-band 2.4GHz 802.11 b/g/n, 5GHz 802.11 a/n/ac; Miracast |
| Bluetooth | 5.0 (built-in) |
| USB | 1x Micro USB; TF (microSD) card slot |
| RS-485 | 1x interface |
| Alarm / IO | 8x alarm inputs, 1x doorbell input, 2x relay outputs (DC30V/2A) |
| Physical Buttons | 5 keys (Manager centre / Monitor / Unlock / Return-Hang up / Answer) |
| Power | DC12V/1A or PoE |
| Power Consumption | PoE 2.04-6.58W; adapter 1.48-5.53W |
| Housing | ABS and aluminium alloy |
| Dimensions | 217 x 124 x 21 mm |
| Mounting | Wall-mounted |
| Operating Temperature | -10 to 50 C; humidity 10-90% |
| SKU | I55A |
| Brand | FANVIL |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.124m |
| Shipping Height | 0.021m |
| Shipping Length | 0.217m |
