StarTech.com SFPH10GBC05M

0.5m Cisco SFP-H10GB-CU50CM compatible passive SFP+ DAC

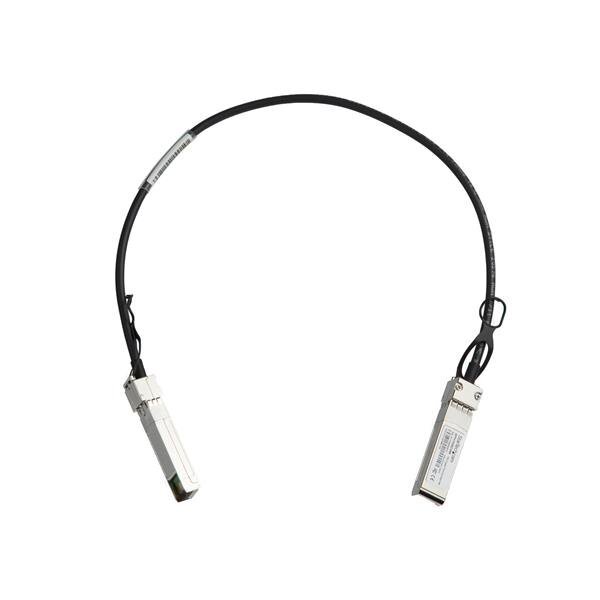

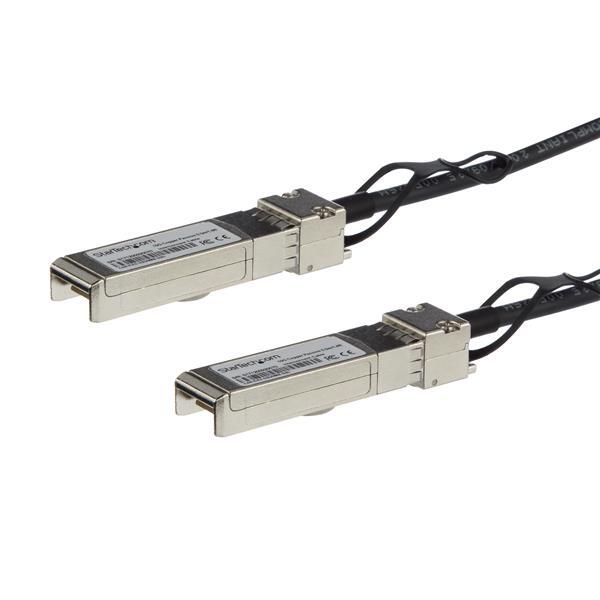

A 0.5m passive copper Twinax direct-attach cable with SFP+ latching plugs at both ends for short-reach 10GbE links on compatible Cisco equipment.

0.5m / 1.6ft10GbEPassive Twinax DACLifetime warranty

StarTech SFPH10GBC05M 0.5m Cisco-compatible passive SFP+ Twinax cable

Key capabilities

Cisco SFP-H10GB-CU50CM compatible

Designed, programmed and tested for compatible Cisco switches and routers.

Passive 10GbE Twinax

Supports short-reach 10GbE links without separate optical modules.

0.5m rack-friendly length

Ideal for nearby switch-to-server or switch-to-switch connections.

30 AWG and low power

The exact specification lists 30 AWG conductors and less than 0.5W per end.

What to know before buying

This is a passive copper direct-attach cable. Confirm both endpoints accept Cisco SFP-H10GB-CU50CM compatible passive SFP+ DACs.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SFPH10GBC05M compatible with?

Cisco SFP-H10GB-CU50CM compatible networking equipment.

What network speed does it support?

10Gbps.

How long is the cable?

0.5m / 1.6ft.

What cable type is it?

Passive copper Twinax direct-attach cable.

What connectors are fitted?

SFP+ latching plugs at both ends.

What wire gauge is listed?

30 AWG.

What power consumption is listed?

Less than 0.5W per end.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SFPH10GBC05M)

Features and highlights

Cisco SFP-H10GB-CU50CM compatible

Designed, programmed and tested for compatible Cisco switches and routers.

Passive 10GbE Twinax

Supports short-reach 10GbE links without separate optical modules.

0.5m rack-friendly length

Ideal for nearby switch-to-server or switch-to-switch connections.

30 AWG and low power

The exact specification lists 30 AWG conductors and less than 0.5W per end.

0.5m / 1.6ft
10GbE
Passive Twinax DAC
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SFPH10GBC05M.

Warranty Information

Warranty	Lifetime

Hardware

Cable Jacket Type	PVC - Polyvinyl Chloride
Compatible Brand	Cisco

Performance

Compatible Networks	10 Gbps
Impedance	100 Ohm
Maximum Data Transfer Rate	10Gbps

Connector(s)

Connector A	1 - SFP+ Latching Plug
Connector B	1 - SFP+ Latching Plug

Power

Power Consumption (In Watts)	< 0.5 W (per end)

Environmental

Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 80°C (-40°F to 158°F)

Physical Characteristics

Cable Length	1.6 ft [0.5 m]
Color	Black
Product Height	0.5 in [1.2 cm]
Product Length	19.7 in [50 cm]
Product Width	0.6 in [14 mm]
Weight of Product	2 oz [57 g]
Wire Gauge	30 AWG

Packaging Information

Package Height	0.6 in [15 mm]
Package Length	8.6 in [21.8 cm]
Package Width	7.8 in [19.7 cm]
Shipping (Package) Weight	2.3 oz [66 g]

What's in the Box

Included in Package	1 - SFP+ cable
Cable Type	Passive Copper Cable

SKU	SFPH10GBC05M
Barcode #	65030875530
Brand	STARTECH
Shipping Weight	0.0700kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.001000000m3
