StarTech.com · KBTRAYADJ2

StarTech KBTRAYADJ2 Spring-Assisted Adjustable Under-Desk Keyboard Tray

Spring-Assisted Adjustable Under-Desk Keyboard Tray for professional networking or ergonomic workstation applications.

Quick answer: KBTRAYADJ2 adds a 670 × 255mm keyboard platform with 340mm height adjustment and wide swivel below a desk.

Best forErgonomic workstations needing a retractable keyboard and mouse tray with generous height and swivel adjustment.

Check before orderingRequires at least 750 × 147mm of mounting area and a 20mm-thick desk; also confirm under-desk clearance and the 2kg load limit.

Answers before you buy

Frequently asked questions

What is StarTech KBTRAYADJ2?

It is a spring-assisted adjustable under-desk keyboard tray that adds a 670 × 255mm keyboard platform with 340mm height adjustment and wide swivel below a desk.

Which connections or mounting method are provided?

Not applicable; mechanical under-desk mounting

What performance is specified?

2kg capacity; 340mm height range; 470mm extension; +15°/-13° tilt; ±180° swivel

Does it require power?

No power required

What desk space is required for installation?

The source specifies a minimum 750 × 147mm mounting surface and a desk thickness of 20mm.

Can the mouse pad be placed on either side?

Yes. The included mouse pad can be positioned for left- or right-handed use.

What should be checked before ordering?

Requires at least 750 × 147mm of mounting area and a 20mm-thick desk; also confirm under-desk clearance and the 2kg load limit.

What warranty applies?

KBTRAYADJ2 carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturer's terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(KBTRAYADJ2)

Features & highlights

Why choose KBTRAYADJ2?

?Purpose-built designNot applicable; mechanical under-desk mounting

?Specified performance2kg capacity; 340mm height range; 470mm extension; +15°/-13° tilt; ±180° swivel

?Power arrangementNo power required

?Construction and deploymentBlack steel platform system with wrist rest, mouse pad, cable clips and mounting template

?Key capabilitySpring-assisted height adjustment locks at any position through a 340mm range.

?Installation advantageThe mouse pad can be installed for left- or right-handed use, and four cable clips organise peripherals.

Compatibility reminder: Requires at least 750 × 147mm of mounting area and a 20mm-thick desk; also confirm under-desk clearance and the 2kg load limit.

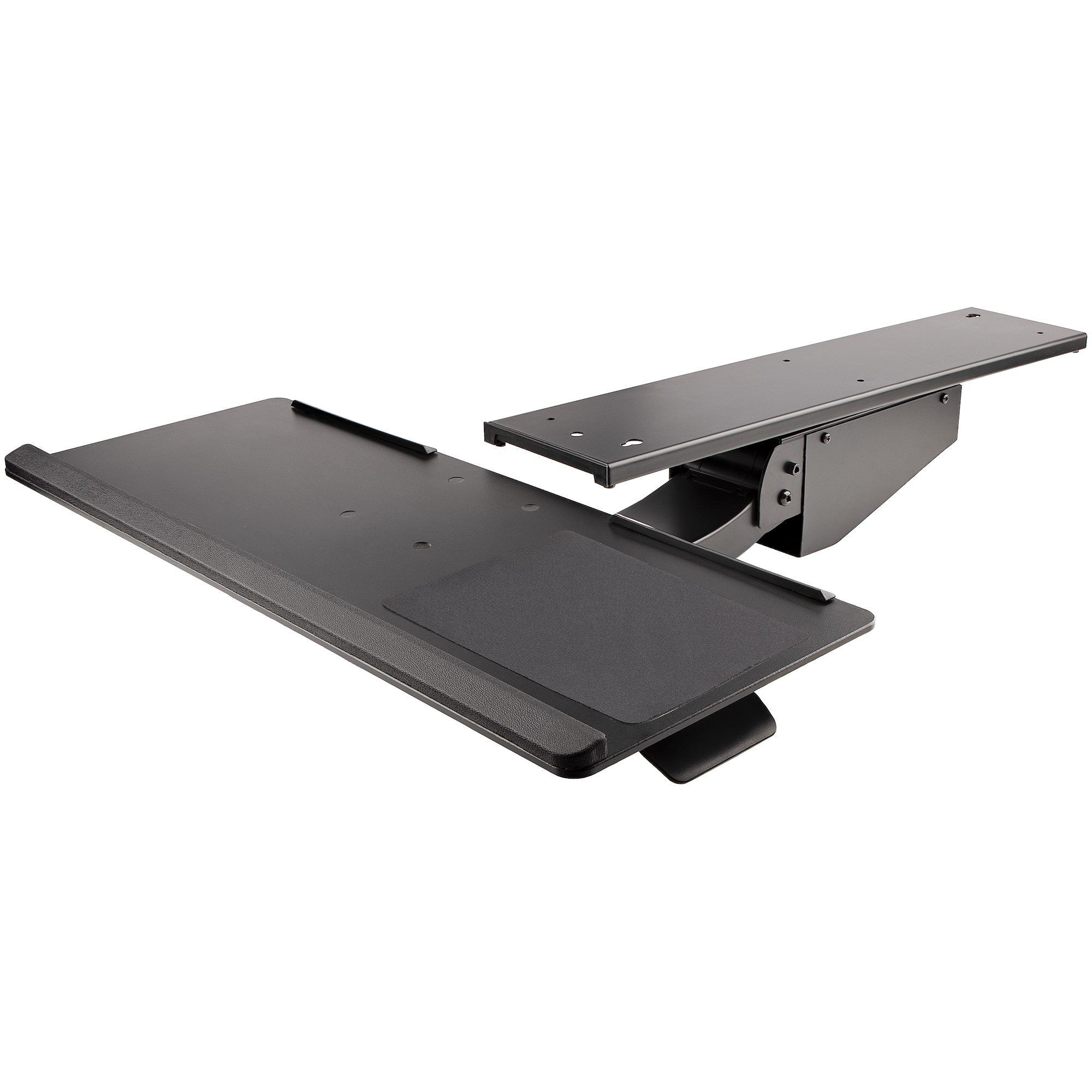

StarTech KBTRAYADJ2 Spring-Assisted Adjustable Under-Desk Keyboard Tray product image

Technical specifications

KBTRAYADJ2 specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Mounting Location	Under desk
Material	Steel
Colour	Black
Cable Management	Yes
Wrist Rest	670 × 28 × 12mm
Mouse Pad	Included; left- or right-side placement
Performance
Weight Capacity	2kg
Height Adjustment	340mm range; lockable at any position
Extension	470mm from desk edge
Tilt	+15° / -13°
Swivel	±180°
Installation Requirements
Minimum Mounting Surface	750 × 147mm
Desk Thickness	20mm
Physical Characteristics
Keyboard Platform	670 × 255mm
Overall Dimensions	670 × 710 × 145mm
Product Weight	8.6kg
Package Weight	9.6kg
What's in the Box
Included	Guide track; arm assembly; platform; 4 cable clips; mounting hardware; wrench; mouse pad; foam pad; mounting template
