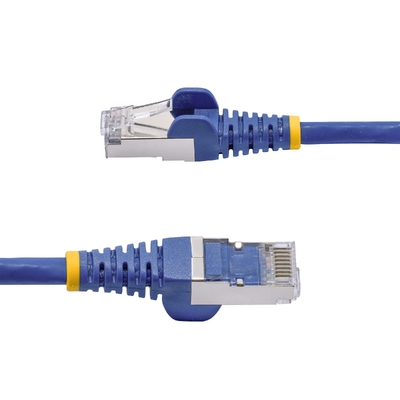

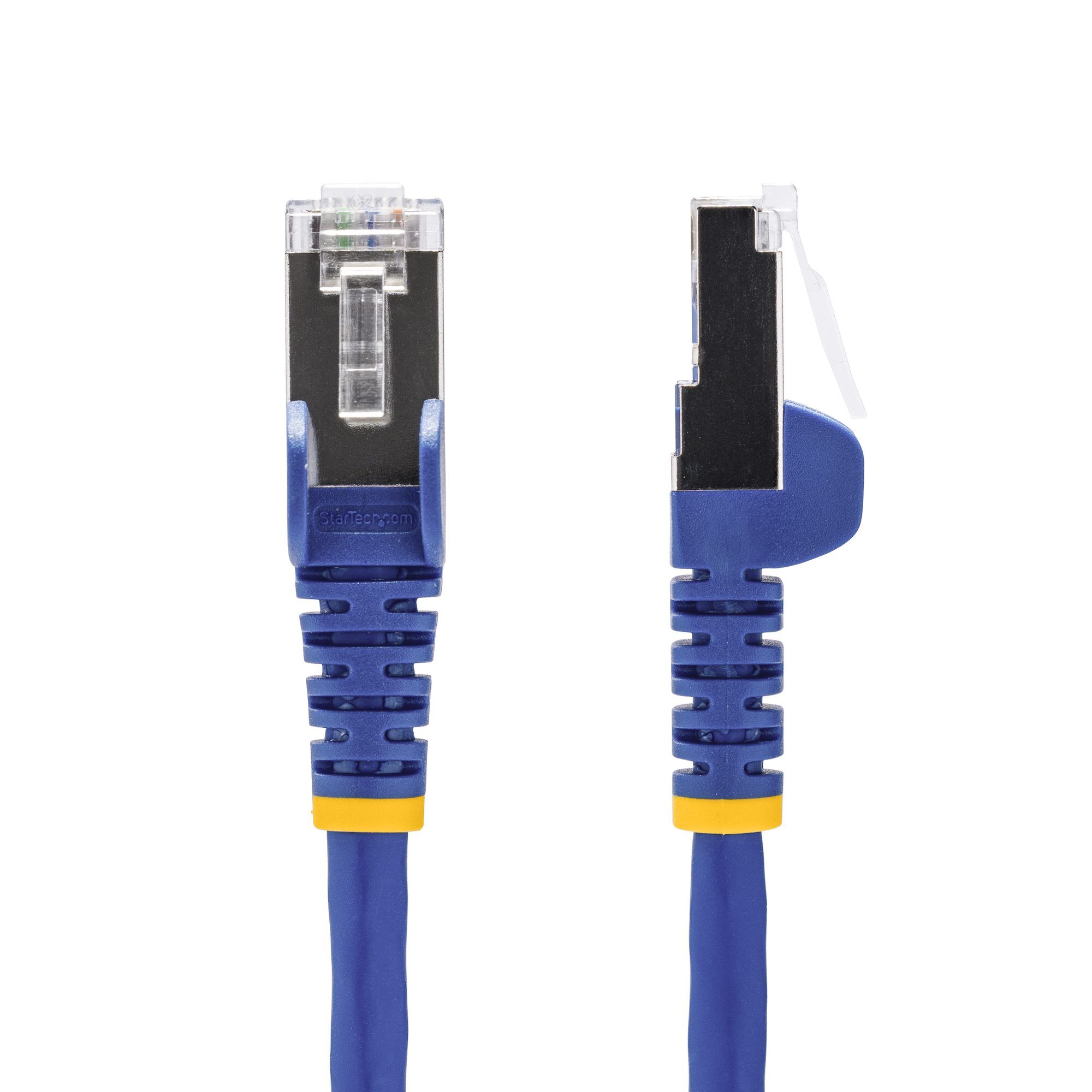

StarTech NLBL-50C-CAT8-PATCH 0.5 m blue CAT8 Ethernet cable

High-speed shielded CAT8 connectivity for enterprise 25/40Gbps networks, with 2000 MHz performance, LSZH construction and up to 100W PoE++.

0.5 mCAT 8.1 2000 MHz40Gbps26 AWG Copper100W PoE++LSZH S/FTP

StarTech NLBL-50C-CAT8-PATCH 0.5 m blue CAT8 Ethernet cable

25/40Gbps CAT8

Designed for high-density 25G/40GBASE-T network links with a maximum data transfer rate of 40Gbps.

2000 MHz bandwidth

CAT 8.1 performance at 2000 MHz provides substantially higher frequency capability than CAT6a.

26 AWG copper

Uses pure copper conductors in four-pair S/FTP construction for reliable signal and power delivery.

100W PoE++

Supports compatible Power over Ethernet devices up to 100W.

What to know

Shielded S/FTP construction with aluminium-mylar foil and braided shielding.
Low Smoke Zero Halogen jacket.
RJ45 connectors with gold-plated contacts and snagless strain relief.
Individually tested for CAT8 performance; no exact DeviceDeal product-video link is shown.

Australian warranty confidence

This Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech NLBL-50C-CAT8-PATCH?

The NLBL-50C-CAT8-PATCH is a 0.5 m blue shielded CAT8 S/FTP Ethernet patch cable with RJ45 connectors.

What network speeds does the NLBL-50C-CAT8-PATCH support?

It is designed for 10Gbps, 25Gbps and 40Gbps Ethernet applications with compatible network equipment.

What cable rating does the NLBL-50C-CAT8-PATCH use?

Current exact-SKU StarTech information rates it as CAT 8.1 at 2000 MHz.

What conductor size does the NLBL-50C-CAT8-PATCH use?

It uses 26 AWG pure copper conductors.

What shielding does the NLBL-50C-CAT8-PATCH use?

It uses four-pair S/FTP construction with aluminium-mylar foil and a braided shield for EMI protection.

Does the NLBL-50C-CAT8-PATCH support Power over Ethernet?

Yes. It supports up to 100W PoE++ for compatible powered devices.

What jacket does the NLBL-50C-CAT8-PATCH use?

It uses a Low Smoke Zero Halogen jacket suited to enclosed or poorly ventilated installations.

What warranty applies to the NLBL-50C-CAT8-PATCH in Australia?

The Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility requirements and product assessment. Retain the DeviceDeal tax invoice as proof of purchase.

(NLBL-50C-CAT8-PATCH)

Features and highlights

CAT 8.1 2000 MHz

High-frequency CAT8 performance for enterprise 25/40Gbps network links.

Up to 40Gbps

Designed for high-density 25G/40GBASE-T network environments.

26 AWG copper

Uses pure copper conductors for reliable high-speed data and PoE delivery.

S/FTP shielding

Aluminium-mylar foil and braided shielding help reduce EMI interference.

100W PoE++

Supports compatible Power over Ethernet devices up to 100W.

LSZH jacket

Low Smoke Zero Halogen construction suits enclosed and poorly ventilated areas.

Key highlights

CAT 8.1, 2000 MHz
40Gbps maximum data rate
4-pair S/FTP
26 AWG pure copper
RJ45 connectors, T568B
Lifetime StarTech.com warranty

Warranty confidence

Lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase.

Specifications

StarTech NLBL-50C-CAT8-PATCH 0.5 m blue CAT8 Ethernet patch cable.

Source note: DeviceDeal lists 100 g shipping weight. The current exact-SKU StarTech datasheet lists 37 g, so the StarTech value is used.

General

Product

StarTech NLBL-50C-CAT8-PATCH shielded CAT8 Ethernet patch cable

Warranty

Lifetime official StarTech.com manufacturer warranty

Cable rating

CAT 8.1 - 2000 MHz

Maximum data transfer rate

40Gbps

Power delivery

100W PoE++

ETL verified

Yes

Hardware and connectors

Connector A

1 x RJ45

Connector B

1 x RJ45

Cable structure

4-pair S/FTP

Pair shield

Aluminium-Mylar tape

Cable shield

Aluminium-Mylar tape with braid

Connector plating

Gold

Wire gauge

26 AWG

Conductor type

Solid copper

Cable jacket

Low Smoke Zero Halogen

Fire rating

LSZH Rated

Cable type

Shielded snagless

Wiring standard

TIA/EIA-T568B

Industry standards

PoE++; IEEE 802.3ba 40GBASE-T

Insertion rating

Rated beyond 750 mating cycles

Physical and environmental

Colour

Blue

Cable length

0.5 m

Cable OD

5.6 mm

Product length

0.5 m

Product width

11.6 mm

Product height

14.0 mm

Product weight

28.0 g

Operating temperature

0¡C to 50¡C

Storage temperature

-20¡C to 60¡C

Humidity

0% to 85% RH

Packaging and in the box

Package width

200 mm

Package depth

220 mm

Package height

12 mm

Shipping weight

37 g

Included in package

1 x 0.5 m snagless CAT8 cable - Blue

SKU	NLBL-50C-CAT8-PATCH
Barcode #	65030908573
Brand	Startech
Shipping Weight	0.1000kg

Official StarTech.com manufacturer warranty in Australia

Lifetime warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for the lifetime warranty period.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
