Up to 240W EPR charging
Support USB Power Delivery 3.1 Extended Power Range at up to 240W, 5A and 48V with compatible equipment.
StarTech USB2EPR1M 1M USB-C CHARGING CABLE 240W PD EPR
Model # 6218447
-
SKU: USB2EPR1M
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB2EPR1M

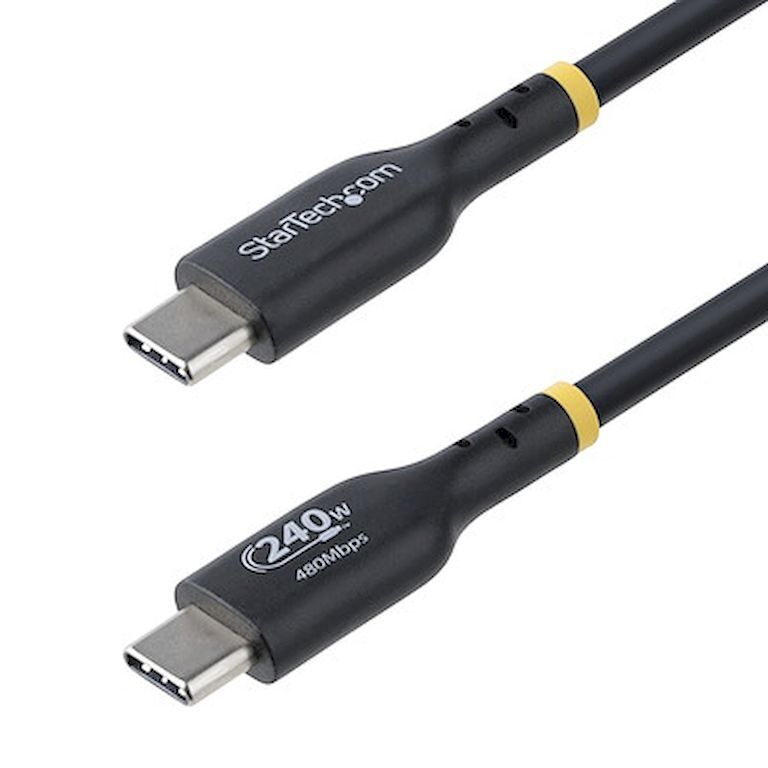

StarTech 1m USB-C 240W PD 3.1 EPR Charging Cable
Charge compatible high-power USB-C devices at up to 240W/5A through PD 3.1 EPR while supporting USB 2.0 data transfers up to 480Mbps.
240W / 5A EPRUSB-IF certified10,000+ insertions
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
USB-IF certified E-marker
An integrated E-marker and USB-IF certification support consistent power negotiation with compatible USB-C hosts and devices.
Rugged TPE construction
The halogen-free TPE jacket, braided aluminium shielding and nickel-plated connectors are designed for frequent use.
USB 2.0 data
Transfer files and synchronise compatible USB-C devices at up to 480Mbps while retaining high-power charging support.
Australian version with official Lifetime warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What is the StarTech USB2EPR1M?
It is a 1m USB-C to USB-C cable for up to 240W PD 3.1 EPR charging and USB 2.0 data.
What is the maximum charging output?
It supports up to 240W, 5A and 48V with a compatible USB PD 3.1 EPR charger and device.
Is it backward compatible with lower charging levels?
Yes. The official specification lists backward compatibility with 140W, 100W and 60W USB-C Power Delivery.
What data rate is supported?
It supports USB 2.0 transfers up to 480Mbps.
Does it support USB-C video?
No. DisplayPort Alternate Mode and USB-C video are not supported.
Is the cable USB-IF certified?
Yes. It is USB-IF certified and includes an integrated E-marker chip.
What is included?
The package includes one 1m USB-C charging cable, male to male.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB2EPR1M)
Features and highlights
StarTech USB2EPR1M
Up to 240W EPR charging
Support USB Power Delivery 3.1 Extended Power Range at up to 240W, 5A and 48V with compatible equipment.
USB-IF certified E-marker
An integrated E-marker and USB-IF certification support consistent power negotiation with compatible USB-C hosts and devices.
Rugged TPE construction
The halogen-free TPE jacket, braided aluminium shielding and nickel-plated connectors are designed for frequent use.
USB 2.0 data
Transfer files and synchronise compatible USB-C devices at up to 480Mbps while retaining high-power charging support.
- Backward compatible with 140W, 100W and 60W USB-C Power Delivery levels
- Nickel-plated connectors rated beyond 10,000 insertion cycles
- Black 1m cable with 4.0mm outside diameter and 30 AWG wire
- USB-C DisplayPort Alternate Mode is not supported
Warranty confidence: Australian-version product with a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB2EPR1M specifications organised from the supplied product data.
Warranty Information
| Warranty | Lifetime |
|---|
Hardware
| Active or Passive Adapter | Passive |
|---|---|
| Connector Plating | Nickel |
| Cable Jacket Material | TPE - Thermoplastic Elastomers |
| Cable Shield Material | Aluminium-Mylar foil with braid |
| USB Certification | USB-IF certified with integrated E-marker chip |
Performance
| Maximum Data Transfer Rate | 480Mbps |
|---|---|
| Type and Rate | USB 2.0 (480Mbps) |
| Insertion Rating | Rated beyond 10,000 insertion cycles |
Connector(s)
| Connector A | 1 × USB Type-C male (USB 2.0, 480Mbps) |
|---|---|
| Connector B | 1 × USB Type-C male (USB 2.0, 480Mbps) |
Power
| Power Source | Bus-powered |
|---|---|
| Power Delivery | 240W / 5A PD 3.1 EPR, up to 48V |
| Backward Compatibility | 140W, 100W and 60W USB Power Delivery |
Special Notes / Requirements
| Video Support | USB-C DisplayPort Alternate Mode is not supported |
|---|
Environmental
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
|---|---|
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 85% RH |
Physical Characteristics
| Color | Black |
|---|---|
| Connector Style | Straight |
| Wire Gauge | 30 AWG |
| Material | Polyamide resin |
| Cable Length | 3.3 ft [1.0m] |
| Cable Outside Diameter | 0.16 in [4.0mm] |
| Product Length | 3.3 ft [1.0m] |
| Product Width | 0.5 in [1.2cm] |
| Product Height | 0.3 in [6.4mm] |
| Weight of Product | 1.1 oz [31g] |
Packaging Information
| Package Length | 4.9 in [12.5cm] |
|---|---|
| Package Width | 8.9 in [22.5cm] |
| Package Height | 0.4 in [1.0cm] |
| Shipping (Package) Weight | 1.3 oz [36g] |
What's in the Box
| Included in Package | 1 × 1m USB-C charging cable, male to male |
|---|
| SKU | USB2EPR1M |
| Barcode # | 65030909150 |
| Brand | Startech |
| Shipping Weight | 10.2500kg |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for lifetime.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
