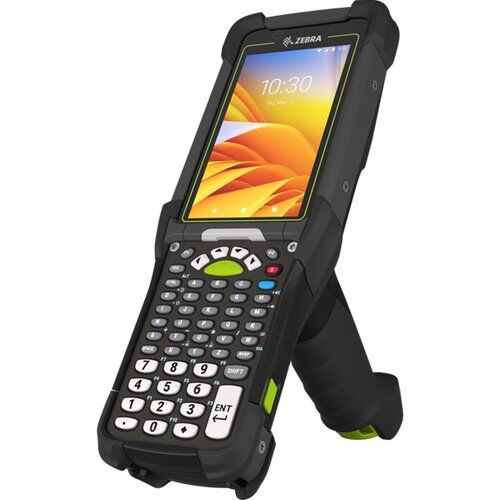

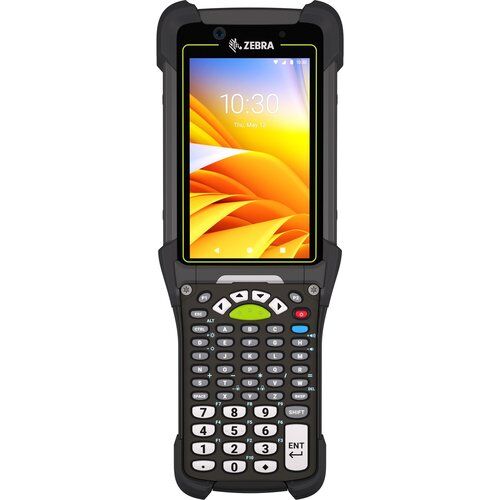

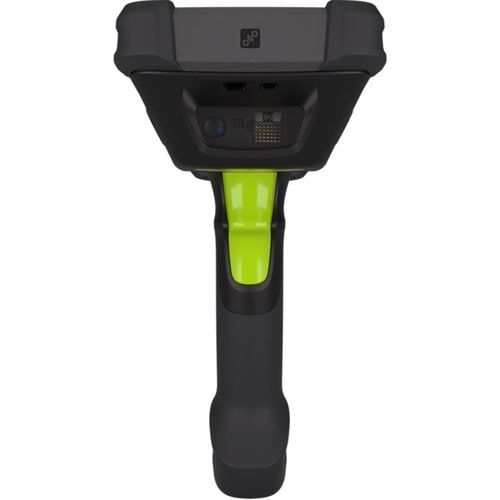

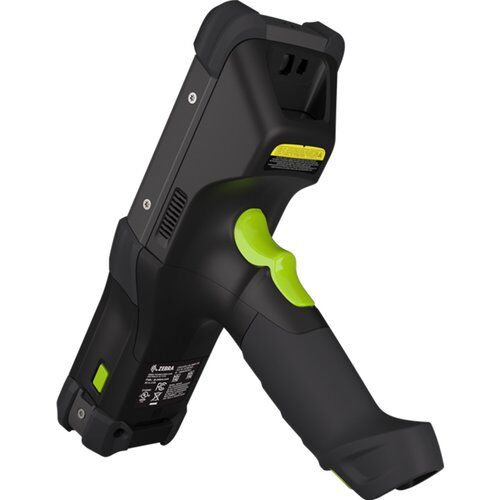

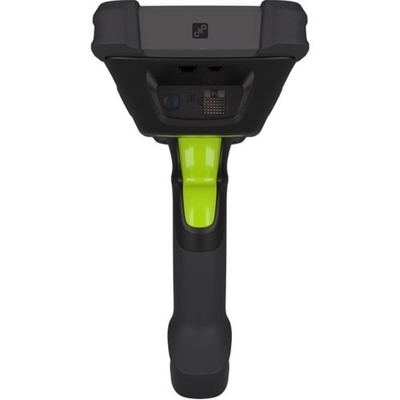

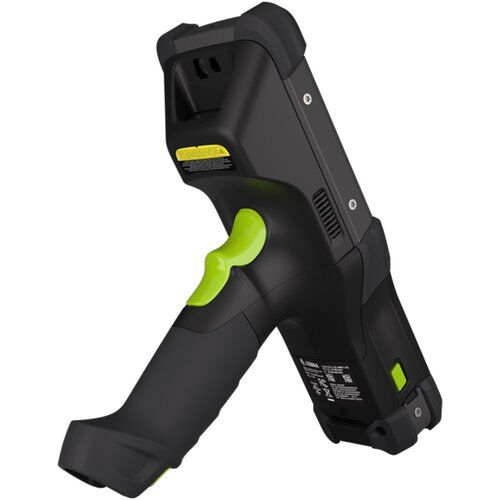

Zebra MC945B-3G1R6DSS-A6 Ultra-Rugged 5G Gun Mobile Computer
ZebraSKU MC945B-3G1R6DSS-A6Ultra-Rugged 5G Gun Mobile Computer

Zebra MC945B-3G1R6DSS-A6 MC9450 5G 53-Key Gun Mobile Computer - SE58, 6GB/128GB

The Zebra MC945B-3G1R6DSS-A6 is a Rest-of-World MC9450 gun mobile computer configured with an SE58 extended-range imager, 53-key standard keypad, 5G, Wi-Fi 6E, 6GB RAM, 128GB UFS storage, front and rear cameras and a 7000mAh standard battery.

Key features

Extended-Range Capture

The exact configuration uses Zebra's SE58 1D/2D extended-range scan engine with IntelliFocus technology and a high-visibility green laser aimer.

5G and Wi-Fi 6E

A Rest-of-World 5G/LTE radio, dual-band GNSS, tri-band Wi-Fi 6E and Bluetooth 5.3 support connected warehouse, yard and field workflows.

Keyed Gun Form Factor

The integrated gun handle, replaceable 53-key standard alphanumeric keypad and 4.3-inch touch display support scan-intensive data entry.

Full Camera and Power Package

This SKU combines 8MP front and 16MP rear cameras with 6GB/128GB memory and the standard 7000mAh hot-swappable battery platform.

What to know

  • MC9450 gun-style ultra-rugged mobile computer
  • SE58 1D/2D extended-range imager with IntelliFocus
  • 53-key standard alphanumeric keypad
  • 5G/LTE WWAN, Wi-Fi 6E, Bluetooth 5.3 and NFC
  • 4.3-inch WVGA touch display
  • 6GB RAM and 128GB UFS storage
  • 8MP front and 16MP rear cameras

Australian supply and warranty

This Australian version is supplied by DeviceDeal and is covered by the Zebra 1-year zebra limited hardware against defects in workmanship and materials for one year from the date of shipment subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to Zebra warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What exact configuration is MC945B-3G1R6DSS-A6?

It is a Rest-of-World MC9450 gun model with 5G/LTE, Wi-Fi 6E, SE58 imager, 53-key standard keypad, 6GB/128GB memory, 8MP front and 16MP rear cameras, GMS and a 7000mAh standard battery.

Which scan engine is fitted?

This SKU uses the SE58 1D/2D extended-range scan engine with IntelliFocus. Actual read distance depends on barcode size, print quality, lighting and other conditions.

Does it support cellular service in Australia?

It is the Rest-of-World 5G/LTE configuration. Carrier certification and supported bands should still be checked with the intended Australian mobile network before deployment.

What cameras and memory are included?

The configuration has an 8MP front camera, 16MP autofocus rear camera, 6GB RAM and 128GB UFS internal storage.

Are a cradle and power supply included?

The exact distributor configuration identifies the mobile computer and its standard 7000mAh battery, but does not identify a cradle, power supply or charging cable as included. Select those accessories separately for the deployment.

What warranty applies to the Zebra MC945B-3G1R6DSS-A6?

This Australian version is supplied by DeviceDeal and is covered by the Zebra 1-year zebra limited hardware against defects in workmanship and materials for one year from the date of shipment subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to Zebra warranty terms, eligibility requirements and product assessment.

(MC945B-3G1R6DSS-A6)

Features and highlights

Zebra MC945B-3G1R6DSS-A6 MC9450 5G 53-Key Gun Mobile Computer - SE58, 6GB/128GB

Extended-Range Capture

The exact configuration uses Zebra's SE58 1D/2D extended-range scan engine with IntelliFocus technology and a high-visibility green laser aimer.

5G and Wi-Fi 6E

A Rest-of-World 5G/LTE radio, dual-band GNSS, tri-band Wi-Fi 6E and Bluetooth 5.3 support connected warehouse, yard and field workflows.

Keyed Gun Form Factor

The integrated gun handle, replaceable 53-key standard alphanumeric keypad and 4.3-inch touch display support scan-intensive data entry.

Full Camera and Power Package

This SKU combines 8MP front and 16MP rear cameras with 6GB/128GB memory and the standard 7000mAh hot-swappable battery platform.

Key highlights

  • MC9450 gun-style ultra-rugged mobile computer
  • SE58 1D/2D extended-range imager with IntelliFocus
  • 53-key standard alphanumeric keypad
  • 5G/LTE WWAN, Wi-Fi 6E, Bluetooth 5.3 and NFC
  • 4.3-inch WVGA touch display
  • 6GB RAM and 128GB UFS storage
  • 8MP front and 16MP rear cameras
  • 7000mAh standard removable battery

Warranty confidence

1-year zebra limited hardware against defects in workmanship and materials for one year from the date of shipment subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia.

Zebra MC945B-3G1R6DSS-A6

Technical specifications

Zebra MC945B-3G1R6DSS-A6 MC9450 5G 53-Key Gun Mobile Computer - SE58, 6GB/128GB

Zebra MC945B-3G1R6DSS-A6 Ultra-Rugged 5G Gun Mobile Computer

Product

BrandZebra
ModelMC945B-3G1R6DSS-A6
SKUMC945B-3G1R6DSS-A6
Product TypeUltra-Rugged 5G Gun Mobile Computer

Configuration

Product FamilyMC9450
Regional ConfigurationRest of World (A6)
Form FactorGun-style handheld with integrated trigger handle

Operating System

PlatformAndroid with Google Mobile Services (GMS)

Display

Size and Resolution4.3 in. WVGA (800 x 480), colour, 600 nits typical

Performance

ProcessorQualcomm 4490 octa-core, 2.4 GHz
Memory6 GB RAM
Internal Storage128 GB UFS
ExpansionmicroSD support up to 2 TB

Data Capture

Scan EngineSE58 1D/2D extended-range imager with IntelliFocus and green laser aimer
Front Camera8 MP
Rear Camera16 MP autofocus with LED flash and HDR support
NFCIntegrated; ISO 14443 Type A/B, FeliCa and ISO 15693 support

Input

KeypadBacklit, field-replaceable 53-key standard alphanumeric keypad

Wireless

WWAN5G NR Sub-6 (NSA/SA), LTE-A and 3G; Rest-of-World configuration; data only
SIM1 nano SIM and 1 eSIM
WLANWi-Fi 6E, tri-band 2.4/5/6 GHz, 2x2 MU-MIMO
BluetoothBluetooth 5.3 Low Energy

Location

GNSSDual-band GPS, GLONASS, Galileo and QZSS with assisted GPS/XTRA

Interface

USBUSB 2.0 high-speed host/client through bottom pogo connector

Battery

Included ConfigurationStandard 7000 mAh (25.20 Wh) rechargeable lithium-ion battery
Battery SwapHot-swap support with temporary session persistence

Durability

SealingIP65 and IP68 with battery installed

Physical

Dimensions240 x 88 x 189 mm (L x W x H)
Weight743 g with battery

Package

Width0.22 m
Length0.282 m
Height0.102 m
Shipping Weight1.1 kg
Cubic Volume0.006328 m³

Warranty

Warranty1-year zebra limited hardware against defects in workmanship and materials for one year from the date of shipment subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia
SKU MC945B-3G1R6DSS-A6
Brand Zebra
Shipping Weight 1.1000kg
Shipping Width 0.220m
Shipping Height 0.102m
Shipping Length 0.282m
Shipping Cubic 0.006328000m3
Australian version

1-year zebra limited hardware against defects in workmanship and materials for one year from the date of shipment subject to zebra's terms and applicable australian consumer law. manufacturer warranty

This Australian version is supplied by DeviceDeal and is covered by the Zebra 1-year zebra limited hardware against defects in workmanship and materials for one year from the date of shipment subject to zebra's terms and applicable australian consumer law. manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to Zebra warranty terms, eligibility requirements and product assessment.
