ATEN SKU 2L-7D05H-1

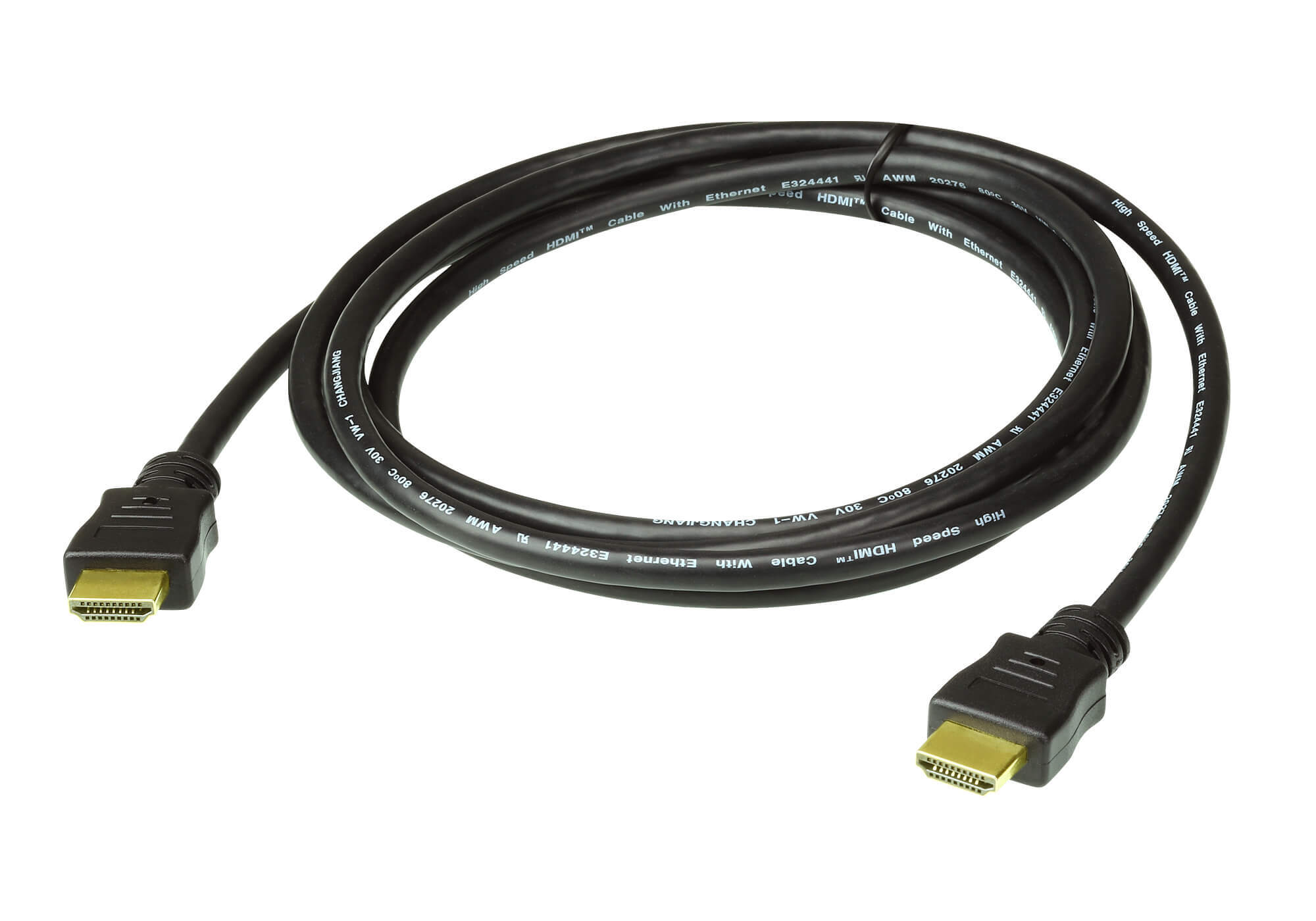

ATEN 2L-7D05H-1 5m High Speed HDMI Cable with Ethernet

The ATEN 2L-7D05H-1 is a 5-metre High Speed HDMI cable with Ethernet supporting video up to 4096 x 2160 at 60Hz, as listed in the supplied product information.

Its black cable construction uses 26AWG tinned-copper conductors, gold-plated HDMI connectors, aluminium-foil shielding and a PVC jacket.

5-metre cableUp to 4096 x 2160 @ 60HzHDMI male to male1-year limited warrantyDeviceDeal authorised ATEN reseller

ATEN 2L-7D05H-1 five-metre High Speed HDMI cable with Ethernet

Product overview

True 4K video

The supplied maximum video resolution is 4096 x 2160 at 60Hz.

Five-metre connection

The source lists a five-metre cable with HDMI 19-pin male connectors at both ends.

Cable construction

The source identifies 26AWG tinned copper, gold plating, aluminium-foil shielding and a PVC jacket.

Source review: The supplied text includes a generic rack-mount dimension-order note that is unrelated to this cable and has been excluded from the customer-facing specifications.

Frequently asked questions

What maximum resolution is listed for the ATEN 2L-7D05H-1?

The supplied information lists up to 4096 x 2160 at 60Hz.

How long is the cable?

The supplied cable length is 5 metres.

Which connectors are supplied?

The source lists HDMI 19-pin male connectors at both ends.

What warranty is supplied?

The source lists a one-year limited ATEN manufacturer warranty.

(2L-7D05H-1)

Features

ATEN 2L-7D05H-1 5m High Speed HDMI Cable with Ethernet

Video and HDMI

Up to 4096 x 2160 @ 60Hz
HDMI 3D support
Deep Color and 4K support
HDCP 2.2 compatible
Ethernet support

Cable details

Length: 5m
HDMI 19-pin male to male
Black cable
Outer dimension: 8.0 ± 0.30mm
26AWG

Construction and compliance

Tinned-copper conductor
Gold connector plating
Aluminium-foil shielding
PVC jacket
UL VW-1 flame rate; CSA

Confirm that the connected source and display support the required HDMI resolution, refresh rate and features.

Technical specifications

ATEN 2L-7D05H-1 5m High Speed HDMI Cable with Ethernet

Product details
Brand	ATEN
Model / SKU	2L-7D05H-1
Product type	High Speed HDMI cable with Ethernet
Length	5m
Colour	Black
Video and interfaces
Maximum video resolution	4096 x 2160 @ 60Hz
Connectors	HDMI 19-pin male to HDMI 19-pin male
HDMI features stated	3D, Deep Color, 4K, Ethernet
HDCP compatibility	HDCP 2.2
Construction and compliance
Outer dimension	8.0 ± 0.30mm
Conductor gauge	26AWG
Conductor	Tinned copper
Connector plating	Gold
Shielding	Aluminium foil
Jacket	PVC
Operating temperature	80°C
Rating stated	UL VW-1 flame rate; CSA

SKU	2L-7D05H-1
Barcode #	672792010552
Brand	Aten
Shipping Weight	0.3800kg
Shipping Width	0.046m
Shipping Height	0.148m
Shipping Length	0.176m

Warranty information

ATEN 2L-7D05H-1 5m High Speed HDMI Cable with Ethernet

1-Year Limited ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a one-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
