• HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) ; HDCP 2.2 compliant
• Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 10 m
• Supports HDR
• Supports HDMI Ethernet Channel (HEC) – combines audio, video, and data streams into a cable to simplify the set-up
• Supports Audio Return Channel (ARC) – connects TV and audio system, eliminating the need for an additional cable
• Reduced EMI and RFI for lower noise interference
• Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
• Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg)
• Additional power source is available via Micro USB cable for better compatibility
• Gold-plated connectors for reliable transmissions
• Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)

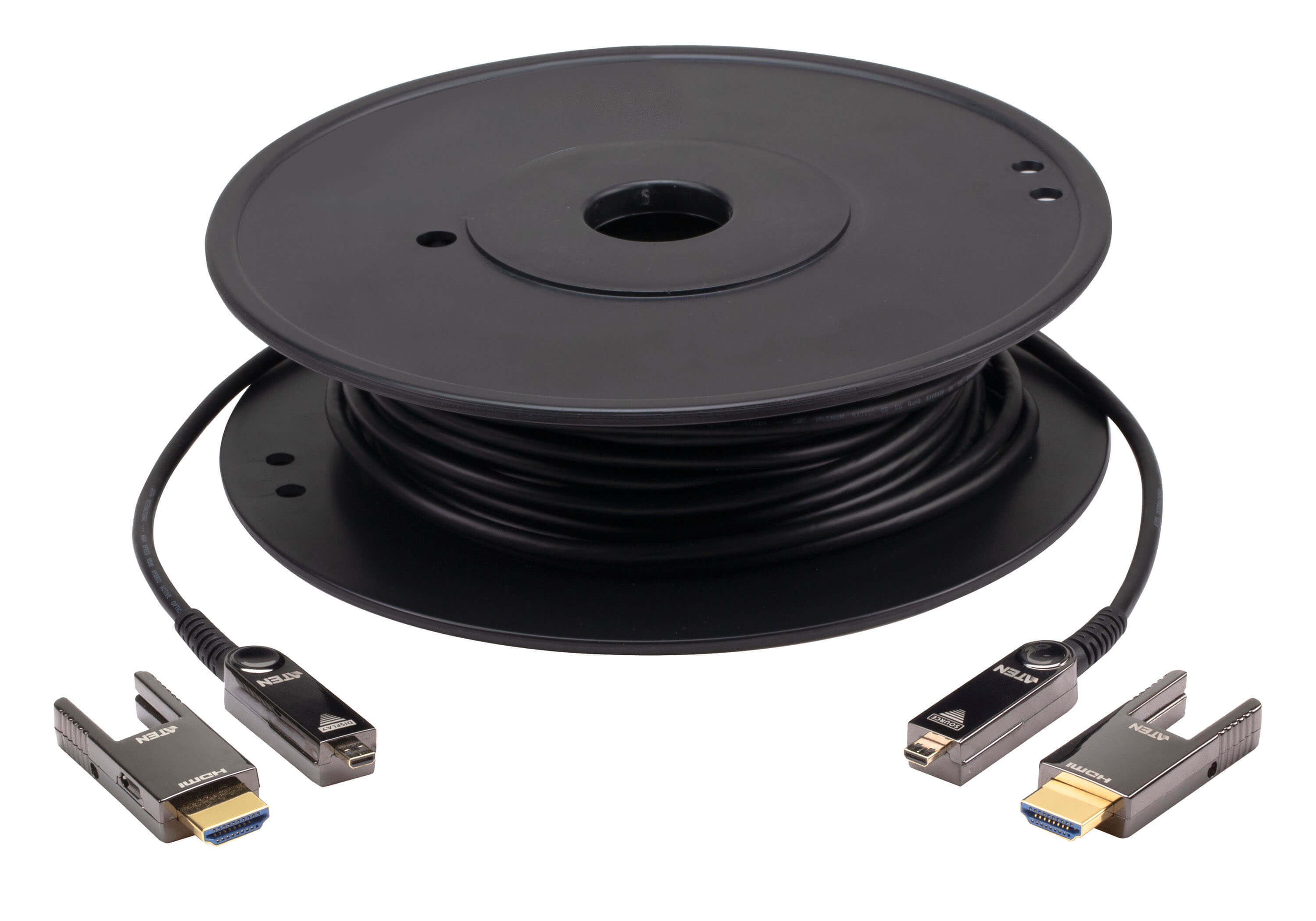

• Pluggable gender for easy installation
• Plug-and-play

Package Contents

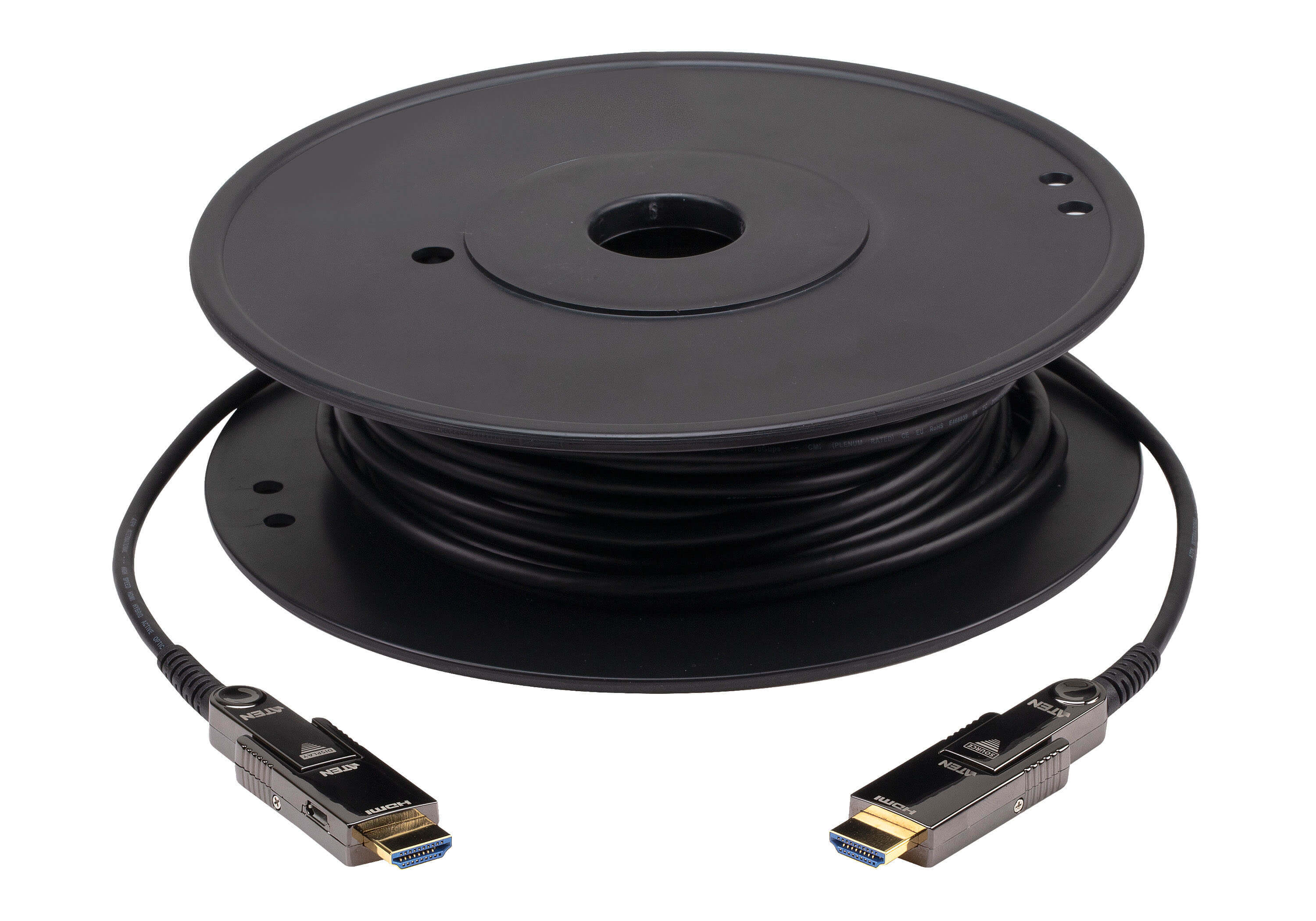

1x VE7832A 20M True 4K HDMI Active Optical Cable
1x Wiring Tool
1x Screwdriver
2x Screws
1x Micro USB to USB Cable
1x Installation Notice
1x User Instructions

(VE7832A-AT)

Cable Length	20M / 65.6 ft
Cable Type	Cable Type: Hybrid cable with optical fiber and copper wire HDMI Standards: High Speed HDMI Cable
Video Input
Interfaces	1 x HDMI 19-pin Type-A Male (gold-plated) pluggable connector 1 x HDMI Type-D Male
Video Output
Interfaces	1 x HDMI 19-pin Type-A Male (gold-plated) pluggable connector 1 x HDMI Type-D Male
Video
Max. Data Rate	18 Gbps (6 Gbps per Channel)
Max. Pixel Clock	600 MHz (Max.)
Compliance	HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) HDCP 2.2 Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 Color Depth: 30 / 36 / 48 bit
Max. Resolutions / Distance	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 20M
Communication
Signals	TMDS / HDCP 2.2 / EDID / CEC
Audio
Input	PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output	PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Conductor
Construction	7 x Tinned Copper Wire 4 x OM3 Optical Fiber (50/125um)
Jacketed
Material	UL Plenum (CMP-OF)
Certifications
Certifications	Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF
Power Consumption	DC5.0V:0.25W:0.05ABTU
Power (Optional)	Optional power source: Micro USB to USB cable (100cm) 5V, 250mW (max)
Notification	Bend Radius: 20mm (Min.) Connector Pull Strength: Max. 10kg (100N) Compression Load Resistance: Max. 50kg (500N) Shielding & Filling: AL Mylar shielding / Kevlar Filling
Environmental
Operating Temperature	0°C to 50°C (32? to 122?)
Storage Temperature	-20°C to 70°C (-4? to 158?)
Humidity	0 - 85% RH, Non-Condensing
Physical Properties
Housing	Connector Case: Zinc-Alloy
Weight	0.55 kg ( 1.21 lb )
Cable Outer Dimension	Cable Outer Diameter: 4.5mm (± 0.2mm)
Carton Lot	10 pcs
