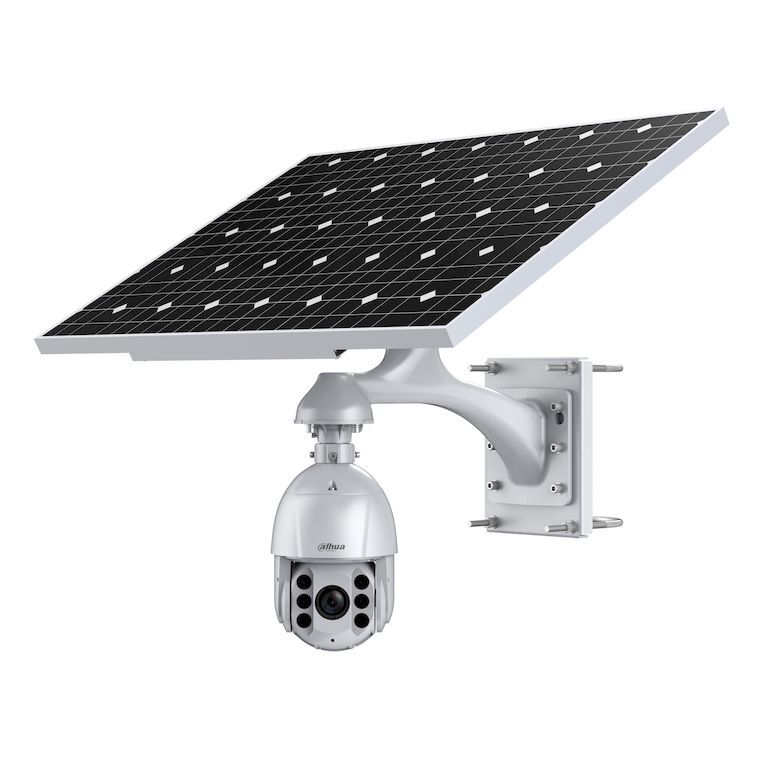

Integrated Solar Power System (Without Lithium Battery) Model DH-PFM378-B125-CB Solar Panel Type Monocrystalline silicon Max. Power 125 W Solar Cell Efficiency 21% Max. Mechanical Load 5400 Pa Controller Type MPPT Operating Voltage 12 VDC Rated Charging Current 10 A Rated discharge current 10 A MPPT Tracking Efficiency ? 99% Communication Mode RS485 Operating Temperature –20 °C to +60 °C (–4 °F to +140 °F) Rated Charging Power 130 W Over-discharge Protection Voltage 11.1 VDC Others Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load. Port Power Output ?5.5 mm × ?2.1 mm × 12 mm (?0.22" × ?0.08" × 0.47") RS–485 Red: RS485-A Black: RS485-B Output Port CSA authorized M15 2-core waterproof connector (connected to lithium battery) General Main Body Material Q235 steel/aluminum IP Rating IP65 Installation Pole mount, ?80mm~?150mm Adjustable Angle Solar panel: H: 360°, V: 10°/20°/30°/40°/50° Product Dimensions 965.0 mm × 910.5 mm × 786.4 mm (37.99" × 35.85" × 30.96") Packaging Dimensions 1,280 mm × 775 mm × 280 mm (50.39" × 30.51" × 11.02") Packaging Method 1 pc in each carton Net Weight 20.1 kg (44.31 lb) Gross Weight 26 kg (57.32 lb) Environment Operating Altitude < 3000 m (9842.5 ft) Applicable Area Areas with daily exposure to solar radiation for more than 3.5 hours Operating Temperature –20 °C to +60 °C (–4 °F to +140 °F) Operating Humidity < 95% (RH) Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F) Storage Humidity < 95% (RH) Certifications Certifications CE: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020 FCC: 47 CFR Part 15, Subpart B UKCA: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020 4 MP 32x Startlight IR WizSense Network PTZ Camera Model DH-SD6C3432XB-HNR-AGQ-PV Camera Image Sensor 1/2.8” CMOS Pixel 4 MP Max. Resolution 2560 (H) × 1440 (V) ROM 4 GB RAM 1 GB Electronic Shutter Speed 1/1 s–1/30,000 s Scanning System Progressive Min. Illumination Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) Illumination Distance 150 m (492.13 ft) (IR) 80 m (262.47 ft) (white light) Illuminator Number 4 (IR) 2 (white light) Lens Focal Length 4.8 mm–154 mm Max. Aperture F1.6–F4.0 Field of View H: 55.8°–2.3° V: 31.9°–1.3° D: 63.7°–2.7° Optical Zoom 32× Focus Control Auto; Semi-Auto; Manual Close Focus Distance 0.1m-1.5m Iris Control Auto DORI Distance Detect Observe Recognize Identify 3,080 m (10104.99 ft) 1,216.6 m (3991.47 ft) 616 m (2021.00 ft) 308 m (1010.50 ft) PTZ Pan/Tilt Range Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° Manual Control Speed Pan: 0.1°–160°/s; Tilt: 0.1°–120°/s Preset Speed Pan: 240°/s; Tilt: 150°/s Preset 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Preset; Pattern; Tour; Scan Smart Event IVS Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking Intelligence Smart Capture Support human, motor vehicle and non-motor vehicle image capture. IVS (Perimeter Protection) Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. Face Detection Yes People Counting Yes Auto Tracking Preset; Pattern; Tour; Scan Video Video Compression Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream) Streaming Capability 3 streams Resolution 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p (1–50/60 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H.264: 2816 kbps–8192 kbps H.265: 1024 kbps–7936 kbps Day/Night Auto (ICR); Color; B/W BLC Yes HLC Yes White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Region of Interest (RoI) Yes Image Stabilization EIS Defog Electronic defog Digital Zoom 16 × Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view S/N Ratio ? 55 dB Audio Audio Compression G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 Network Network Port RJ-45 (10/100 Base-T) 4G-Wireless Frequency Range LTE-FDD: B1/3/5/7/8/20 LTE-TDD: Band 38/40 WCDMA: Band 1/5/8 GSM: 850/900/1800 MHz Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS Interoperability ONVIF (Profile S&G&T); CGI; Dahua SDK; GA/T 1400; SDK; API User/Host 20 (total bandwidth: 64 MB) Storage FTP; Micro SD card (256 GB); NAS Management Software Smart PSS; DSS; DMSS; Easy4ip; IVSS; ConfigTool; NVR; Smart Player; Imou; NetSDK Mobile Client iOS; Android; iPhone; iPad; Windows Phone Certification Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 Port RS-485 1 (baud rate: 1200 bps–9600 bps) Two-way Audio Yes Alarm Linkage Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email; waking up Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection Alarm I/O 2/1 Audio I/O 1/1 Power Power Supply 12 VDC, 4 A (–10% to +25%) Power Consumption Sleep: ? 1 W Basic: 4.0 W (not pulling stream in 4G), 7.4 (pulling stream in 4G) Max.: 27 W (illuminator+heater+PTZ+speaker+pulling stream in 4G) Environment Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F) Operating Humidity ? 95% Protection IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection Structure Casing ADC12 Dimensions 325.0 mm × ?202.0 mm (12.80" × ?7.95") Net Weight 4.4 kg (9.70 lb) Gross Weight 6.4 kg (14.11 lb) Ceiling Mount Bracket of PTZ camera Model DH-PFB301C General Material Aluminum alloy Dimension (W×H×D) ?128.8 mm × 35.5 mm (5.07" × 1.40") (D × H) Weight 0.21 kg (0.46 lb) Load Bearing 10.0 kg (22.04 lb) Mount Adapter Model PFA111 General Material Aluminum Dimension (W×H×D) ?60 mm x 49 mm (?2.36" × 1.93") Weight 0.25 kg (0.55 lb) Load Bearing 7.0 kg (15.43 lb)
