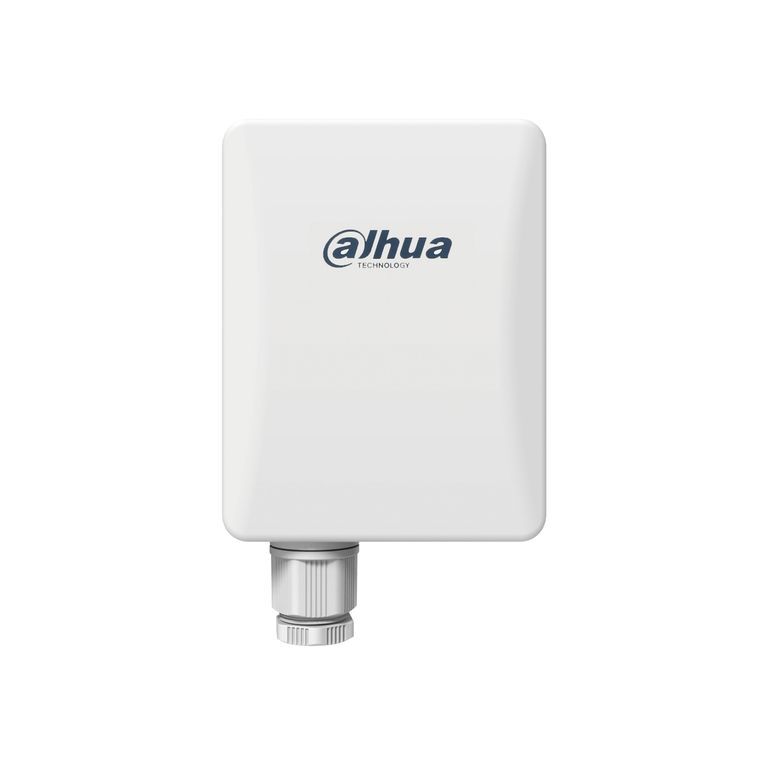

500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (TDMA). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of flash memory the, DH-PFWB5-30ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation - 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. DH-PFWB5-30ac series devices are backwards compatible with DaHua wireless devices using TDMA mode, which helps to expand or upgrade existing networks using the latest technologies over time.

> Strong signal: With its enhanced antenna, the point-to-point transmission distance reaches up to 5 km (16,404.20 ft).

> Wide operating temperature: –30 °C to +70 °C (–22 °F to +158 °F).

> Easy installation: Supports multiple installation methods such as wall mount and pole mount.

> High protection: IP65 rated, it is suitable for outdoor scenes and withstands severe weather.

> Strong broadband: The bandwidth can reach up to 867 Mbps, ensuring there is no delay in transmission.
