Enterprise all-flash storage
The exact supplied description identifies this drive for Synology all-flash systems.

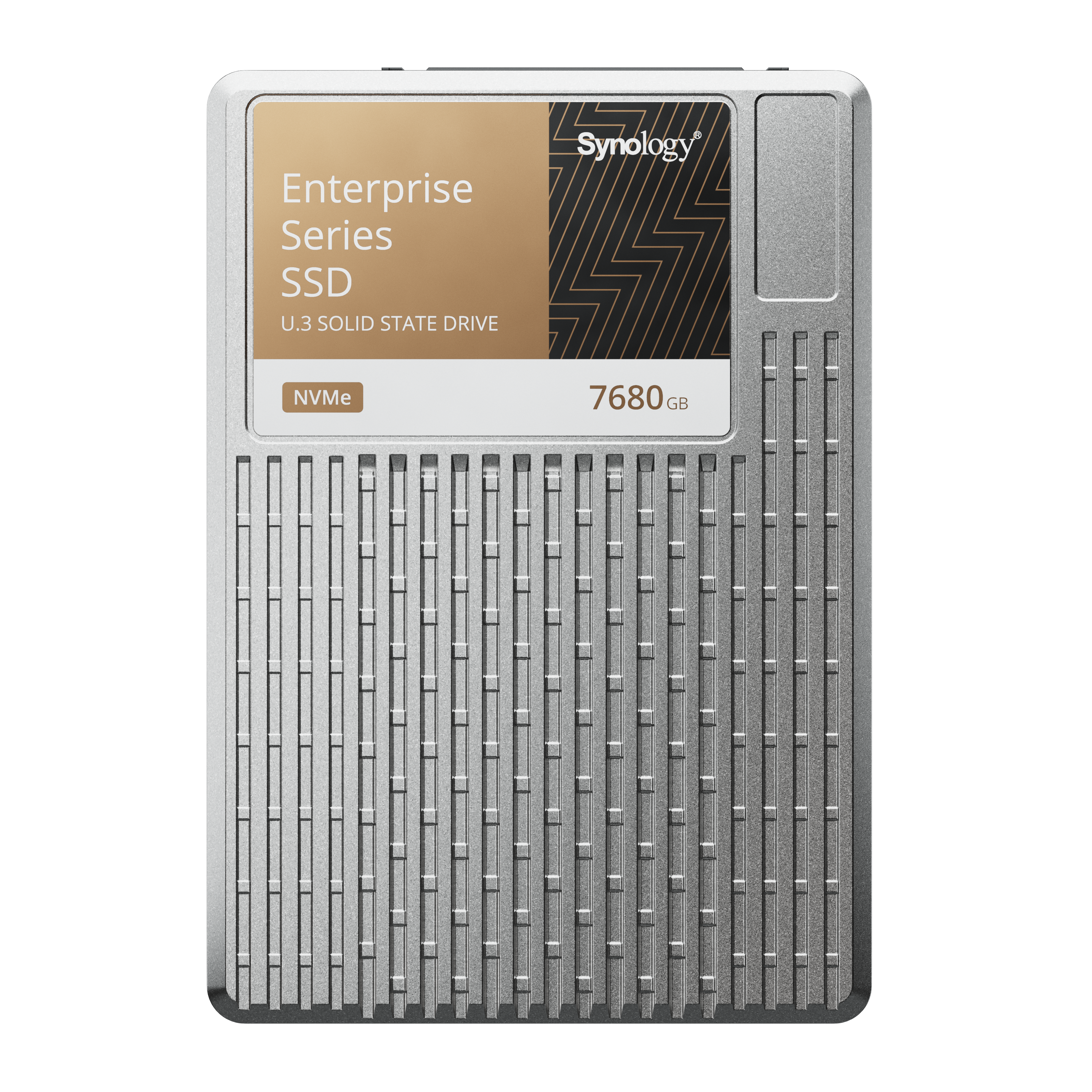

Synology SPU7200D 7.68TB 2.5-inch 15mm U.3 PCIe 4.0 x4 NVMe Enterprise Self-Encrypting SSD - SPU7200D-7680G
Model # SPU7200D-7680G
-
SKU: SPU7200D-7680G
- Pick Up Available
- Australian Warranty
- Checkout Securely
Synology dual-port enterprise U.3 NVMe solid-state drive
Synology SPU7200D 7.68TB Enterprise U.3 PCIe 4.0 NVMe SSD
A 7.68TB Synology SPU7200D enterprise 2.5-inch U.3 NVMe SSD for Synology all-flash systems, with PCIe 4.0 x4 dual-port active-active connectivity, up to 7,000MB/s read, SED security, power-loss protection and a five-year warranty.
- 7.68TB capacity
- 2.5-inch 15 mm U.3
- PCIe 4.0 x4 dual-port
- AES-256, TCG Opal and PLP
Product highlights
Dual-port active-active design
The supplied data identifies a dual-port active-active U.3 NVMe design.
Capacity-specific read performance
This exact capacity is specified at up to 7,000MB/s sequential read and 1,250,000 random read IOPS.
Capacity-specific write performance
The supplied exact-capacity figures state up to 4,000MB/s sequential write and 130,000 IOPS random write IOPS.
Frequently asked questions
What is the Synology SPU7200D-7680G?
It is a 7.68TB Synology SPU7200D 2.5-inch U.3 NVMe PCIe 4.0 x4 enterprise SSD.
What sequential read speed is stated?
The supplied exact-capacity specification states up to 7,000MB/s.
What random read performance is stated?
The supplied exact-capacity figure is 1,250,000 IOPS.
What write performance is stated?
The supplied figures state up to 4,000MB/s sequential write and 130,000 IOPS random write IOPS.
What is the endurance rating?
The supplied endurance rating is 14,016TBW.
Does it support dual-port operation?
Yes. A dual-port active-active U.3 design is identified.
Which security features are included?
SED, AES-256, TCG Opal and crypto erase are identified.
Does it have power-loss protection?
Yes. Power-loss protection is specified.
Will it work in every Synology system?
No. Confirm the exact all-flash system, U.3 bay, firmware and applied-model compatibility.
What warranty applies?
DeviceDeal is an authorised Synology reseller, and the supplied exact-model information states a five-year Synology manufacturer warranty.
(SPU7200D-7680G)
Features and highlights
Enterprise all-flash storage
The exact supplied description identifies this drive for Synology all-flash systems.
Dual-port active-active design
The supplied data identifies a dual-port active-active U.3 NVMe design.
Capacity-specific read performance
This exact capacity is specified at up to 7,000MB/s sequential read and 1,250,000 random read IOPS.
Capacity-specific write performance
The supplied exact-capacity figures state up to 4,000MB/s sequential write and 130,000 IOPS random write IOPS.
Self-encrypting drive security
SED, AES-256, TCG Opal and crypto erase are identified in the supplied specification.
Power-loss protection
Power-loss protection is identified for data protection during unexpected power interruption.
Capacity-specific endurance
The supplied endurance rating is 14,016TBW.
U.3 enterprise form factor
The supplied form factor is 2.5-inch, 15 mm U.3.
Five-year warranty
The supplied exact-model information states a five-year Synology manufacturer warranty.
Compatibility checkpoint
Confirm the exact Synology all-flash system, U.3 bay, firmware and applied-model compatibility before ordering.
Key points
- 7.68TB capacity
- 2.5-inch 15 mm U.3
- PCIe 4.0 x4 dual-port
- AES-256, TCG Opal and PLP
Technical specifications
Synology SPU7200D 7.68TB Enterprise U.3 PCIe 4.0 NVMe SSD
Specifications are organised from the information supplied for SKU SPU7200D-7680G.
| Product details | |
| Brand | Synology |
|---|---|
| Series | SPU7200D |
| Model | SPU7200D-7680G |
| Capacity | 7.68TB |
| Form factor | 2.5-inch, 15 mm, U.3 |
| Interface | NVMe PCIe 4.0 x4, dual-port |
| Capacity-specific performance | |
| Sequential read | Up to 7,000MB/s |
| Sequential write | Up to 4,000MB/s |
| Random read | 1,250,000 IOPS |
| Random write | 130,000 IOPS |
| Endurance and protection | |
| Endurance | 14,016TBW |
| Power-loss protection | Yes |
| Security | |
| Self-encrypting drive | Yes |
| Encryption | AES-256 |
| Security standard | TCG Opal |
| Crypto erase | Yes |
| Compatibility | |
| System positioning | Synology all-flash systems |
| Compatibility check | Confirm exact U.3 bay, firmware and applied-model support |
| Warranty | |
| Manufacturer warranty | 5 years |
| SKU | SPU7200D-7680G |
| Brand | SYNOLOGY |
| Shipping Width | 0.100m |
Manufacturer warranty
Synology warranty information
DeviceDeal is an authorised Synology reseller. This product is supplied with the applicable Synology manufacturer warranty in Australia, subject to the manufacturer's warranty terms, eligibility requirements and product assessment. The supplied exact-model information states a five-year manufacturer warranty.
Please retain your DeviceDeal tax invoice or order record as proof of purchase for any eligible warranty claim.
