0.5 m Grey slim CAT6 Ethernet cable for high-density network installs

StarTech N6PAT50CMGRS is a 0.5 m grey slim CAT6 patch cable for reliable Ethernet and PoE connections where cable space, flexibility and airflow matter. Its 28 AWG pure-copper construction is 36% thinner than standard CAT6 network cables and uses snagless RJ45 connectors for easier routing.

CAT6 250 MHz0.5 mGreyUp to 10GbpsUp to 100W PoE++Lifetime warranty

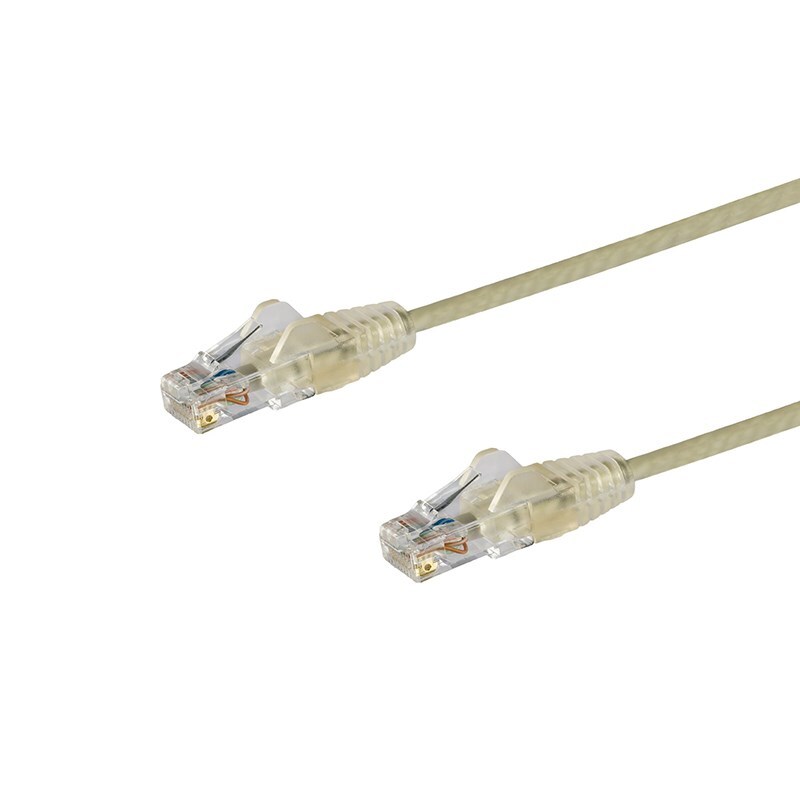

StarTech N6PAT50CMGRS grey 0.5 m slim CAT6 Ethernet cable

Key capabilities

36% slimmer cable profile

The slim CAT6 design improves flexibility and can help preserve airflow in crowded racks, cabinets and patch-panel installations.

CAT6 performance

Rated for CAT6 operation up to 250 MHz and data rates up to 10Gbps when the connected equipment and end-to-end channel support those speeds.

Up to 100W PoE++

Supports compatible IEEE 802.3bt Type 4 PoE applications, allowing data and power to be carried over the same network cable.

Pure copper, LSZH construction

Uses 28 AWG stranded pure bare copper conductors, 4-pair UTP wiring, 50-micron gold-plated RJ45 contacts and a Low Smoke Zero Halogen jacket.

What to know before buying

Both ends use male RJ45 connectors with snagless strain relief.
The cable is unshielded 4-pair UTP, not a shielded network cable.
Maximum network speed depends on the full Ethernet channel and connected equipment.
PoE power depends on compatible PoE sourcing equipment, the powered device and available power budget.

Australian version and official warranty

This StarTech N6PAT50CMGRS is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech N6PAT50CMGRS?

The StarTech N6PAT50CMGRS is a 0.5 m grey slim CAT6 Ethernet patch cable with snagless RJ45 connectors, designed for flexible routing in dense network installations.

What network performance does the N6PAT50CMGRS support?

The N6PAT50CMGRS is rated for CAT6 operation up to 250 MHz and supports data rates up to 10Gbps when the connected equipment and end-to-end network channel support those speeds.

Does the N6PAT50CMGRS support Power over Ethernet?

Yes. The N6PAT50CMGRS supports up to 100W PoE++ with compatible IEEE 802.3bt Type 4 power sourcing equipment, powered devices and an appropriate power budget.

What connectors are on the N6PAT50CMGRS?

The N6PAT50CMGRS has one male RJ45 connector at each end, with snagless strain relief to help protect the locking clips during installation and cable routing.

Why is the N6PAT50CMGRS described as a slim CAT6 cable?

The slim cable profile is 36% thinner than standard CAT6 network cables, helping improve routing flexibility and airflow in crowded racks, patch panels and cable-management spaces.

How is the N6PAT50CMGRS constructed?

The N6PAT50CMGRS uses 28 AWG stranded pure bare copper conductors in a 4-pair UTP construction, 50-micron gold-plated RJ45 contacts and a Low Smoke Zero Halogen (LSZH) jacket.

What is included with the N6PAT50CMGRS?

The package includes one 0.5 m slim CAT6 Ethernet patch cable.

What warranty applies to the N6PAT50CMGRS in Australia?

The Australian version of the N6PAT50CMGRS supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility requirements and product assessment.

(N6PAT50CMGRS)

Features and highlights

Slim 0.5 m CAT6 cable

Grey cable with a profile 36% thinner than standard CAT6 network cables for flexible routing in high-density installations.

Up to 10Gbps, 250 MHz

CAT6-rated performance up to 250 MHz and data rates up to 10Gbps with compatible network equipment and channel components.

100W PoE++ support

Supports compatible IEEE 802.3bt Type 4 PoE++ applications up to 100W for data and power over one Ethernet connection.

28 AWG pure copper and LSZH

4-pair UTP construction with stranded pure bare copper, 50-micron gold-plated contacts, snagless RJ45 ends and an LSZH jacket.

Key highlights

0.5 m grey slim CAT6 Ethernet patch cable.
Male RJ45 to male RJ45, snagless straight connectors.
Individually tested for CAT6 signal-integrity performance.
T568B wiring standard.
Designed for dense racks, closets, patch panels and compatible PoE devices.

Warranty confidence

Covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Specifications

StarTech N6PAT50CMGRS 0.5 m grey slim CAT6 Ethernet cable for space-conscious wired network connections.

General

Product

StarTech N6PAT50CMGRS slim CAT6 Ethernet cable

Warranty

Lifetime official StarTech.com manufacturer warranty

Cable category

CAT6, 250 MHz

Power Delivery

Up to 100W PoE++ with compatible IEEE 802.3bt Type 4 equipment

Performance

Maximum data transfer rate

Up to 10Gbps with compatible CAT6 equipment and a properly rated end-to-end network channel

Testing

Individually tested for Near-End Crosstalk (NEXT) and Return Loss (RL) performance

Hardware and connectors

Conductors

4-pair UTP, 28 AWG stranded pure bare copper

Connector 1

1 x RJ45

Connector 2

1 x RJ45

Connector contacts

50-micron gold-plated

Jacket

Low Smoke Zero Halogen (LSZH)

Connector style

Straight, snagless

Wiring standard

T568B

Physical and environmental

Colour

Grey

Cable length

0.5 m

Product length

50.0 cm

Product width

20.0 mm

Product height

10.0 mm

Product weight

17 g

Packaging and in the box

Package width

22.0 cm

Package length/depth

20.0 cm

Package height

0.1 mm

Shipping weight

26 g

Included in package

1 x Slim CAT6 Ethernet cable, LSZH

SKU	N6PAT50CMGRS
Barcode #	65030882668
Brand	Startech
Shipping Weight	0.0200kg
Shipping Width	0.001m
Shipping Height	0.015m
Shipping Length	0.012m

Lifetime manufacturer warranty

Official StarTech.com warranty in Australia

StarTech N6PAT50CMGRS is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
