StarTech.com · MDP2DPMM10

StarTech MDP2DPMM10 3m Mini DisplayPort to DisplayPort 1.2 Cable

3m Mini DisplayPort to DisplayPort 1.2 Cable designed for professional IT, electronics, security or workstation use.

Quick answer: MDP2DPMM10 connects a Mini DisplayPort source to a full-size DisplayPort display over a 3m cable.

Best forLonger desk, boardroom and workstation display runs requiring 4K 60Hz DisplayPort 1.2 connectivity.

Check before orderingConfirm the source uses Mini DisplayPort and the display uses full-size DisplayPort; both devices must support the desired 4K, MST and audio features.

Answers before you buy

Frequently asked questions

What is StarTech MDP2DPMM10?

It is a Mini DisplayPort male to DisplayPort male 4K video cable that connects a Mini DisplayPort source to a full-size DisplayPort display over a 3m cable.

Which connections or mounting method are provided?

Mini DisplayPort 20-pin male to DisplayPort 20-pin male

What performance is specified?

Up to 3840 × 2160 at 60Hz; HBR2 21.6Gbps; MST; optional audio; HDCP and DPCP

How is the product constructed?

Black 3m 32AWG PVC cable with gold-plated connectors and foil/braid shielding

What is the cable length?

The cable is 3m, or 10ft, long.

What maximum resolution is supported?

It supports up to 3840 × 2160 at 60Hz with compatible equipment.

What should be checked before ordering?

Confirm the source uses Mini DisplayPort and the display uses full-size DisplayPort; both devices must support the desired 4K, MST and audio features.

What warranty applies?

MDP2DPMM10 carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MDP2DPMM10)

Features & highlights

Why choose MDP2DPMM10?

?Purpose-built designMini DisplayPort 20-pin male to DisplayPort 20-pin male

?Specified performanceUp to 3840 × 2160 at 60Hz; HBR2 21.6Gbps; MST; optional audio; HDCP and DPCP

?Professional constructionBlack 3m 32AWG PVC cable with gold-plated connectors and foil/braid shielding

?Key capabilityThree-metre length supports flexible equipment placement while retaining DisplayPort 1.2 capability.

?Deployment advantageMST support enables compatible multi-display daisy chains from a capable source.

?Order with confidenceConfirm the source uses Mini DisplayPort and the display uses full-size DisplayPort; both devices must support the desired 4K, MST and audio features.

Compatibility reminder: Confirm the source uses Mini DisplayPort and the display uses full-size DisplayPort; both devices must support the desired 4K, MST and audio features.

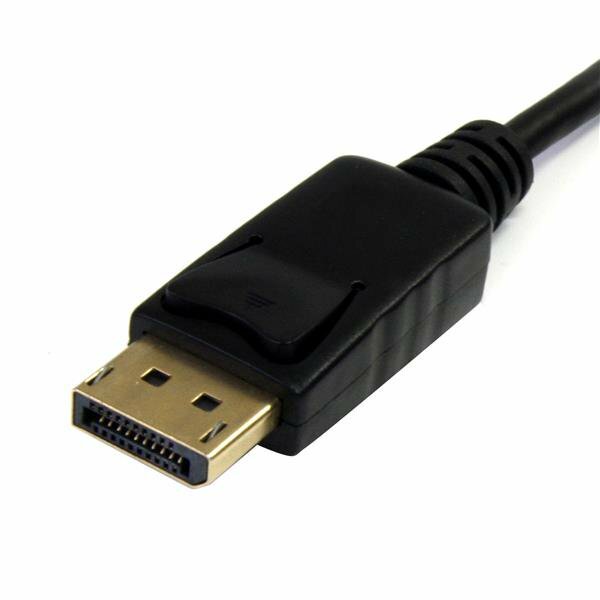

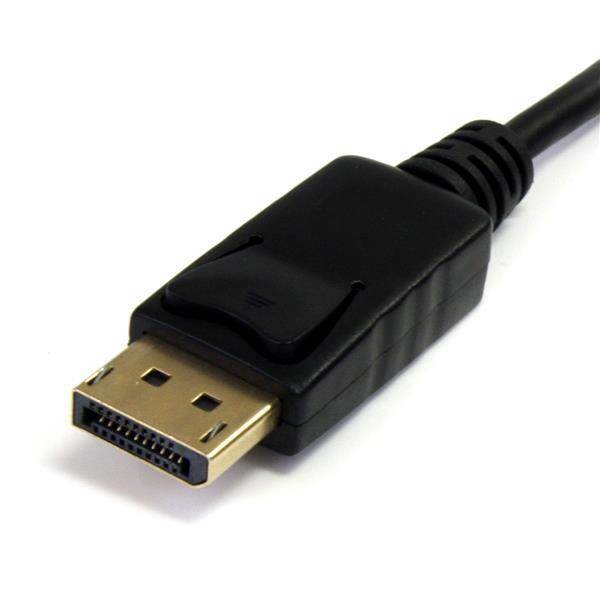

StarTech MDP2DPMM10 3m Mini DisplayPort to DisplayPort 1.2 Cable product image

Technical specifications

MDP2DPMM10 specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Connectors
Connector A	1 × Mini DisplayPort 20-pin male
Connector B	1 × DisplayPort 20-pin male
Hardware
Conductors	19
Connector Plating	Gold
Jacket / Shield	PVC; aluminium-Mylar foil with braid
Fire Rating	CMG
Performance
Maximum Resolution	3840 × 2160 at 60Hz
Bandwidth	HBR2, up to 21.6Gbps
Features	MST, optional audio, HDCP and DPCP
Physical Characteristics
Colour	Black
Cable Length	3m / 10ft
Wire Gauge	32AWG
Product Weight	103.9g
What's in the Box
Included	3m Mini DisplayPort-to-DisplayPort 1.2 cable

Sources: https://www.devicedeal.com.au/startech-3m-mini-dp-to-dp-1.2-adapter-cable and https://www.startech.com/

SKU	MDP2DPMM10
Barcode #	65030840507
Brand	STARTECH
Shipping Weight	0.1100kg
Shipping Width	0.140m
Shipping Height	0.020m
Shipping Length	0.155m
Shipping Cubic	0.000434000m3
