Startech DPPNLFM3 3ft DisplayPort Panel Mount Cable - F/M
Model # DPPNLFM3
-
SKU: DPPNLFM3
- Pick Up Available
- Australian Warranty
- Checkout Securely

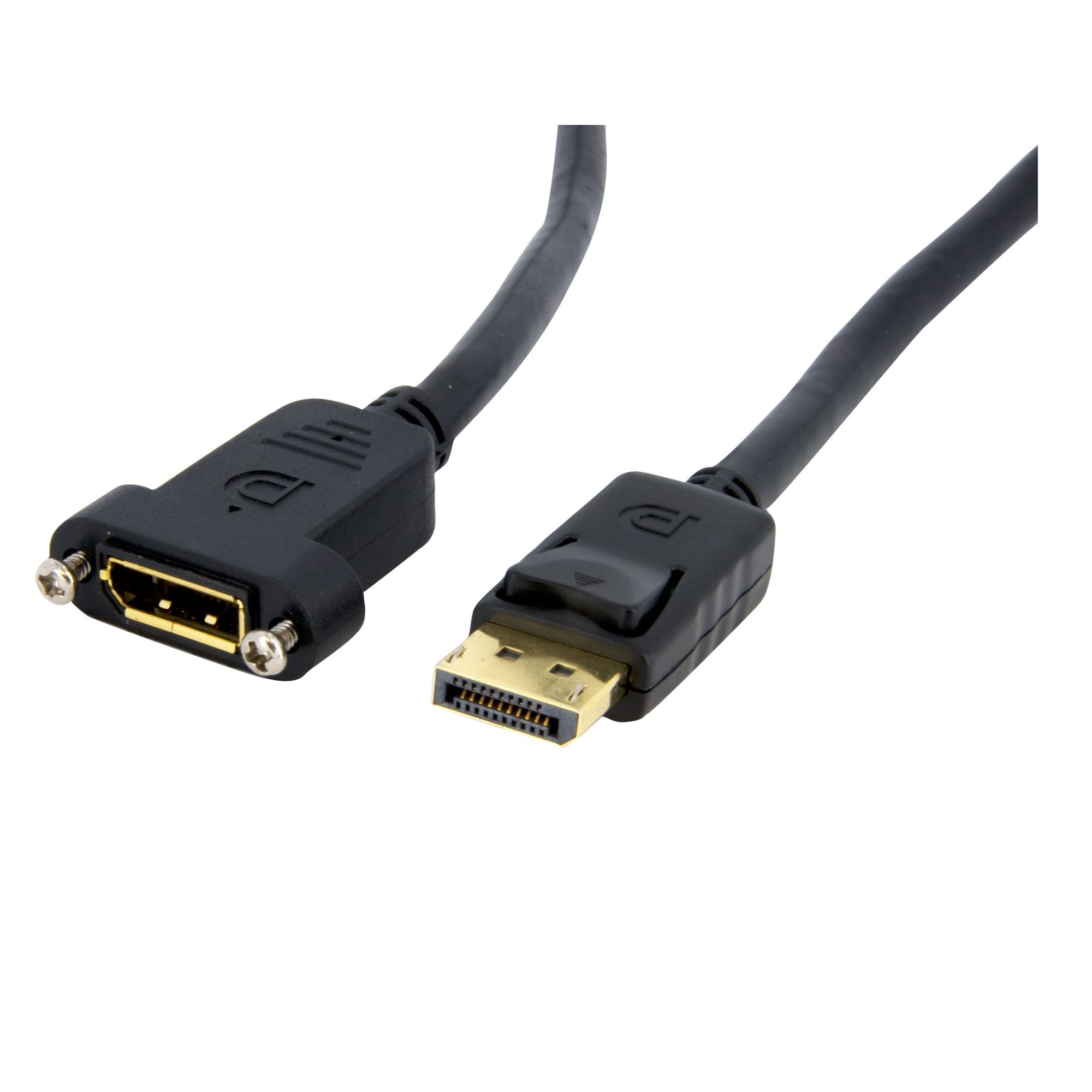

91cm DisplayPort 1.2 Panel-Mount Extension Cable
Extend a DisplayPort connection through a desk, wall plate, podium or enclosure using a 91cm male-to-female panel-mount cable.

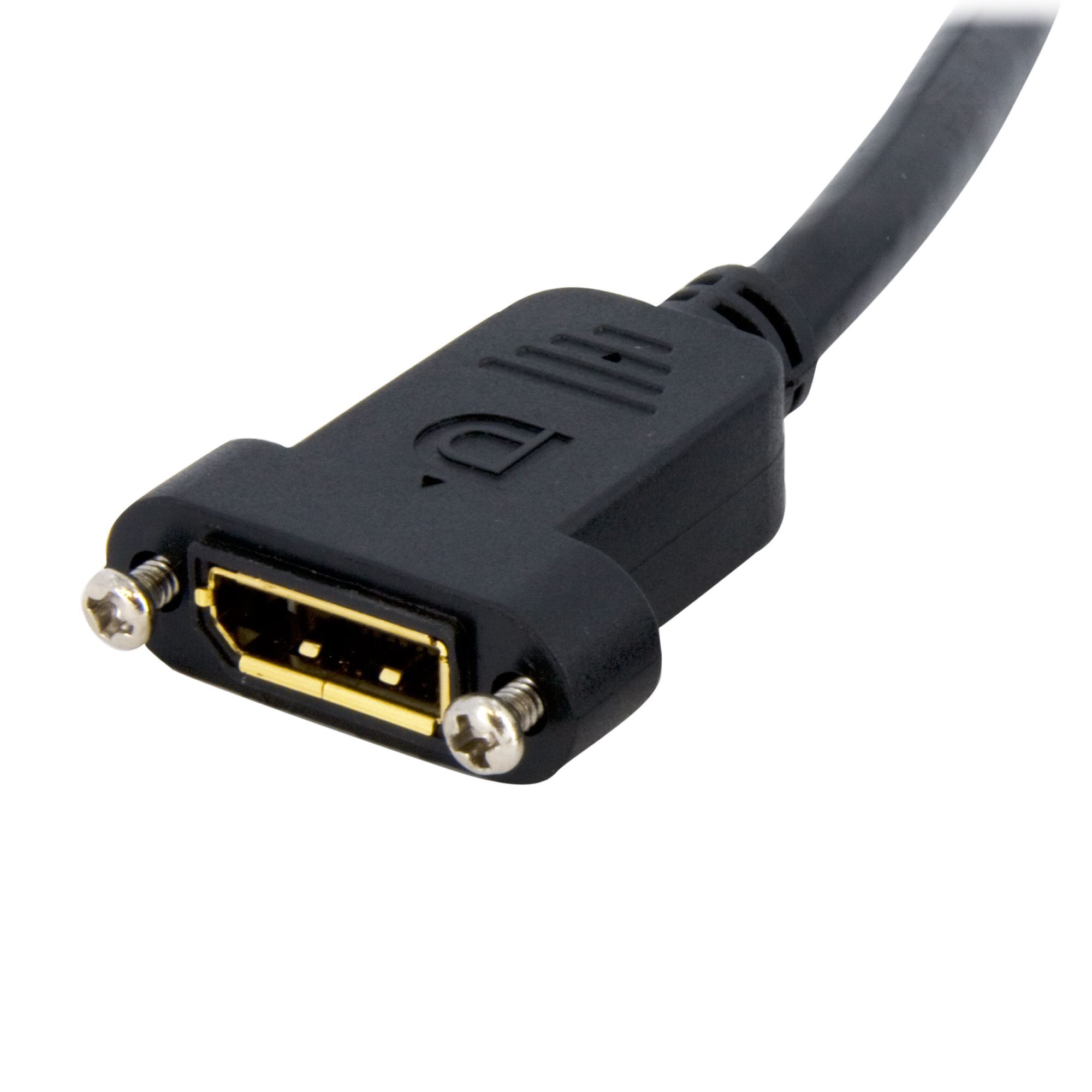

Panel-mount female port
Two 4-40 mounting screws secure the female DisplayPort socket to a compatible panel opening.
DisplayPort 1.2 bandwidth
Supports HBR2 bandwidth up to 21.6Gbps and high-resolution DisplayPort video.

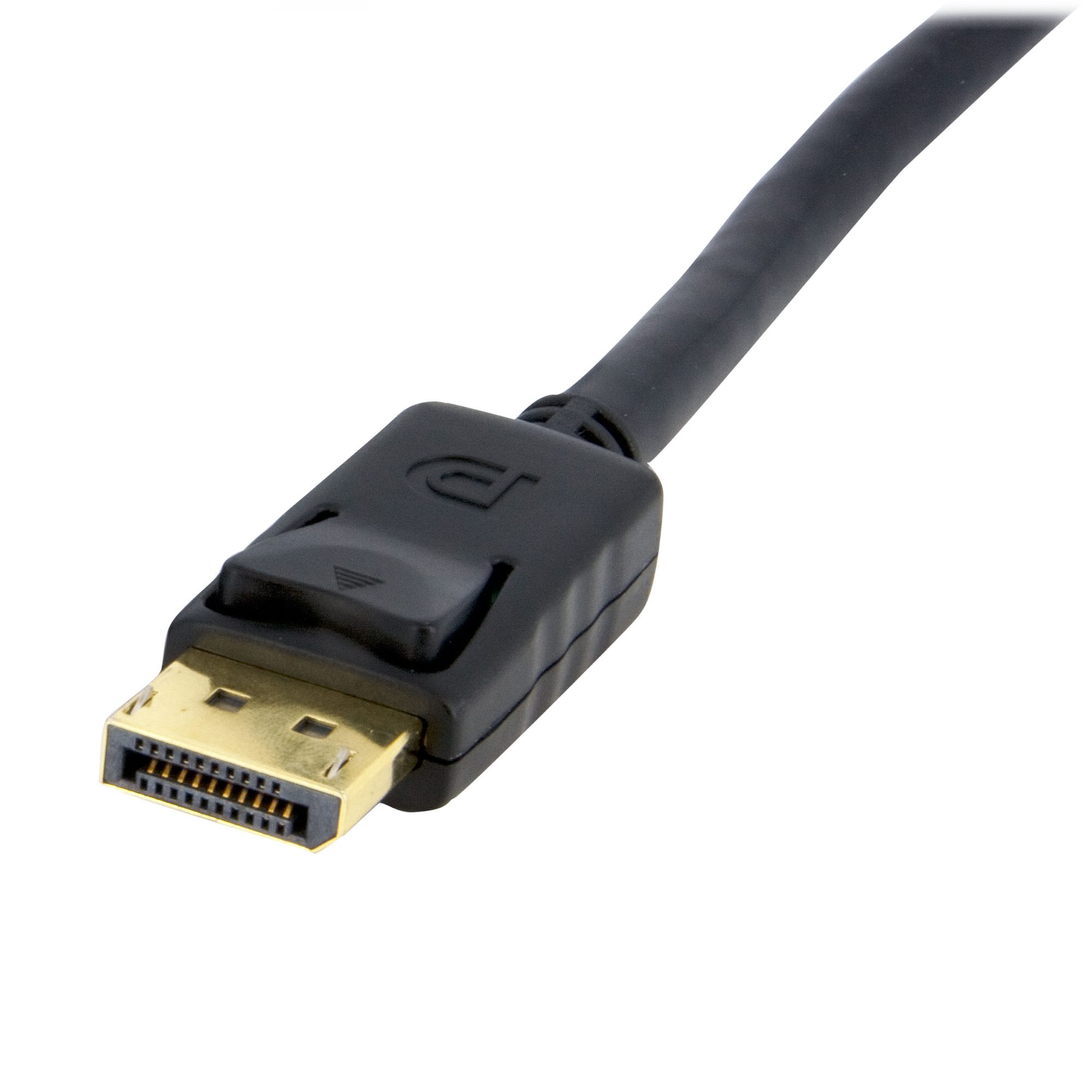

Secure host connector
The male DisplayPort plug has a latch to help prevent accidental disconnection.
What to know
This cable extends an existing DisplayPort connection; it does not convert video formats. Confirm panel dimensions and mounting-hole spacing before installation, and use compliant DisplayPort equipment for the required resolution.
Frequently asked questions
What is the DPPNLFM3 used for?
It extends a DisplayPort connection to a convenient female port on a desk, wall plate, podium or enclosure.
Which connectors are on the DPPNLFM3?
It has one latching DisplayPort male plug and one panel-mount DisplayPort female socket.
How is the DPPNLFM3 mounted?
The female socket has two 4-40 screws for attachment to a compatible panel opening.
How long is the DPPNLFM3?
The cable is 91cm, or 3ft, long.
What bandwidth does the DPPNLFM3 support?
It supports DisplayPort 1.2 HBR2 bandwidth up to 21.6Gbps.
What resolution does the DPPNLFM3 support?
The current official specification lists up to 3840 × 2400 at 60Hz with compatible equipment.
Does the DPPNLFM3 convert DisplayPort to another format?
No. It is a DisplayPort extension cable and does not convert the signal.
What warranty applies to the DPPNLFM3?
It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DPPNLFM3)
Features and highlights
- 91cm (3ft) DisplayPort 1.2 male-to-female extension cable
- Female panel-mount connector with two 4-40 screws
- Supports up to 21.6Gbps HBR2 bandwidth
- Current official specification lists up to 3840 × 2400 at 60Hz
- Supports eight-channel audio and 3D stereoscopic video
- Supports Multi-Stream Transport and Global Time Code
- Latching male DisplayPort connector
- 28 AWG copper conductors with gold-plated contacts
- Black PVC jacket with double-sided copper-foil shielding
- Lifetime StarTech.com manufacturer warranty
Specifications
| Product type | DisplayPort 1.2 panel-mount extension cable |
|---|---|
| Host connector | 1 × DisplayPort male, 20-pin, latching |
| Panel connector | 1 × DisplayPort female, 20-pin, with two 4-40 screws |
| Cable length | 91cm (3ft) |
| Bandwidth | Up to 21.6Gbps, HBR2 |
| Maximum resolution | Up to 3840 × 2400 at 60Hz in the current official specification |
| Audio | Up to eight channels with compatible DisplayPort equipment |
| DisplayPort features | Multi-Stream Transport, Global Time Code and 3D stereoscopic video |
| Conductor and gauge | Copper; 28 AWG |
| Connector contacts | Gold-plated |
| Jacket and colour | Black PVC |
| Shielding | Double-sided copper foil |
| Supplied catalogue weight | Approximately 79.4g |
| In the box | 1 × DisplayPort panel-mount cable |
| Warranty | Lifetime StarTech.com manufacturer warranty |
| SKU | DPPNLFM3 |
| Barcode # | 65030837026 |
| Brand | Startech |
| Shipping Weight | 0.0900kg |
| Shipping Width | 0.002m |
| Shipping Height | 0.020m |
| Shipping Length | 0.018m |
