STARTECH.COM | DP12-CABLE-6FTW

1.8m White VESA-Certified DisplayPort 1.2 Cable

Connect a DisplayPort computer, dock or MST hub to a DisplayPort display with a tidy 1.8m white cable certified for DisplayPort 1.2, 4K 60Hz and high-refresh video.

Certified signal path

VESA certification verifies DisplayPort 1.2 performance and backwards-compatible connectivity.

4K and high refresh

Supports 4K 60Hz, 1440p 144Hz and 1080p 240Hz with compatible source and display hardware.

Secure desktop fit

The 1.8m white TPE cable has molded strain relief and latching nickel-plated connectors.

What to know

Both endpoints need full-size DisplayPort. Maximum resolution and refresh rate depend on the source, display and any dock, hub or adapter between them.

Frequently asked questions

What maximum resolution does the DP12-CABLE-6FTW support?

It supports up to 4K at 60Hz with a compatible DisplayPort source and display.

How long is the DP12-CABLE-6FTW?

It is 1.8m or 6 feet long.

What connectors are fitted to the cable?

It has a full-size male DisplayPort connector at each end, with latches to help prevent accidental disconnection.

Does it support high-refresh-rate monitors?

Yes. Its 21.6Gbps HBR2 bandwidth can support examples such as 1440p at 144Hz and 1080p at 240Hz with compatible equipment.

Is the DP12-CABLE-6FTW active or passive?

It is a passive DisplayPort 1.2 cable and does not require external power.

Does it support MST and HDCP?

Yes. It supports Multi-Stream Transport and HDCP 1.3, subject to compatibility across the full signal path.

Is the cable VESA certified?

Yes. It is VESA certified for DisplayPort 1.2 performance and backwards compatibility.

What warranty applies to the DP12-CABLE-6FTW?

It is backed by a lifetime StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP12-CABLE-6FTW)

Features and highlights

VESA-certified DisplayPort 1.2 male-to-male cable
1.8m (6ft) length with a white TPE jacket
Supports up to 4K at 60Hz with compatible equipment
21.6Gbps HBR2 bandwidth supports 1440p 144Hz and 1080p 240Hz
Supports Multi-Stream Transport, HDCP 1.3 and 3D video
Carries up to eight uncompressed digital audio channels
28AWG construction with aluminum-mylar foil and braid shielding

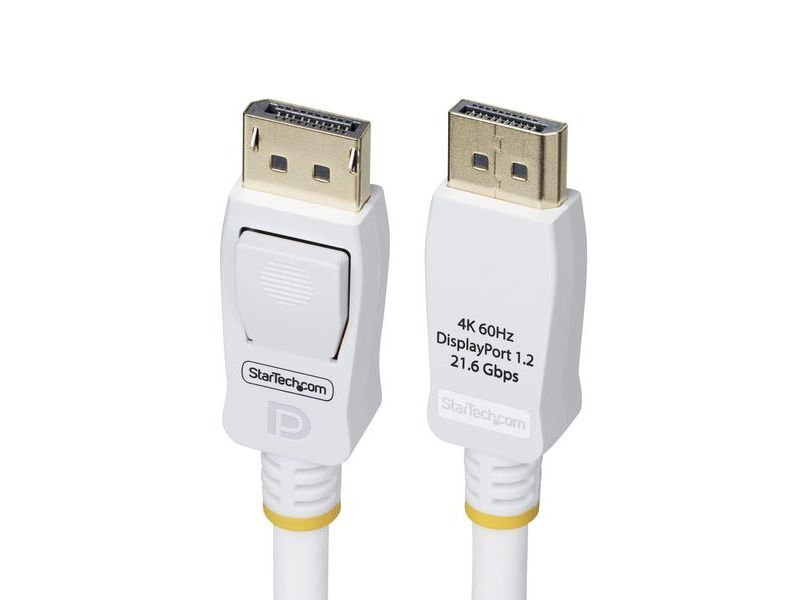

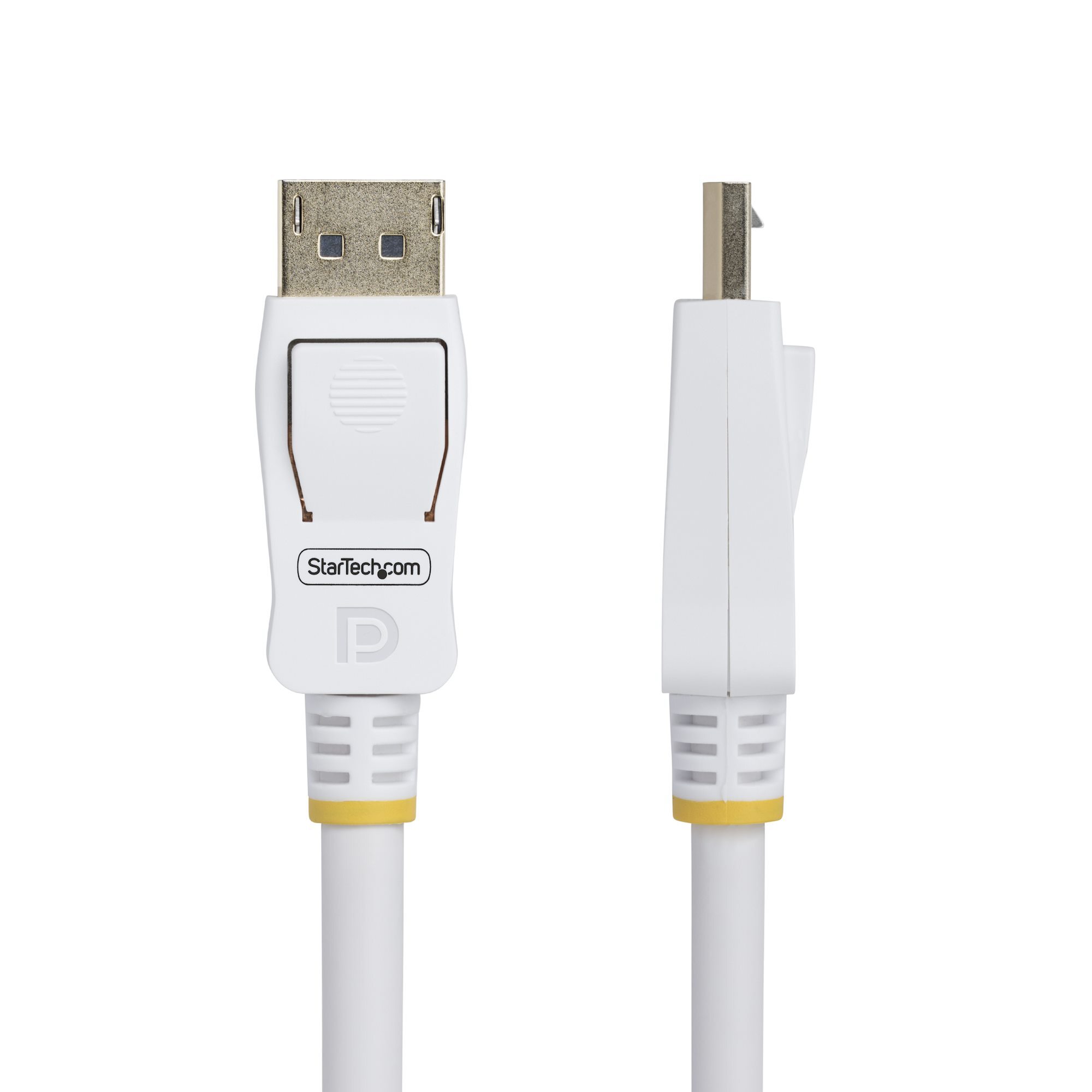

Latching nickel-plated connectors provide a secure connection

Compatibility check: Use with full-size DisplayPort source and display connections. High resolutions, refresh rates, MST and protected content require compatible hardware throughout the signal path.

Specifications

Cable type	Passive DisplayPort 1.2 cable; VESA certified
Connectors	DisplayPort male to DisplayPort male; latching, nickel plated
Length	1.8m (6ft)
Maximum resolution	Up to 4K at 60Hz
High-refresh examples	Up to 1440p 144Hz and 1080p 240Hz with compatible equipment
Bandwidth	21.6Gbps HBR2
Supported features	MST, HDCP 1.3, 3D video and up to eight uncompressed audio channels
Wire and shielding	28AWG; aluminum-mylar foil with braid
Jacket	White TPE; approximately 7.5mm outer diameter; VW-1 rated
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DP12-CABLE-6FTW
Barcode #	65030916011
Brand	Startech
Shipping Weight	0.1300kg
Shipping Width	0.002m
Shipping Height	0.022m
Shipping Length	0.018m

Warranty and Australian supply

DP12-CABLE-6FTW is supplied by DeviceDeal as an Australian-market product and carries the official Lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
