StarTech.com SMFIBLCLC1

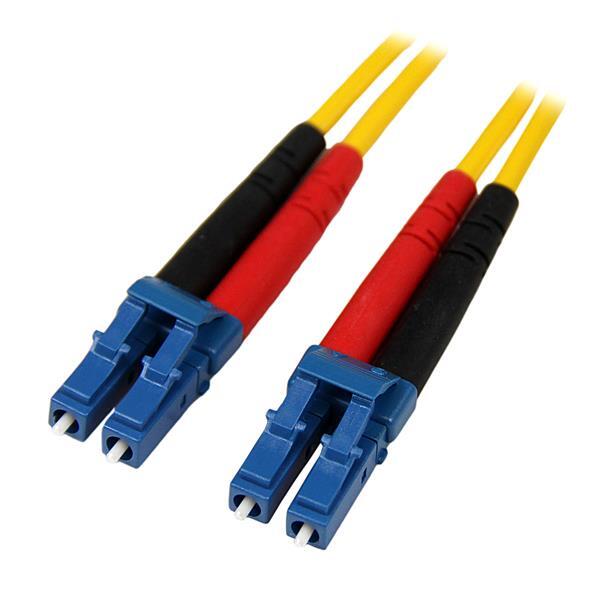

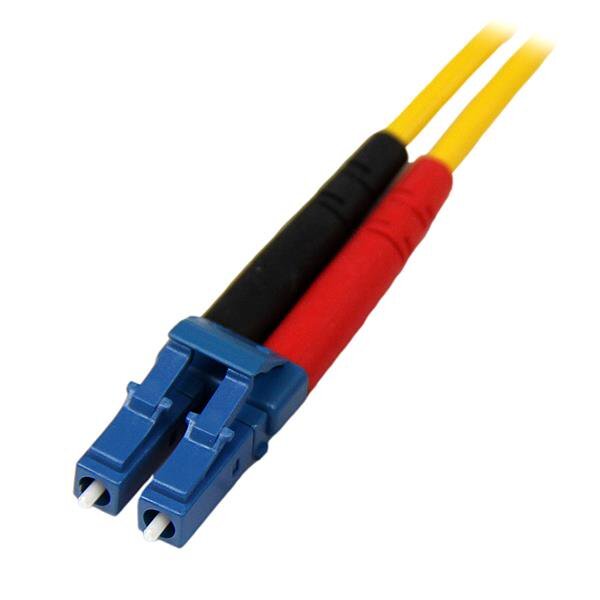

1m LC-LC OS1 single-mode duplex LSZH fibre cable

A 1m / 3.3ft yellow 9/125µm OS1 single-mode duplex fibre patch cable with LC connectors, LSZH jacket and cable ratings up to 100Gbps.

1m / 3.3ftOS1 9/125µmLC/LC duplex + LSZHLifetime warranty

StarTech SMFIBLCLC1 LC LC OS1 single-mode duplex fibre cable

Key capabilities

OS1 single-mode fibre

Designed for compatible single-mode Gigabit Ethernet, Fibre Channel and higher-speed optical links.

Up to 100Gbps cable rating

The exact technical table lists 10Gbps, 40Gbps and 100Gbps cable ratings.

Duplex LC connectors

Male LC duplex connectors are fitted at both ends.

LSZH flame-retardant jacket

Low-Smoke Zero-Halogen construction is intended for environments where smoke/toxicity considerations apply.

What to know before buying

Confirm the optical equipment requires OS1 9/125µm single-mode fibre with duplex LC connectors. Link distance and supported network rate ultimately depend on the transceivers and optical budget.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How long is the StarTech SMFIBLCLC1?

1m / 3.3ft

What fibre type is used?

OS1 9/125µm single-mode fibre.

What connectors are fitted?

LC duplex male connectors at both ends.

What cable ratings are listed?

10Gbps, 40Gbps and 100Gbps.

Is the jacket LSZH rated?

Yes.

What colour is the cable?

Yellow.

What operating temperature is listed?

-20°C to 60°C.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SMFIBLCLC1)

Features and highlights

OS1 single-mode fibre

Designed for compatible single-mode Gigabit Ethernet, Fibre Channel and higher-speed optical links.

Up to 100Gbps cable rating

The exact technical table lists 10Gbps, 40Gbps and 100Gbps cable ratings.

Duplex LC connectors

Male LC duplex connectors are fitted at both ends.

LSZH flame-retardant jacket

Low-Smoke Zero-Halogen construction is intended for environments where smoke/toxicity considerations apply.

1m / 3.3ft
OS1 9/125µm
LC/LC duplex + LSZH
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SMFIBLCLC1.

Warranty Information

Warranty	Lifetime

Hardware

Fiber Size	9/125
Fire Rating	LSZH Rated (Low Smoke Zero Halogen)

Performance

Cable Rating	10Gbps / 40Gbps / 100Gbps
Fiber Classification	OS1
Maximum Data Transfer Rate	100Gbps
Type	Single Mode

Connector(s)

Connector A	1 - Fiber Optic LC Duplex Male
Connector B	1 - Fiber Optic LC Duplex Male

Environmental

Humidity	0~90% RH
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Cable Length	3.3 ft [1 m]
Color	Yellow
Product Height	0.000
Product Length	3.3 ft [1 m]
Product Width	0.000
Weight of Product	0.7 oz [19 g]

Packaging Information

Package Height	0.6 in [14 mm]
Package Length	8.7 in [22 cm]
Package Quantity	1
Package Width	7.9 in [20 cm]
Shipping (Package) Weight	1 oz [28 g]

What's in the Box

Included in Package	1 - 1m Single Mode Duplex Fiber Patch Cable LC-LC

SKU	SMFIBLCLC1
Barcode #	65030853019
Brand	STARTECH
Shipping Weight	0.0300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
