STARTECH OM4RLCLC50M 50m (164ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable

50m LC-to-LC duplex OM4 multimode fibre cable for high-bandwidth 40GbE and 100GbE links in riser spaces.

Quick answer: A 50m OM4 50/125µm LC duplex patch lead for 1/10/40/100Gbps multimode networks, with an OFNR riser-rated Erika Violet jacket.

Best forLong equipment-room, riser and data-centre runs between compatible LC multimode transceivers, switches, patch panels and servers.

Check before orderingBoth ends are LC duplex UPC and the cable is multimode OM4. Confirm transceiver type, supported link distance and OFNR suitability.

Answers before you buy

Frequently asked questions

What is OM4RLCLC50M?

OM4RLCLC50M is an LC-to-LC duplex OM4 50/125µm multimode fibre optic patch cable.

What network speeds does it support?

StarTech rates this cable for 1, 10, 40 and 100 Gigabit Ethernet applications with compatible equipment.

Which connectors are fitted?

Both ends use LC duplex male connectors with UPC-polished fibre ends.

Is it multimode or singlemode?

It is OM4 laser-optimised multimode fibre and is not a singlemode cable.

What do I need to check before ordering?

Both ends are LC duplex UPC and the cable is multimode OM4. Confirm transceiver type, supported link distance and OFNR suitability.

Is the jacket riser rated?

Yes. The cable has an OFNR flame-retardant riser-rated jacket for suitable vertical pathways.

Is it backward compatible with OM3?

Yes, it can be used in compatible OM3 environments, while the link capability remains limited by every component in the channel.

What warranty applies?

OM4RLCLC50M carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(OM4RLCLC50M)

Features & highlights

Why choose OM4RLCLC50M?

?50m OM4 multimodeLaser-optimised 50/125µm fibre supports current high-speed optical networks.

?Up to 100GbpsRated for 1, 10, 40 and 100 Gigabit Ethernet applications.

?LC duplex UPCPrecision ceramic ferrules promote accurate alignment and low insertion loss.

?OFNR riser ratedFlame-retardant jacket is designed for vertical riser pathways.

?Erika Violet jacketTIA-recognisable colour helps distinguish OM4 in dense installations.

?Compact unibootDesigned for easier handling in high-density patching environments.

Compatibility reminder: Both ends are LC duplex UPC and the cable is multimode OM4. Confirm transceiver type, supported link distance and OFNR suitability.

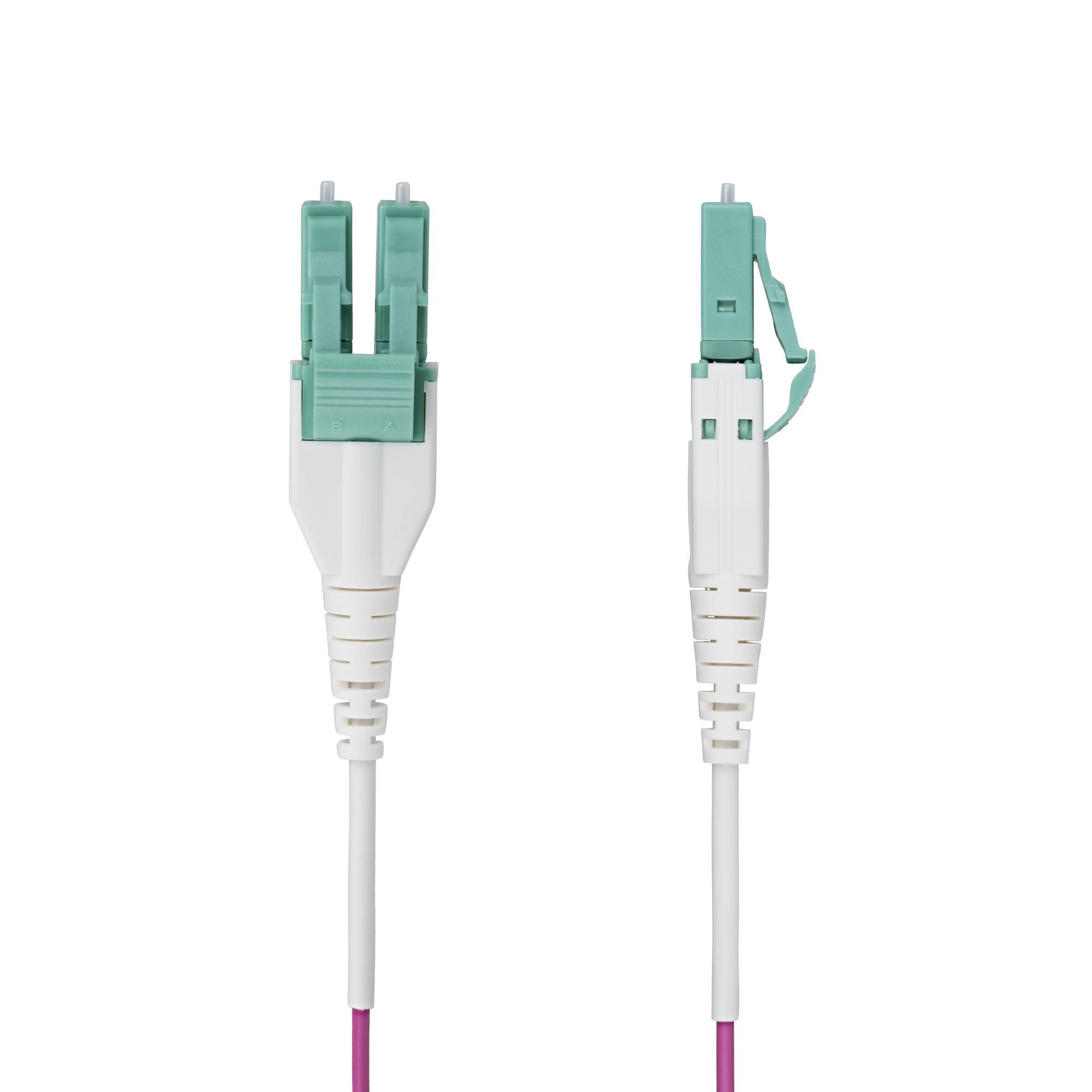

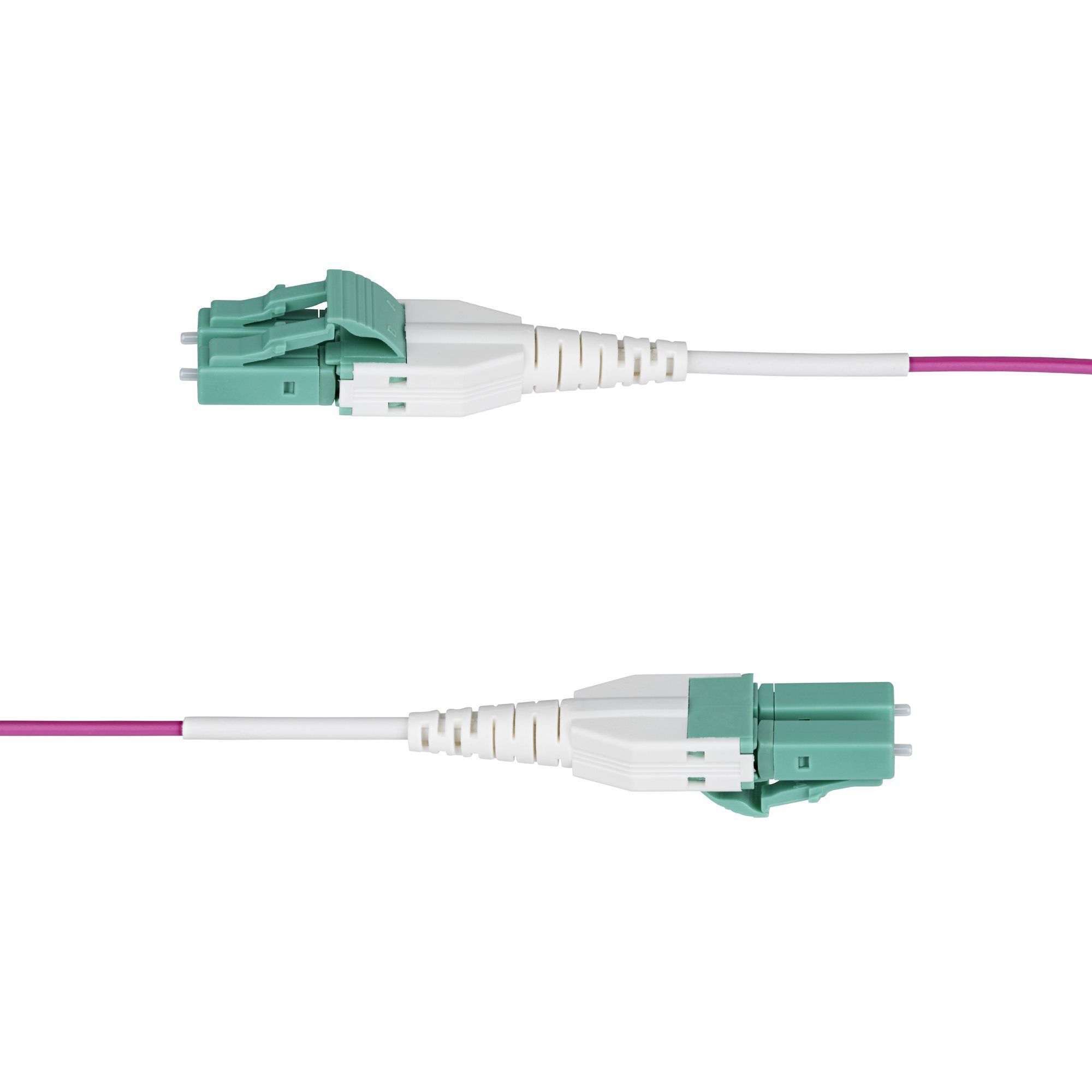

STARTECH OM4RLCLC50M 50m (164ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable product image

Technical specifications

OM4RLCLC50M specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	Lifetime
Hardware
Cable Type	OM4 laser-optimised multimode fibre (LOMMF)
Fibre Size	50/125µm
Cable Jacket Rating	OFNR Riser
Connector Polish	UPC
Cable Construction	Duplex uniboot with ceramic ferrules
Performance
Maximum Data Rate	100Gbps
Network Compatibility	1/10/40/100Gbps
Optical Wavelengths	850nm and 1300nm
Fibre Mode	Multimode
Connectors
Connector A	2 - LC Duplex Male
Connector B	2 - LC Duplex Male
Physical Characteristics
Colour	Erika Violet
Cable Length	50m
Cable Outside Diameter	1.6mm
Product Weight	140g
Environmental
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 60°C
Humidity	0% to 90% RH
What's in the Box
Included	1 - LC to LC OM4 multimode fibre cable

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	OM4RLCLC50M
Barcode #	65030920834
Brand	Startech
Shipping Weight	0.3000kg
