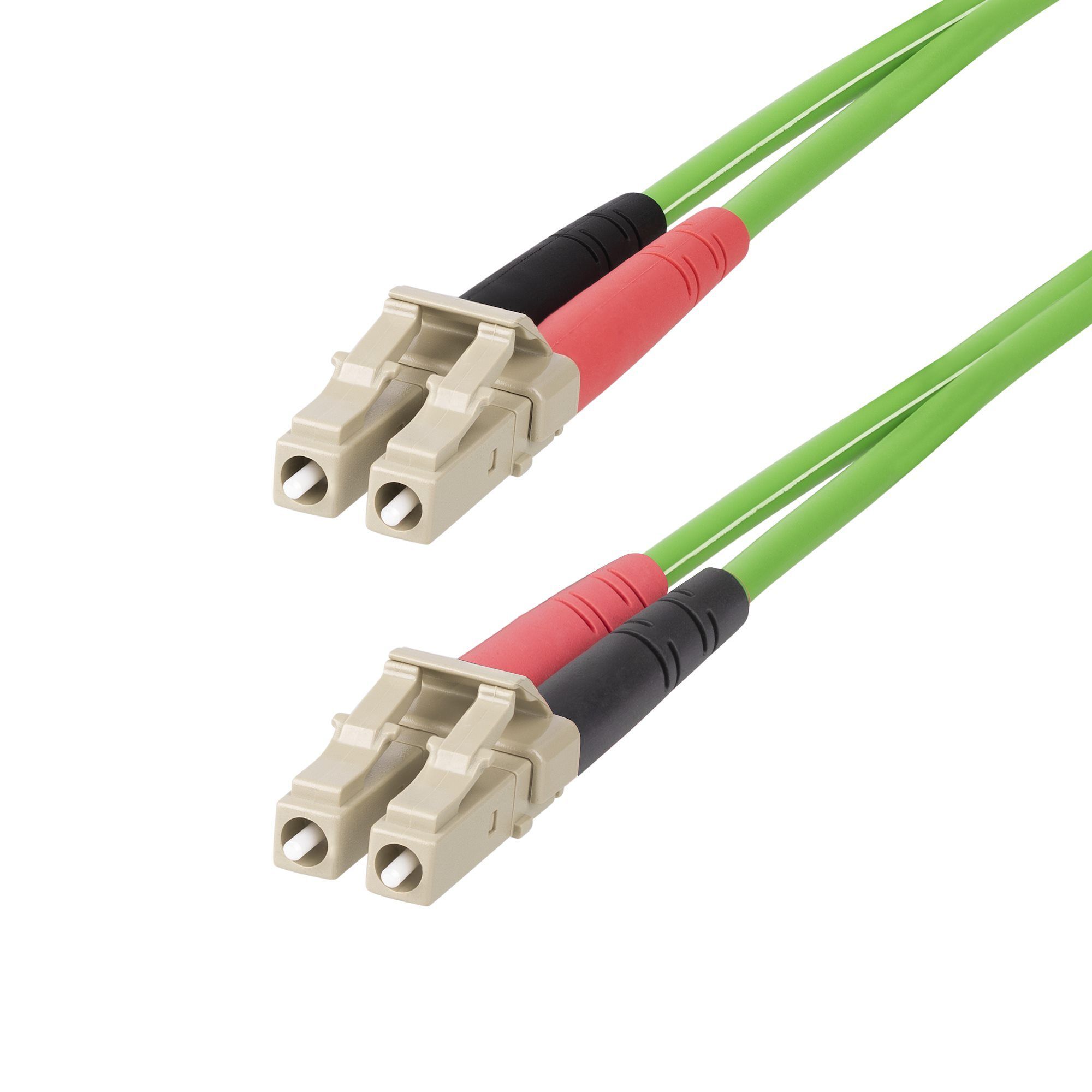

StarTech LCLCL-3M-OM5-FIBER 3m LC/LC OM5 Multimode Fiber Cable
Model # 5978420
-
SKU: LCLCL-3M-OM5-FIBER
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech LCLCL-3M-OM5-FIBER 3m LC-to-LC OM5 Multimode Fibre Cable
3m LC-to-LC OM5 Multimode Fibre Cable designed for professional IT, office or network applications.
Frequently asked questions
What is StarTech LCLCL-3M-OM5-FIBER?
It is a OM5 duplex multimode fibre patch cable that connects LC duplex multimode equipment across a 3m cable run with support for network rates up to 100Gbps.
Which connections or mounting method are provided?
LC duplex male connector at each end with UPC polish
What performance is specified?
OM5 50/125µm multimode fibre; supports 1, 10, 40 and 100Gbps; 850953nm VCSEL and 1300nm LED
How is the product constructed?
Green 3m LOMMF zipcord cable with 2.9mm LSZH flame-retardant jacket
What network speeds are supported?
The cable is rated for 1Gbps, 10Gbps, 40Gbps and 100Gbps applications when used with compatible equipment and link designs.
Is the jacket suitable for low-smoke installations?
Yes. The cable uses an LSZH flame-retardant jacket to reduce smoke and halogen emissions compared with standard PVC.
What should be checked before ordering?
Confirm both devices use LC duplex multimode interfaces, the link budget supports the required distance and the installation requires an LSZH jacket.
What warranty applies?
LCLCL-3M-OM5-FIBER carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides.
(LCLCL-3M-OM5-FIBER)
Why choose LCLCL-3M-OM5-FIBER?
LCLCL-3M-OM5-FIBER specifications
Exact-model specifications for compatibility checking. Measurements may be rounded.
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Hardware | |
| Fibre Classification | OM5 multimode |
| Fibre Size | 50/125µm |
| Cable Construction | LOMMF zipcord |
| Jacket Type | LSZH flame-retardant |
| Connector Polish | UPC |
| Connector Style | Straight |
| Performance | |
| Maximum Data Transfer Rate | 100Gbps |
| Supported Network Rates | 1Gbps, 10Gbps, 40Gbps and 100Gbps |
| Supported Wavelengths | 850953nm VCSEL; 1300nm LED |
| Modal Bandwidth | 4700MHz·km at 850nm; 2470MHz·km at 953nm |
| Insertion Loss | ?0.3dB |
| Return Loss | ?30dB |
| Minimum Bend Radius | 6cm loaded; 3cm unloaded |
| Testing Standard | Individually tested to meet or exceed TIA/EIA-568 insertion-loss requirements |
| Backward Compatibility | OM4 and OM3 for compatible 10Gb links |
| Connectors | |
| Connector A | LC duplex male |
| Connector B | LC duplex male |
| Environmental | |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 090% |
| Physical Characteristics | |
| Cable Length | 3m / 9.8ft |
| Colour | Green |
| Cable Outer Diameter | 2.9mm |
| Product Height | 11mm |
| Product Width | 12mm |
| What's in the Box | |
| Included | 1 × 3m OM5 LC-to-LC duplex fibre cable |
Sources: https://www.devicedeal.com.au/startech-lclcl-3m-om5-fiber-3m-lc-lc-om5-multimode and https://www.startech.com/
| SKU | LCLCL-3M-OM5-FIBER |
| Barcode # | 65030900942 |
| Brand | Startech |
| Shipping Weight | 12.6000kg |
This Australian-version product is supplied by DeviceDeal and is covered by the limited lifetime manufacturer warranty term listed for this exact product.
- Keep your DeviceDeal tax invoice as proof of purchase.
- Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
- Warranty service does not replace rights that may apply under Australian Consumer Law.
