(VIGI-C440-4mm)

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	2.8 mm: F1.6 4 mm: F1.6
Lens	Fixed focal lens (2.8 mm / 4 mm)
Lens Mount	M12
Minimum Illumination	0 lux with IR/white Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
IR Working Distance	30m
Pan/Tilt Range	Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Illumination Distance	30m (LED)
Viewing Angle	(2.8 mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122° (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°

LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	2.8 mm: F1.6 4 mm: F1.6
FOV	2.8mm: Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122° 4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount	M12
DORI Distance	2.8 mm Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft) 4 mm Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 85° Rotate: 0° to 360°

ILLUMINATOR
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	Quantity: 2 Range: 30m
Illuminator On/Off Control	Unified/ Scheduled/ Auto

VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Area Intrusion Detection • Line-Crossing Detection • People Detection • Vehicle Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Button	Reset Button
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	VIGI Network Camera Quick Start Guide Mounting Accessories
Dimensions( H X W X D )	123 × 123 × 84 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.25 Kg
Gross Weight	0.4 Kg
Max. Power Consumption	12V DC: Max 5.5W PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Protection	N/A
Product Dimensions (L x W x H)	123× 83× 123 mm
Certifications	CE, FCC, RCM, BSMI, VCCI, RoHS

VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

SKU	VIGI-C440-4mm
Barcode #	4897098683651
Brand	TP-LINK
Shipping Weight	1.0000kg

Manufacturer Warranty: 3 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

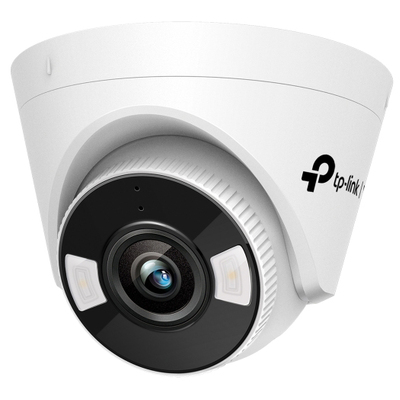

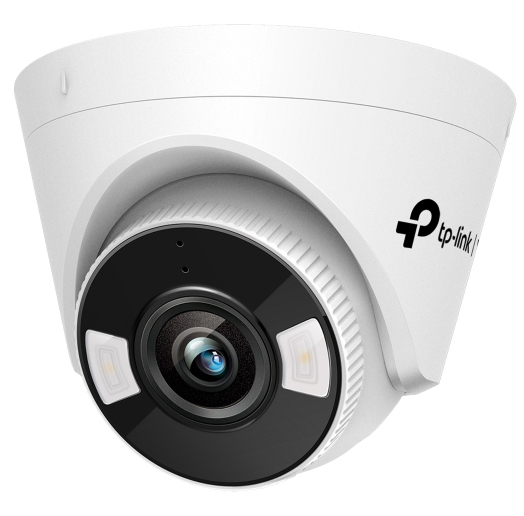

TP-Link VIGI 4MP C440(4mm) Full-Colour Turret Network Camera, 4mm Lens, Smart Detection, 3YW
