Controller monitoring
Provides access to current and historical controller readings from a compatible mobile device.
The TP-SC-WIFI adds wireless monitoring and control access to selected Tycon MPPT solar charge controllers. It connects through an RS485 Modbus port, draws power from the controller and works with the vendor mobile application.
Key supplied and exact-model details for the TP-SC-WIFI.
Provides access to current and historical controller readings from a compatible mobile device.
Supports controller setup and manual load on/off control through the vendor application.
Draws power from the RS485 port, so a separate power adapter is not required.
The adapter and mobile device must use the same 2.4GHz Wi-Fi access point for initial connection.
Official compatibility is stated for TP-SC24-30N-MPPT, TP-SC24-60N-MPPT and TP-SC48-60P-MPPT.
The vendor describes a water-resistant design and industrial operating range.
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Helpful answers based on the supplied and exact-model product information.
It adds Wi-Fi-based monitoring and control access to selected Tycon MPPT solar charge controllers.
The vendor lists TP-SC24-30N-MPPT, TP-SC24-60N-MPPT and TP-SC48-60P-MPPT.
No. It is powered from the controllers RS485 port.
A 2.4GHz Wi-Fi access point is required for the initial connection.
The official product information states that compatible controllers can be monitored, configured and their load output manually controlled through the mobile application.
DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturers terms and product assessment.
(TP-SC-WIFI)

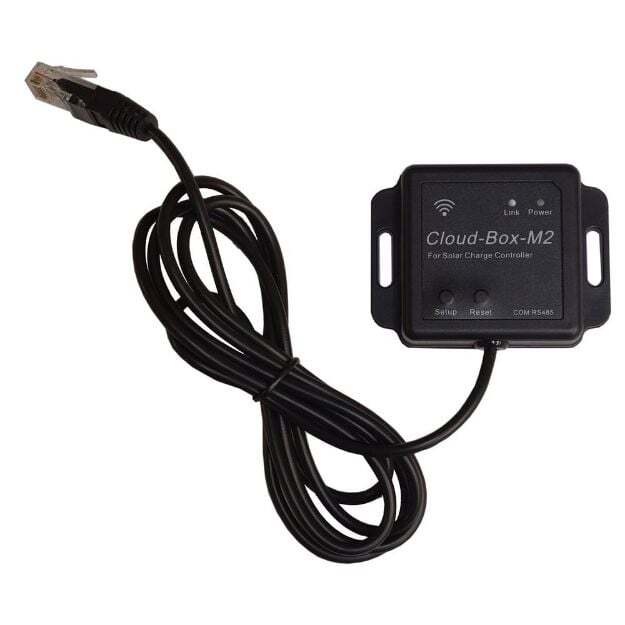

Tycon Power TP-SC-WIFI
| Product Details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-SC-WIFI |
| Product Type | Wi-Fi monitoring adapter for solar charge controllers |
| Compatibility | |
| Compatible Controllers | TP-SC24-30N-MPPT, TP-SC24-60N-MPPT and TP-SC48-60P-MPPT |
| Controller Interface | RS485 Modbus serial port |
| Mobile Platforms | Android and iOS vendor application |
| Wireless and Power | |
| Wi-Fi Band for Initial Setup | 2.4GHz |
| Stated Wireless Range | Up to 100m |
| Power Source | Powered through the controller RS485 port; no external power source required |
| Environmental | |
| Design | Water resistant |
| Temperature Use | Industrial temperature range stated by manufacturer |
| SKU | TP-SC-WIFI |
| Brand | TYCON POWER |
| Shipping Weight | 0.2000kg |
DeviceDeal is an authorised reseller of Tycon Power. The TP-SC-WIFI is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
