Tycon Power • TP-SCPOE-2448-HP

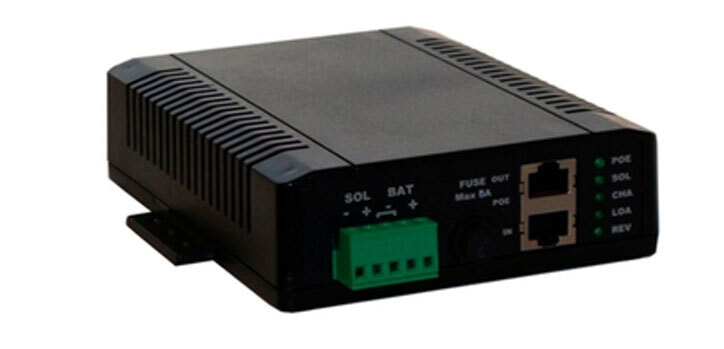

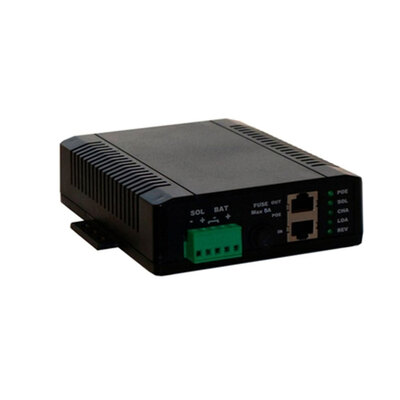

Tycon Power TP-SCPOE-2448-HP 24V 10A PWM Solar Controller with 48V 30W Passive PoE

The TP-SCPOE-2448-HP combines 24V 10A PWM charging from solar and/or passive PoE with a regulated 48V 30W passive PoE output and a 24V auxiliary output.

24V 10A PWM charging 48V 30W passive PoE 24V auxiliary output Up to 60W total load

Product highlights

Key supplied and exact-model details for the TP-SCPOE-2448-HP.

Dual charging inputs

Charges the 24V battery from a solar panel and/or passive PoE source.

Regulated 48V PoE

Provides a regulated 48VDC passive PoE output rated at 30W.

Secondary DC output

Provides a regulated 24VDC 1.5A auxiliary output.

60W total capability

Supports up to 60W total device load across the outputs.

Low self-consumption

The manufacturer states controller self-consumption below 0.5W.

Protected charging

Includes short-circuit, reverse-current, over-voltage, over-charge and over-discharge protection.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

What does the TP-SCPOE-2448-HP provide?

It combines 24V 10A PWM battery charging with a 48V 30W passive PoE output and a 24V 1.5A auxiliary output.

Can it charge from both solar and PoE?

Yes. It supports solar and passive PoE charging inputs.

What is the maximum total connected load?

The manufacturer states up to 60W total device load.

Is the 48V output regulated?

Yes. The exact product page identifies the 48V passive PoE and 24V auxiliary outputs as regulated.

Does it include electrical protection?

Yes. The vendor lists short-circuit, reverse-current, over-voltage, over-charge and over-discharge protection.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturer’s terms and product assessment.

(TP-SCPOE-2448-HP)

Technical specifications

Tycon Power TP-SCPOE-2448-HP

Product Details
Brand Tycon Power
Model TP-SCPOE-2448-HP
Product Type PWM solar and PoE charge controller
Charging
Battery System 24V
Controller Rating 10A PWM
Charging Inputs Solar panel and/or passive PoE
Input Priority Solar input takes priority when available
Outputs
Passive PoE Output 48VDC, 30W
Auxiliary Output 24VDC, 1.5A
Maximum Total Device Load 60W
Self-Consumption Less than 0.5W
Connections and Protection
PoE Connections 2 × shielded RJ45 for PoE input and output
Solar/Battery Terminals Screw terminals accepting wire up to 10AWG
Protection Short circuit, reverse current, over voltage, over charge and over discharge
Fuse External replaceable fuse
SKU TP-SCPOE-2448-HP
Brand TYCON POWER
Shipping Weight 1.0000kg
