Remote measurement
Monitors voltage, current and temperature through a browser or SNMP.
Tycon Power TPDIN-Monitor-WEB3 PowerSens Remote Monitor and Controller with 4 × 10A Relays
Model # TPDIN-MONITOR-WEB3
-
SKU: TPDIN-MONITOR-WEB3
Don't pay: $437.00
$373.00
SAVE $64.00 (15%)
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
Tycon Power • TPDIN-MONITOR-WEB3

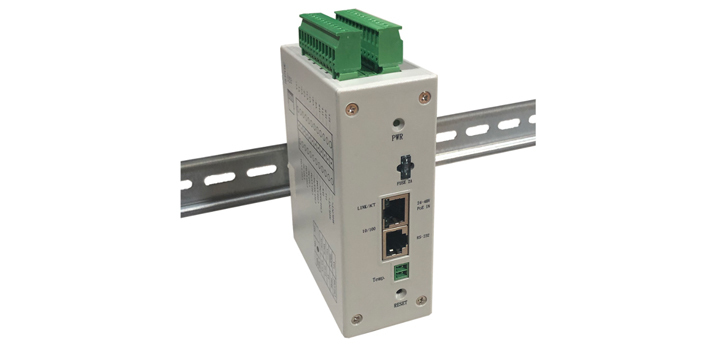

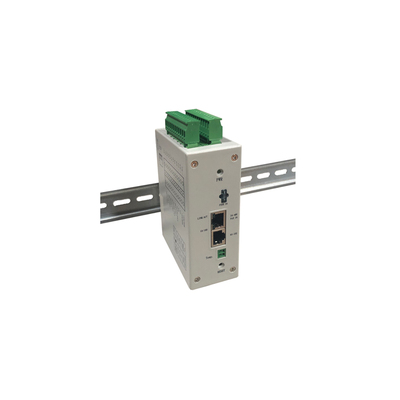

Tycon Power TPDIN-Monitor-WEB3 PowerSens Remote Monitor and Controller with 4 × 10A Relays
The TPDIN-Monitor-WEB3 is a network-connected monitoring and control platform that measures four voltages, four currents and two temperatures while controlling equipment through four onboard 10A relays.
4 voltage channels 4 current channels 2 temperature inputs 4 × 10A relays
Product highlights
Key supplied and exact-model details for the TPDIN-MONITOR-WEB3.
Four control relays
Includes two normally closed and two normally open 10A relays.
Automation rules
Relays can respond to voltage, current, temperature, time, ping watchdog or compatible MPPT-controller data.
Logging and alerts
Provides onboard data logging, history graphs and scheduled or threshold-based email alerts.
MPPT integration
Connects to compatible Tycon MPPT controllers through a serial cable to read and control system data.
Flexible powering
Can be powered by 9-57VDC, IEEE 802.3af PoE, passive PoE or wire terminal input.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Frequently asked questions
Helpful answers based on the supplied and exact-model product information.
What can the TPDIN-Monitor-WEB3 measure?
It can monitor four voltages, four currents and two temperatures.
How many relays are included?
It includes four 10A relays: two normally closed and two normally open.
Can it send alerts?
Yes. It supports scheduled or threshold-based email alerts.
Can relay actions be automated?
Yes. Relay control can be based on voltage, current, temperature, time, ping watchdog and compatible MPPT data.
How can it be powered?
The official information lists 9-57VDC, IEEE 802.3af PoE, passive PoE and wire-terminal power options.
What warranty applies?
DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturers terms and product assessment.
(TPDIN-MONITOR-WEB3)
Technical specifications
Tycon Power TPDIN-MONITOR-WEB3
| Product Details | |
|---|---|
| Brand | Tycon Power |
| Model | TPDIN-Monitor-WEB3 |
| Product Line | TPDIN PowerSens |
| Product Type | Remote monitor and controller |
| Monitoring Inputs | |
| Voltage Channels | 4 |
| Current Channels | 4 |
| Temperature Channels | 2 |
| Bi-Directional Current Channels | 2 |
| External Shunt Support | Supported on one current input |
| Control | |
| Relays | 4 × 10A |
| Relay Types | 2 normally closed and 2 normally open |
| Automatic Control Inputs | Voltage, current, temperature, time, ping watchdog and MPPT data |
| One-Click Relay Cycle | Programmable power-cycle timing |
| Network and Software | |
| Access | Web browser and SNMP |
| Functions | Data logging, graphing, email alerts and remote control |
| Mobile Access | Tycon iOS and Android apps |
| Discovery | Vendor network-discovery utility |
| Power and Integration | |
| Power Input | 9-57VDC, IEEE 802.3af PoE, passive PoE or wire terminal |
| MPPT Interface | Serial connection to compatible Tycon MPPT controllers |
| Protection | Built-in surge protection |
| Connections | Removable wire-terminal connectors |
| SKU | TPDIN-MONITOR-WEB3 |
| Brand | TYCON POWER |
| Shipping Width | 0.500m |
