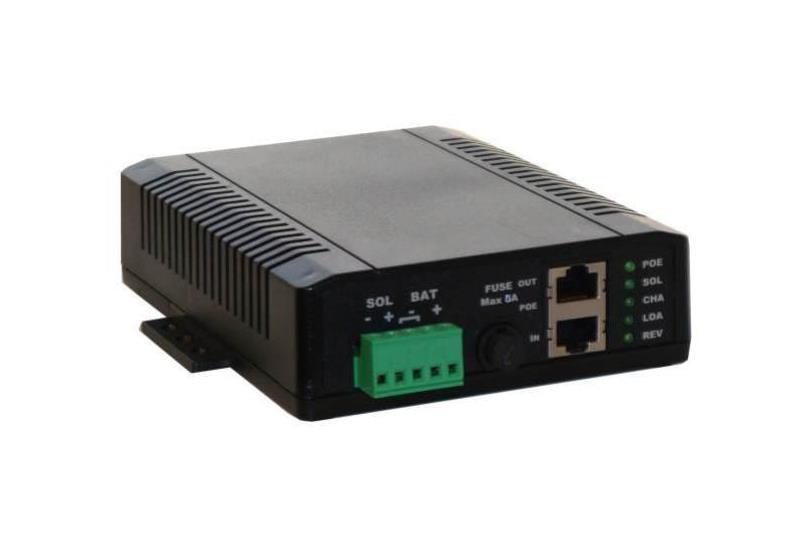

Tycon Power • TP-SCPOE-1224

Tycon Power TP-SCPOE-1224 12V 10A PWM Solar Controller with 24V 30W Passive PoE

The TP-SCPOE-1224 combines a 12V 10A PWM solar charge controller with dual solar/PoE charging inputs, a 24V 30W passive PoE output and a secondary 12V output for remote power systems.

12V 10A PWM charging 24V 30W passive PoE Solar and PoE inputs Low self-consumption

Product highlights

Key supplied and exact-model details for the TP-SCPOE-1224.

Dual charging inputs

Can charge the battery from a solar panel and/or a passive PoE source.

24V passive PoE output

Provides a 24V 30W passive PoE output for compatible network equipment.

Secondary DC output

The current product listing identifies a 12V 1.5A auxiliary output.

Priority solar use

The controller prioritises solar input when available to reduce grid-power use.

Status indicators

Five LEDs provide quick power, charging, load and reverse-polarity status.

Electronic protection

Includes short-circuit, reverse-current, over-voltage, over-charge and over-discharge protection.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

What does the TP-SCPOE-1224 combine?

It combines 12V 10A PWM solar charging, passive PoE charging input, 24V passive PoE output and a 12V auxiliary output.

What is the PoE output?

The exact product listing states 24V passive PoE at up to 30W.

Can it charge from solar and PoE?

Yes. It has dual inputs and can charge from solar and/or passive PoE.

What is the auxiliary output?

The current vendor listing identifies a 12V 1.5A secondary output.

Does it include battery protection?

The vendor states protections for short circuit, reverse current, over-voltage, over-charge and over-discharge.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturer’s terms and product assessment.

(TP-SCPOE-1224)

Technical specifications

Tycon Power TP-SCPOE-1224

Product Details
Brand Tycon Power
Model TP-SCPOE-1224
Product Type PWM solar and PoE charge controller
Charging
Battery System 12V
Controller Rating 10A PWM
Charging Inputs Solar panel and/or passive PoE
Input Priority Solar input takes priority when available
Outputs
Passive PoE Output 24VDC, up to 30W
Auxiliary Output 12VDC, 1.5A
Self-Consumption Less than 0.5W
Connections and Protection
PoE Connections 2 × shielded RJ45 for PoE input and output
Solar/Battery Terminals Screw terminals accepting wire up to 10AWG
Protection Short circuit, reverse current, over voltage, over charge and over discharge
Fuse External replaceable fuse
SKU TP-SCPOE-1224
Brand TYCON POWER
Shipping Weight 1.0000kg
DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. The TP-SCPOE-1224 is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Tycon Power TP-SCPOE-1224 12V 10A PWM Solar Controller with 24V 30W Passive PoE

Model # TP-SCPOE-1224

  • SKU: TP-SCPOE-1224

$178.00
$250.00
SAVE $72.00 (29%)
Sold Out
