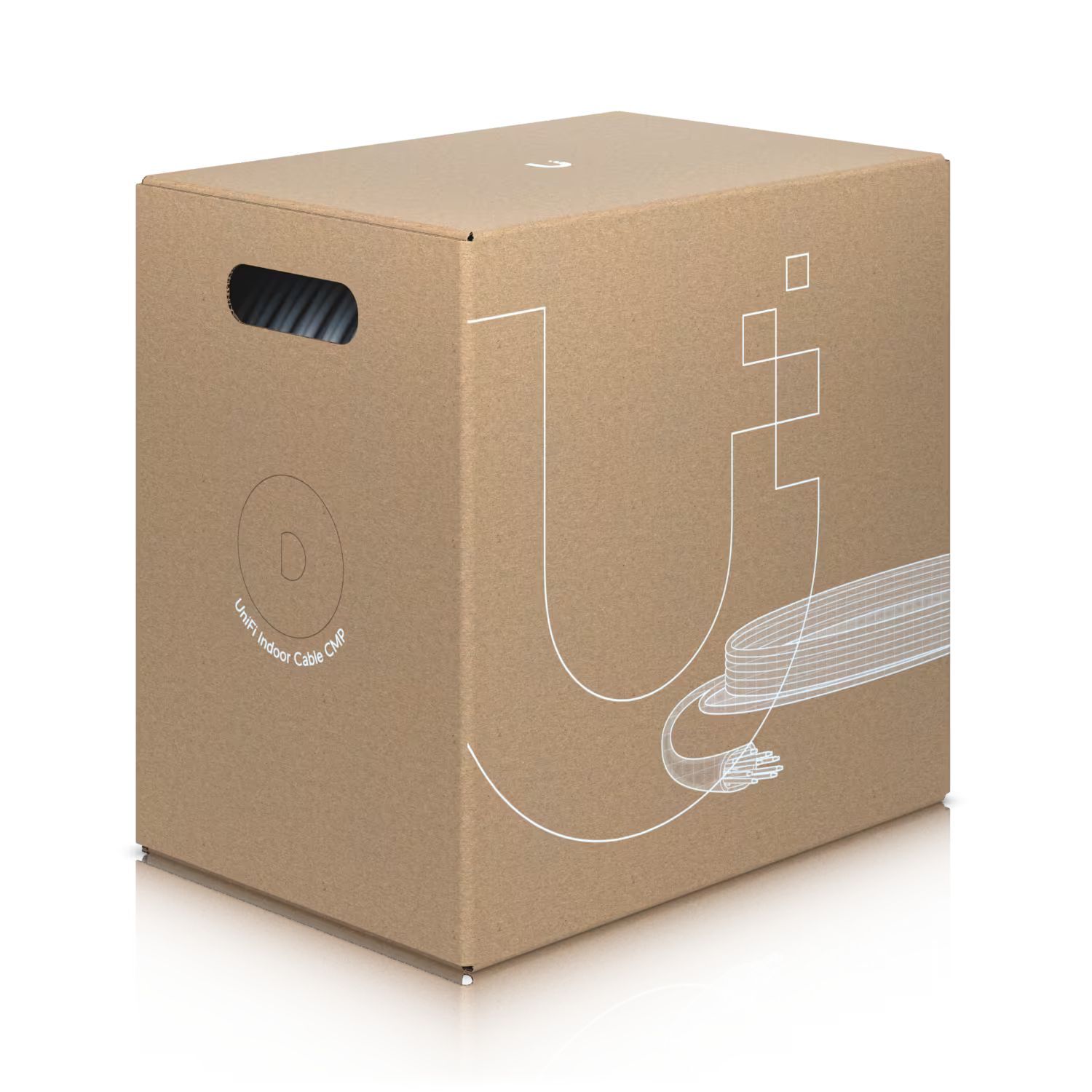

Ubiquiti U-CABLE-C6-CMP UniFi Cable Cat6 CMP, 1000' (304m) length Category 6 UTP (Unshielded Twisted Pair)
Model # U-CABLE-C6-CMP
-
SKU: UC-C6-CMP
- Pick Up Available
- Australian Warranty
- Checkout Securely
Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling.
Category 6 UTP communications multipurpose cable
Plenum (CMP)-rated, fire-resistant jacket
Anti-crosstalk divider
Cable length 305 m
UniFi® Category 6 indoor Ethernet cable is designed for your UniFi and general indoor network deployments that require plenum-rated cabling. Available in lengths of 1000 ft (305 m), UC-C6-CMP is Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 1 Gbps. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation. CMP (Communications Multipurpose cable, Plenum) cabling is for use in plenum areas where air is typically circulated in a building. Cables for these areas must adhere to strict manufacturing requirements, ensuring that they can be used in these spaces.
(UC-C6-CMP)
Technical Specifications
| Mechanical | |
|---|---|
| Box dimensions | 474 x 346 x 458 mm (18.7 x 13.6 x 18") |
| Box weight | 14.8 kg (32.5 lb) |
| Cable length | 305 m (1000 ft) |
| Cable color | White |
| Cable type | Category 6 |
| Shielding type | UTP |
| Flame rating | CMP |
| Conductor wire gauge | 23 AWG |
| Conductor type | Solid bare copper |
| Jacket material | Low smoke flame retardant PVC |
| Jacket diameter | 5.6 ± 0.2 mm |
| Bend radius | Min. 22.4 mm |
| Pulling tension | Max. 110 N |
| Storage temperature | -20 to 75°C (-4 to 167°F) |
| Installation temperature | 0 to 60°C (32 to 140°F) |
| Ambient operating temperature | -20 to 60°C (-4 to 140°F) |
| Anti-crosstalk divider | Yes |
| Ripcord | Yes |
| Data rate | 10/100/1000 Base-T |
| Reference bandwith | Up to 600 MHz |
| Standards | Electrical transmission: ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) IEC 61156-5 (Edition 2.1) Flame test: NFPA 262 (CMP) Material and construction: UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
| SKU | UC-C6-CMP |
| Brand | Ubiquiti |
| Shipping Weight | 15.0000kg |
Manufacturer Warranty : 1 Year Manufacturer Warranty
