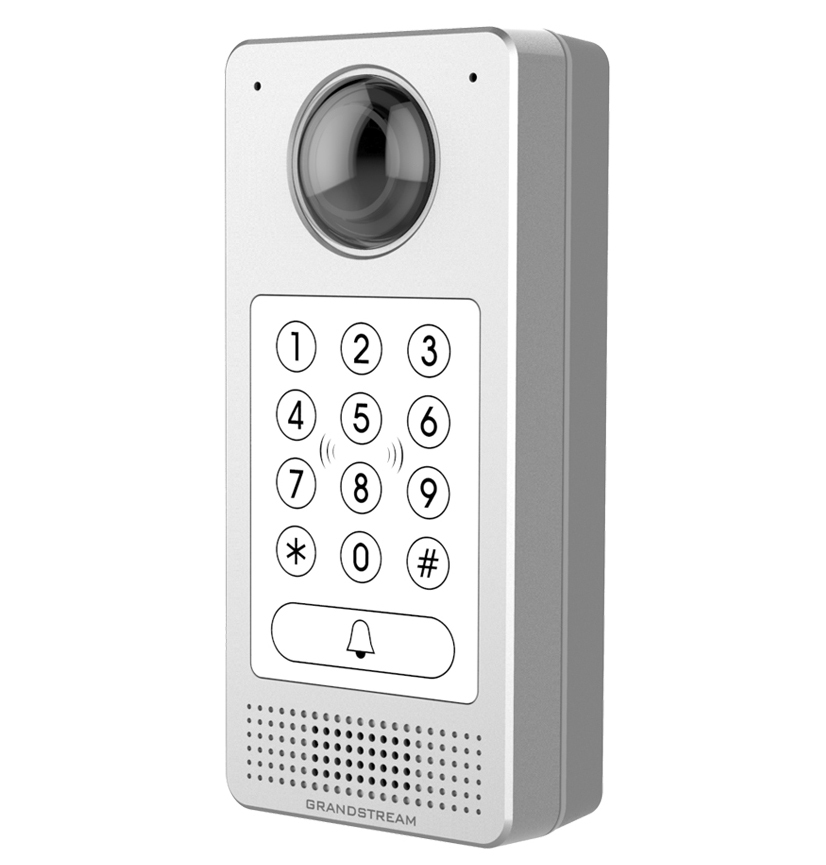

The GDS3710 is an HD Video Door System that tracks, manages and records access to any physical building while also serving as an IP surveillance camera and IP intercom. It offers powerful integration with other Grandstream solutions in order to offer a complete solution for access-control, video intercom and security monitoring.

The GDS3710 is an IP Video Door System that also serves as a hi gh-definition IP surveillance camera and IP intercom to offer facility access control and security monitoring for buildings of all sizes. This powerful IP Video Door System offers a 180-degree video viewing angle for wall-to-wall coverage, has a built-in RFID chip reader for secure keyless entry, includes a built-in microphone and speaker to support intercom functionality and offers alarm-in and alarm-out support for integration with existing security devices. The GDS3710 integrates with Grandstream’s free management utility software, GDS Manager, allowing RFID card information, video feeds as well as the device itself to be fully managed by this software. Powered by an advanced Image Sensor Processor (ISP) and state-of-the-art image algorithms, the GDS3710 delivers 1080p FHD video resolutions and offers exceptional performance in all lighting conditions. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly to smart phones, SIP endpoints and the GDS management software. The GDS3710 is equipped with integrated PoE for seamless installation, bright LEDs for illumination, motion detector for security protection, lighting control switch and more. The combination of the GDS3710, Grandstream’s GXP21xx IP phones, GXV video phones, GS-Wave mobile app, and GVR350x NVR products provide a complete solution for access control, video intercom, and security recording needs.





(GDS3710)

Powerful video resolutions up to 1080p
Built-in RFID chip reader for keyless entry
SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously
Built with a metal casing to make it weatherproof and vandal resistant
Built-in hemispheric camera allows for 180-degree wall-to wall coverage
Supports motion detection
Integrated PoE to power the device and provide a network connection
Built-in microphone and speaker offers voice options and intercom functionality
Video Compression
H.264 High Profile / Main Profile / Base Profile, Motion JPEG
Max Video Resolution
1920x1080
Multi-Stream Resolution
High-performance streaming server allowing multiple simultaneous access
Primary video stream: 1920 x 1080 resolution for continuous full HD recording
Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
Third video stream: 320 x 240 resolution for smartphone applications
Audio Input
Built-in microphone, up to 1.5m with AEC
Audio Output
Built-in HD loudspeaker, sound quality suitable for up to 3 m
Button
12-key touchpad plus a capacitive doorbell button, each with individual LED illumination
RFID
125KHz: EM4100 (1 RFID card and 1 RFID key fob included)
Alarm Input
Yes, 2 channels, Vin < 15V, for door sensor or other devices
Alarm Output
Yes, 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other devices
Dimensions (H x W x D)
173mm(H) x 80mm(W) x 36mm(D)
Weight
0.6Kg
Power Supply
PoE IEEE 802.3af Class 3, or 12VDC/1A connection (AC power adapter not included)
Interoperability
ONVIF (Profile S) (pending)
Temperature
Operation: -30°C to 60°C (-22°F to 140°F)
Storage: -35°C to 60°C (-31°F to 140°F)
Humidity
Humidity: 10% to 90% Non-condensing
Protection Class
IP66 (EN60529), IK09 (IEC62262)



SKU GDS3710
Barcode # 6947273702177
Brand Grandstream
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.090m
Shipping Length 0.220m
Shipping Cubic 0.006090000m3
Manufacturer Warranty
1 Year Limited Warranty
