Grandstream analogue telephone adapter

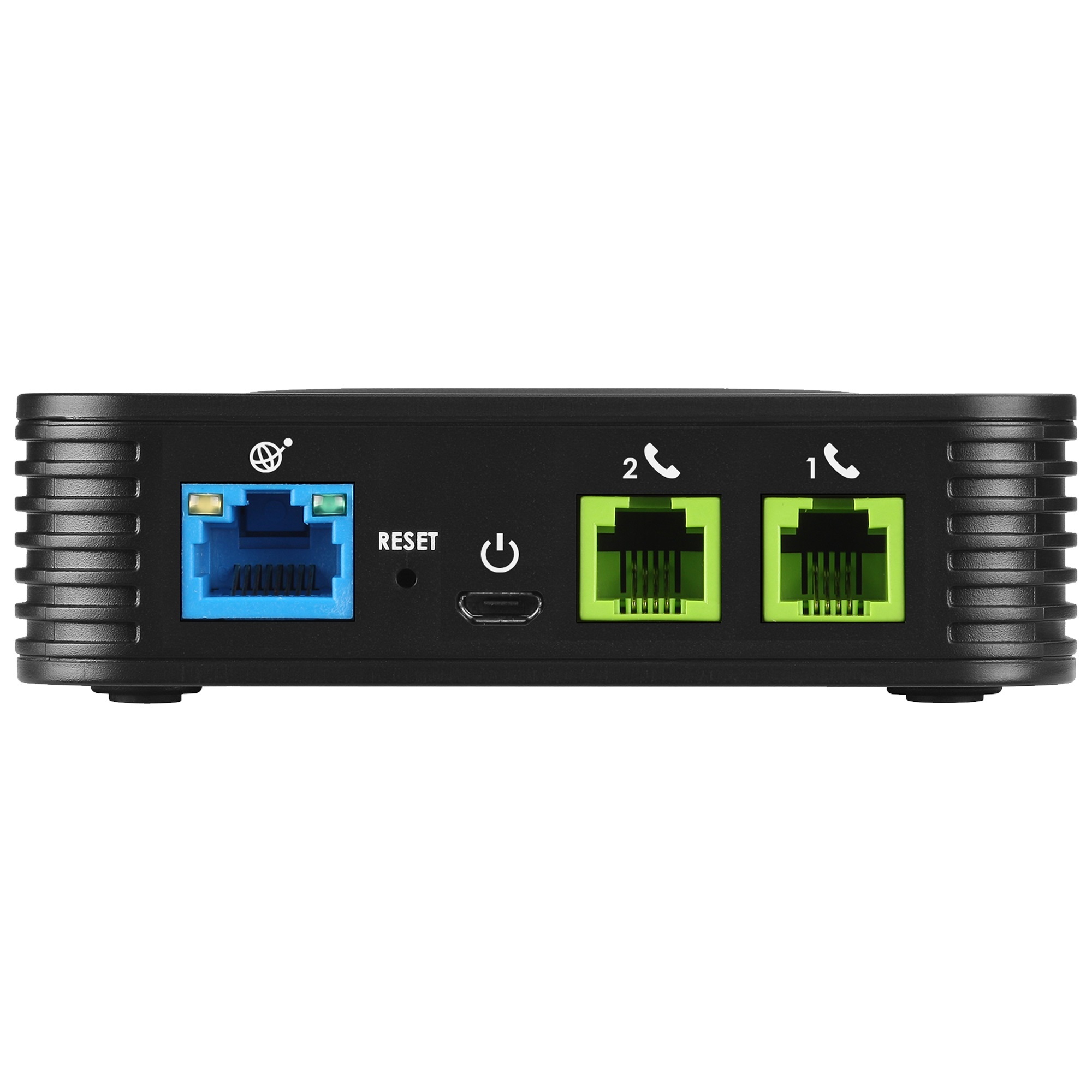

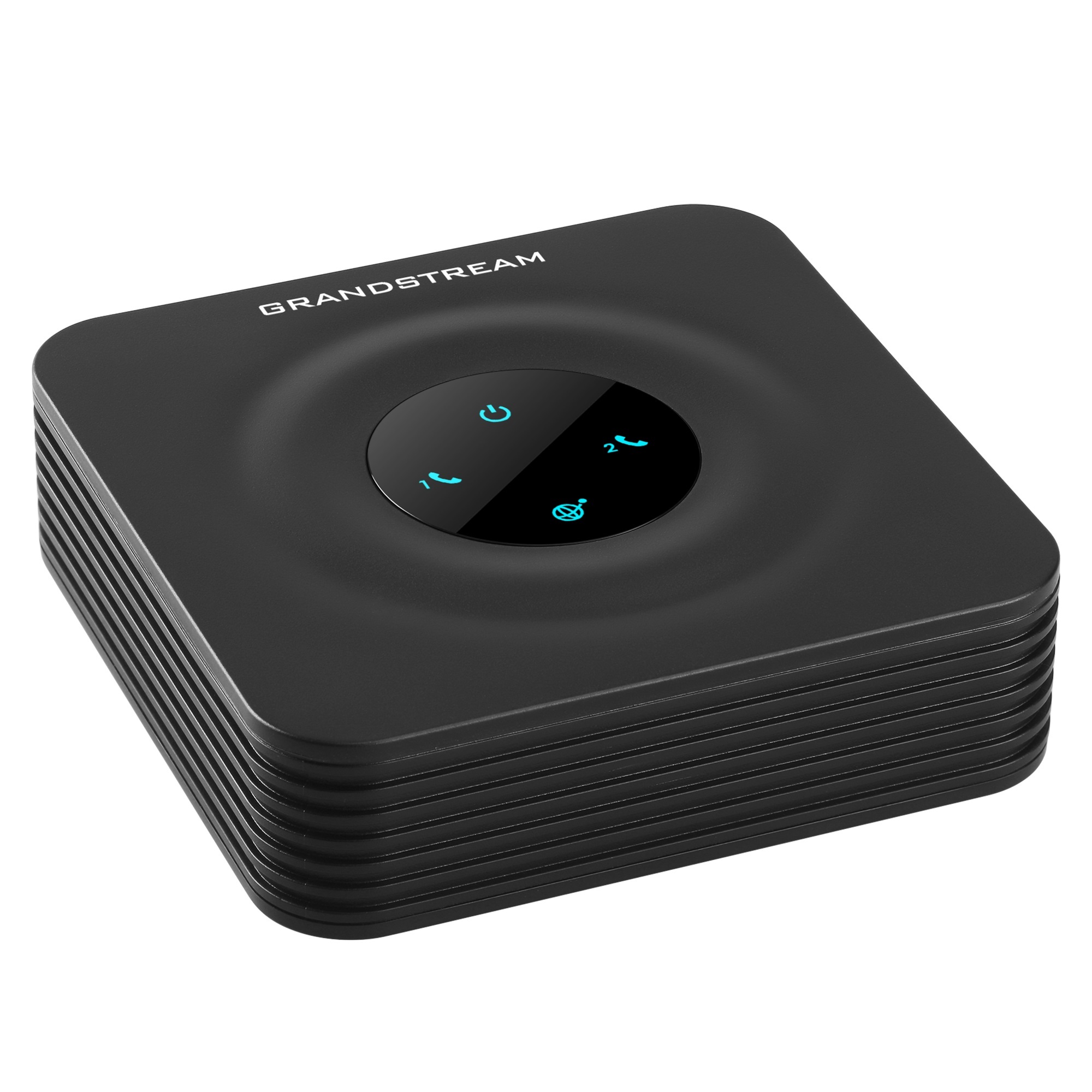

Grandstream HT802V2 2-Port FXS Analogue Telephone Adapter

A compact 2-port FXS analogue telephone adapter for connecting traditional phones or fax devices to a manageable SIP-based VoIP network, with Fast Ethernet, secure provisioning and T.38 fax.

2 × FXS ports
2 SIP profiles
1 × 10/100Mbps Ethernet
TLS/SRTP and T.38 fax

Grandstream HT802V2 2-Port FXS Analogue Telephone Adapter HT802V2

Product highlights

Analogue-to-VoIP conversion

Connects up to two analogue devices to a SIP-based IP telephony network.

FXS and SIP capacity

Supports 2 SIP profiles through 2 FXS ports.

Fast Ethernet

Includes one auto-sensing 10/100Mbps RJ45 network port.

Secure communications

TLS and SRTP protect calls and SIP accounts.

What to know before ordering

Review the stated model, capacity and compatibility details for SKU HT802V2. Only the specifications supplied for this exact product are shown.

Frequently asked questions

What is the Grandstream HT802V2?

The HT802V2 is a compact 2-port analogue telephone adapter for connecting traditional devices to SIP-based VoIP.

How many FXS ports are included?

It includes 2 FXS ports.

How many SIP profiles are supported?

The supplied data identifies 2 SIP profiles.

What Ethernet connection is included?

One auto-sensing 10/100Mbps RJ45 port is listed.

Which security protocols are supported?

TLS and SRTP are listed for protecting calls and accounts.

Does it support fax over IP?

Yes. T.38 Fax-over-IP is supported.

Does it support conferencing?

Yes. Three-way voice conferencing is listed.

How can it be provisioned?

TR-069, XML configuration files and UCM Zero Configuration are supported.

What happens if the main SIP server fails?

The failover function can switch automatically to a configured secondary SIP server.

What warranty applies to the HT802V2?

DeviceDeal is an authorised Grandstream reseller. The applicable Grandstream manufacturer warranty is subject to Grandstream terms; no exact warranty period was supplied.

(HT802V2)

HT802V2

Features and highlights

Analogue-to-VoIP conversion

Connects up to two analogue devices to a SIP-based IP telephony network.

FXS and SIP capacity

Supports 2 SIP profiles through 2 FXS ports.

Fast Ethernet

Includes one auto-sensing 10/100Mbps RJ45 network port.

Secure communications

TLS and SRTP protect calls and SIP accounts.

Automated provisioning

Supports TR-069, XML configuration files and UCM series Zero Configuration.

Resilient SIP service

Failover SIP server support switches to a secondary server when the primary connection is lost.

Voice and fax

Supports three-way voice conferencing and T.38 Fax-over-IP.

Status indicators

LED indicators are provided for POWER, NET and PHONE1 and PHONE2.

Key points

2 × FXS ports
2 SIP profiles
1 × 10/100Mbps Ethernet
TLS/SRTP and T.38 fax

Technical specifications

Grandstream HT802V2 2-Port FXS Analogue Telephone Adapter

Specifications below are organised from the information supplied for SKU HT802V2.

Telephony
Lines	2
FXS interfaces	2 × RJ11 FXS
SIP profiles	2
Conferencing	3-way voice
Fax	T.38 Group 3 relay up to 14.4kbps; G.711 pass-through fallback
Network and security
Ethernet	1 × 10/100Mbps auto-sensing RJ45
Security	TLS and SRTP
SIP failover	Supported
Provisioning and controls
Provisioning	TR-069, XML configuration and UCM Zero Configuration
LED indicators	POWER, NET, PHONE1 and PHONE2
Telephony	Caller ID, call waiting, transfer, forward, hold and do not disturb

SKU	HT802V2
Barcode #	6947273705390
Brand	Grandstream
Shipping Weight	0.5000kg
Shipping Width	0.220m
Shipping Height	0.080m
Shipping Length	0.170m
Shipping Cubic	0.002992000m3

Manufacturer warranty

Grandstream warranty information

DeviceDeal is an authorised Grandstream reseller. This product is covered by the applicable Grandstream manufacturer warranty, subject to Grandstream warranty terms, eligibility requirements and product assessment. No exact warranty period was supplied for this SKU.

Please retain your DeviceDeal tax invoice or order record as proof of purchase for any eligible claim or service request.
