Grandstream analogue telephone adapter

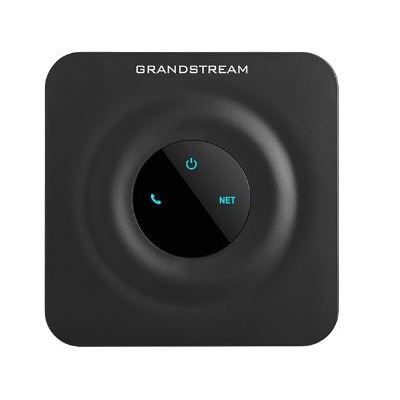

Grandstream HT801V2 1-Port FXS Analogue Telephone Adapter

A compact 1-port FXS analogue telephone adapter for connecting traditional phones or fax devices to a manageable SIP-based VoIP network, with Fast Ethernet, secure provisioning and T.38 fax.

1 × FXS port
1 SIP profile
1 × 10/100Mbps Ethernet
TLS/SRTP and T.38 fax

Grandstream HT801V2 1-Port FXS Analogue Telephone Adapter HT801V2

Product highlights

Analogue-to-VoIP conversion

Connects an analogue device to a SIP-based IP telephony network.

FXS and SIP capacity

Supports 1 SIP profile through 1 FXS port.

Fast Ethernet

Includes one auto-sensing 10/100Mbps RJ45 network port.

Secure communications

TLS and SRTP protect calls and SIP accounts.

What to know before ordering

Review the stated model, capacity and compatibility details for SKU HT801V2. Only the specifications supplied for this exact product are shown.

Frequently asked questions

What is the Grandstream HT801V2?

The HT801V2 is a compact 1-port analogue telephone adapter for connecting traditional devices to SIP-based VoIP.

How many FXS ports are included?

It includes 1 FXS port.

How many SIP profiles are supported?

The supplied data identifies 1 SIP profile.

What Ethernet connection is included?

One auto-sensing 10/100Mbps RJ45 port is listed.

Which security protocols are supported?

TLS and SRTP are listed for protecting calls and accounts.

Does it support fax over IP?

Yes. T.38 Fax-over-IP is supported.

Does it support conferencing?

Yes. Three-way voice conferencing is listed.

How can it be provisioned?

TR-069, XML configuration files and UCM Zero Configuration are supported.

What happens if the main SIP server fails?

The failover function can switch automatically to a configured secondary SIP server.

What warranty applies to the HT801V2?

DeviceDeal is an authorised Grandstream reseller. The applicable Grandstream manufacturer warranty is subject to Grandstream terms; no exact warranty period was supplied.

(HT801V2)

HT801V2

Features and highlights

Analogue-to-VoIP conversion

Connects an analogue device to a SIP-based IP telephony network.

FXS and SIP capacity

Supports 1 SIP profile through 1 FXS port.

Fast Ethernet

Includes one auto-sensing 10/100Mbps RJ45 network port.

Secure communications

TLS and SRTP protect calls and SIP accounts.

Automated provisioning

Supports TR-069, XML configuration files and UCM series Zero Configuration.

Resilient SIP service

Failover SIP server support switches to a secondary server when the primary connection is lost.

Voice and fax

Supports three-way voice conferencing and T.38 Fax-over-IP.

Status indicators

LED indicators are provided for POWER, NET and PHONE.

Key points

1 × FXS port
1 SIP profile
1 × 10/100Mbps Ethernet
TLS/SRTP and T.38 fax

Technical specifications

Grandstream HT801V2 1-Port FXS Analogue Telephone Adapter

Specifications below are organised from the information supplied for SKU HT801V2.

Telephony
Lines	1
FXS interfaces	1 × FXS
SIP profiles	1
Conferencing	3-way voice
Fax	T.38 Group 3 relay up to 14.4kbps; G.711 pass-through fallback
Network and security
Ethernet	1 × 10/100Mbps auto-sensing RJ45
Security	TLS and SRTP
SIP failover	Supported
Provisioning and controls
Provisioning	TR-069, XML configuration and UCM Zero Configuration
LED indicators	POWER, NET, PHONE
Telephony	Caller ID, call waiting, transfer, forward, hold and do not disturb

SKU	HT801V2
Barcode #	6947273705383
Brand	Grandstream
Shipping Weight	0.3000kg
Shipping Width	0.150m
Shipping Height	0.050m
Shipping Length	0.100m
Shipping Cubic	0.000750000m3
