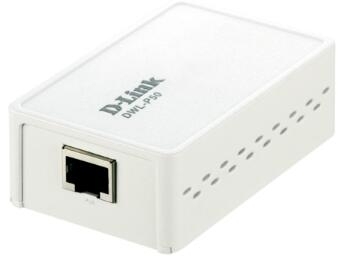

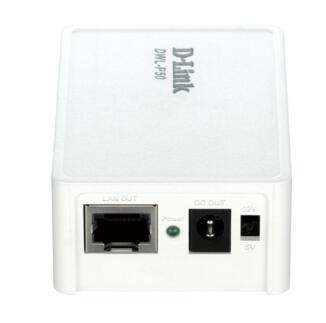

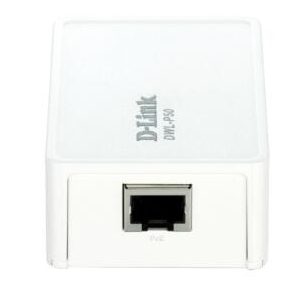

D-Link DWL-P500 Power over Ethernet Adapter with 5V or 12V Output

A Power over Ethernet adapter with 48VDC input and slide-switch-selectable 5VDC or 12VDC output, RJ-45 connectivity and a power diagnostic LED.

Selectable 5VDC or 12VDC

A slide switch selects 5VDC at 11.5W or 12VDC at 12W output.

48VDC input

The supplied input rating is 48VDC at 400mA.

Compact PoE adapter

The adapter-only dimensions are 80.9 x 52 x 28mm with a stated weight of 80g.

Selectable power output

The supplied technical details list a 48VDC, 400mA input and either 5VDC at 11.5W or 12VDC at 12W output selected by a slide switch.

Ethernet connection

The adapter uses an RJ-45 connector and TIA/EIA 568 Category 5 Ethernet cable.

Status indication

A diagnostic power LED is listed for visual confirmation.

Environmental ratings

Operating and storage temperature and humidity ranges are supplied for deployment planning.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied under the applicable D-Link manufacturer warranty.

Frequently asked questions

What input voltage is stated?

The input is rated at 48VDC and 400mA.

Which output voltages are available?

Selectable 5VDC or 12VDC output is stated.

How is the output voltage selected?

A slide switch selects the required output.

What power is stated at 5VDC?

An output of 11.5W is listed.

What power is stated at 12VDC?

An output of 12W is listed.

Which network connector is used?

An RJ-45 connector is stated.

Which Ethernet cable specification is listed?

TIA/EIA 568 Category 5 cable is stated.

Is there a status indicator?

Yes. A diagnostic power LED is listed.

What are the adapter dimensions and weight?

The adapter measures 80.9 x 52 x 28mm and weighs 80g.

What warranty applies?

The adapter is supplied under the applicable D-Link manufacturer warranty.

(DWL-P500)

D-Link DWL-P500 Power over Ethernet Adapter with 5V or 12V Output features

Selectable DC output

Switches between the listed 5VDC and 12VDC output options.

RJ-45 connection

Uses the stated Category 5 Ethernet cable interface.

Power status LED

Provides a visible diagnostic power indicator.

Compact adapter body

Uses the supplied adapter-only dimensions and weight.

Confirm the powered device's voltage, current, connector and power requirements before installation; use only the supported output selection.

D-Link DWL-P500 Power over Ethernet Adapter with 5V or 12V Output specifications

Product details

Model / SKU	DWL-P500
Product type	Power over Ethernet adapter
Input	48VDC, 400mA
Selectable output	5VDC (11.5W) / 12VDC (12W)
Output selection	Slide switch
Ethernet cable	TIA/EIA 568 Cat. 5
Connector	RJ-45
Diagnostic LED	Power
Dimensions	80.9 x 52 x 28mm (adapter only)
Weight	80g (adapter only)
Operating temperature	0°C to 40°C (32°F to 104°F)
Storage temperature	-40°C to 70°C (-40°F to 158°F)
Operating humidity	10% to 80% RH
Storage humidity	5% to 90% RH
EMI	FCC Part 15 Class B / CE Class B
Safety	UL / TUV
