StarTech.com SVA12M5NA

StarTech SVA12M5NA 12V 5A DC Power Adapter with M-Type Barrel

A replacement or spare 12V DC adapter for compatible electronics using an M-type barrel connection and requiring up to 5A.

12V DCUp to 5AM-type barrel2-year warranty

StarTech SVA12M5NA 12V 5A DC Power Adapter with M-Type Barrel

Key features

12V / 5A output

Provides 12V DC output at up to 5A for compatible devices.

M-type barrel connection

Designed for equipment using the specified M-type barrel power connector.

Positive centre tip

The centre-tip polarity is listed as positive.

100240V AC input

Wide-range AC input supports the included regional power connection options.

What to know

CompatibilityUse only where 12V DC, positive-centre polarity and the same M-type connector are required.

Current capacityThe connected device must require no more than 5A.

Replacement applicationsThe source lists a range of compatible StarTech KVM, extender, USB hub, storage and AV products that use this power specification.

Australian version and official StarTech.com warranty

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SVA12M5NA?

SVA12M5NA is a replacement or spare 12V DC power adapter for compatible devices using an M-type barrel connector and requiring up to 5A.

What output does the adapter provide?

It provides 12V DC with a maximum output current of 5A.

What connector type does it use?

The supplied product information identifies an M-type barrel power connector.

What is the polarity?

The centre-tip polarity is positive.

What AC input does it support?

The supplied specification lists 100240V AC input.

How long is the cable?

The listed cable length is 40.2 in (1020 mm).

Which regional power options are included?

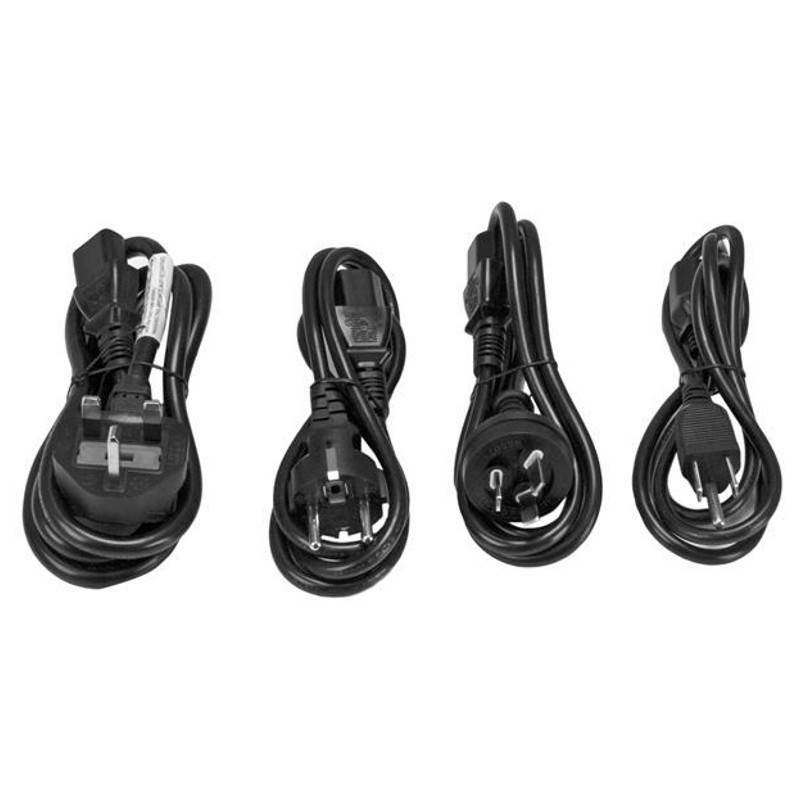

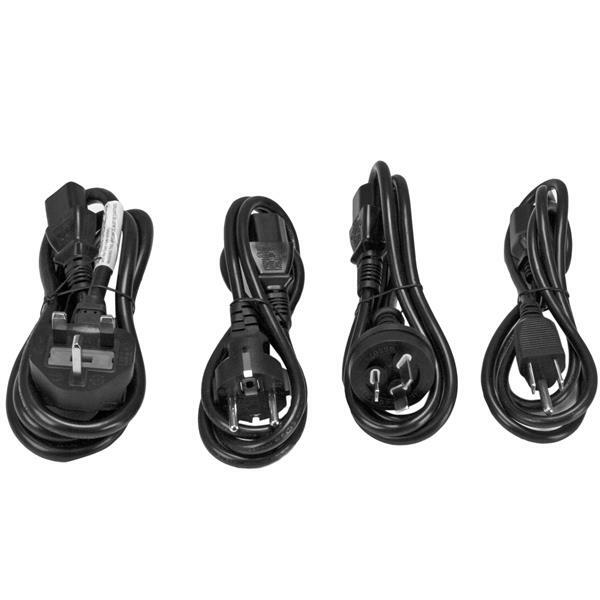

The package includes NA/JP, EU, UK and AU power connection options.

What warranty applies in Australia?

This Australian-version product is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility and product assessment.

(SVA12M5NA)

Features and highlights

12V / 5A output

Provides 12V DC output at up to 5A for compatible devices.

M-type barrel connection

Designed for equipment using the specified M-type barrel power connector.

Positive centre tip

The centre-tip polarity is listed as positive.

100240V AC input

Wide-range AC input supports the included regional power connection options.

40.2 in cable

The supplied specification lists a 40.2 in (1020 mm) cable length.

Universal power adapter

The package includes NA/JP, EU, UK and AU power connection options.

Key highlights

12V DC
Up to 5A
M-type barrel
2-year warranty

Warranty confidence

Official StarTech.com 2-year manufacturer warranty in Australia for this Australian-version product, subject to StarTech.com terms and assessment.

Specifications

StarTech SVA12M5NA

Warranty Information

Warranty	2 Years

Power

Center Tip Polarity	Positive
Input Current	2 A
Input Voltage	100 - 240 AC
Output Current	5 A
Output Voltage	12 DC
Plug Type	M
Power Source	AC Adapter Included

Physical Characteristics

Cable Length	40.2 in [1020 mm]
Product Height	1.4 in [3.5 cm]
Product Length	4.3 in [11 cm]
Product Width	1.8 in [46 mm]
Weight of Product	32 oz [905.8 g]

Packaging Information

Package Height	2 in [51 mm]
Package Length	12.6 in [32 cm]
Package Width	8.7 in [22 cm]
Shipping (Package) Weight	32.6 oz [924.2 g]

What's in the Box

Included in Package	1 - universal power adapter (NA/JP, EU, UK, AU)

SKU	SVA12M5NA
Barcode #	65030867184
Brand	STARTECH
Shipping Weight	0.9200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.240m
Shipping Cubic	0.001200000m3
