ATEN SKU CE820-ATA-U

ATEN CE820-ATA-U USB HDMI HDBaseT 2.0 KVM Extender

The ATEN CE820-ATA-U extends HDMI video, USB, stereo audio and RS-232 over a single HDBaseT 2.0 Cat cable connection.

The supplied specifications list 4K up to 90m on Cat 5e or 100m on Cat 6/6a/ATEN 2L-2910, plus 1080p at 100m and long-reach Full HD operation up to 150m.

4K up to 100mHDMI and USBStereo audio and RS-2322-year warrantyDeviceDeal authorised ATEN reseller

ATEN CE820-ATA-U USB HDMI HDBaseT 2.0 KVM Extender shown in the supplied second product image

Product overview

4K over HDBaseT 2.0

The source lists 4K up to 90m on Cat 5e and 100m on Cat 6/6a or ATEN 2L-2910 Cat 6 cable.

HDMI, USB, audio and serial

The supplied local and remote connection table includes HDMI, USB, microphone, speaker and RS-232 interfaces.

CE820-ATA variant

The source explicitly states that the CE820-ATA does not support the Ethernet function.

Source review: The opening description generically mentions Ethernet, but the product-specific note states that CE820-AT supports Ethernet and CE820-ATA does not. This page follows the product-specific CE820-ATA limitation.

Frequently asked questions

How far can the CE820-ATA-U extend 4K video?

The source lists 4K up to 90m over Cat 5e or 100m over Cat 6/6a/ATEN 2L-2910 Cat 6.

Does the CE820-ATA-U support Ethernet extension?

No. The product-specific source note states that CE820-AT supports Ethernet and CE820-ATA does not.

Which signals are extended?

The supplied record lists HDMI video, USB, stereo audio and RS-232.

What is included?

The source lists local and remote units, a 1.8m HDMI/USB/audio cable set, two power adapters, two mounting kits and user instructions.

What warranty is supplied?

The source lists a two-year ATEN manufacturer warranty.

(CE820-ATA-U)

Features

ATEN CE820-ATA-U USB HDMI HDBaseT 2.0 KVM Extender

Video and distance

4K up to 90m on Cat 5e
4K up to 100m on Cat 6/6a/2L-2910
1080p at 100m
Long-reach Full HD up to 150m

Signals and control

HDMI video
USB
Stereo speaker and microphone
RS-232
Wake-up pushbutton

Variant and installation

CE820-ATA does not support Ethernet
Metal housing
Mounting kits included
Locking DC power jacks

Use the product-specific CE820-ATA limitation when planning the installation: Ethernet extension is not supported on this variant.

Technical specifications

ATEN CE820-ATA-U USB HDMI HDBaseT 2.0 KVM Extender

Product details
Brand	ATEN
Model / SKU	CE820-ATA-U
Product type	USB HDMI HDBaseT 2.0 KVM extender
Units	CE820L local; CE820R remote
Ethernet function	Not supported on CE820-ATA, per product-specific note
Video and extension
4K distance	90m on Cat 5e; 100m on Cat 6/6a/ATEN 2L-2910 Cat 6
1080p distance	100m on Cat 5e/6/6a
Long-reach statement	Full HD 1080p up to 150m
4K formats	4096 x 2160 / 3840 x 2160 @ 60Hz 4:2:0; @ 30Hz 4:4:4

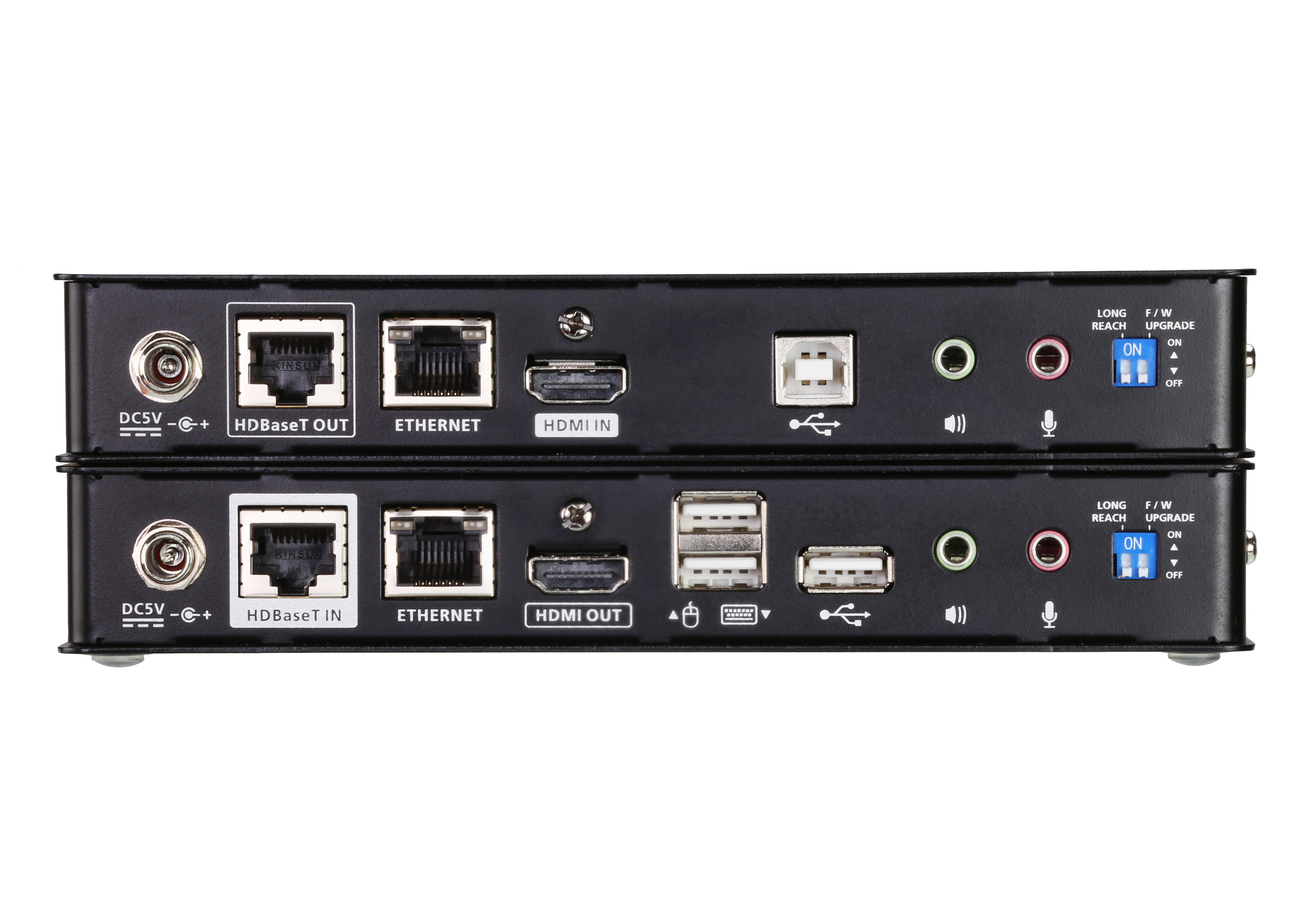

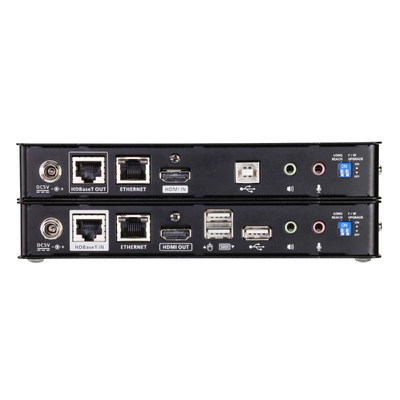

Connections
Local KVM ports	HDMI female; USB Type-B female; speaker and microphone jacks
Remote console	HDMI female; 3 x USB Type-A female; speaker and microphone jacks
RS-232	DB-9 female local; DB-9 male remote
Unit-to-unit	1 x RJ-45 female on each unit
Power	Locking DC jack on each unit
Power and environment
Local power consumption	DC 5V; 2.87W; 13BTU
Remote power consumption	DC 5V; 5.37W; 40BTU
Operating temperature	040°C
Storage temperature	-2060°C
Humidity	080% RH, non-condensing
Physical properties
Housing	Metal
Local weight	0.63kg
Remote weight	0.65kg
Dimensions per unit (L x W x H)	18.20 x 12.19 x 2.87cm
Package contents
Included	CE820L local; CE820R remote; 1.8m HDMI/USB/audio cable set; 2 power adapters; 2 mounting kits; user instructions

SKU	CE820-ATA-U
Barcode #	4719264645822
Brand	Aten
Shipping Weight	2.0000kg

Warranty information

ATEN CE820-ATA-U USB HDMI HDBaseT 2.0 KVM Extender

2-Year ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
