StarTech.com SV565FXHD4KU

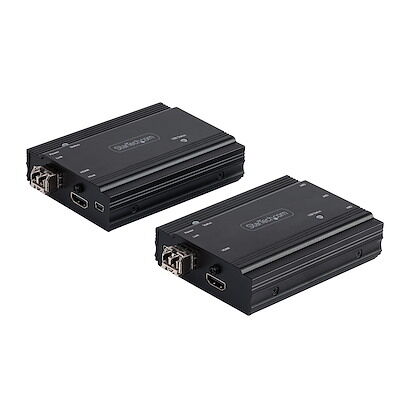

StarTech SV565FXHD4KU 4K60 HDMI USB KVM Extender over Fibre

Extend HDMI 2.0 video and USB HID control over a point-to-point multimode fibre link up to 300 m, with 4K 60Hz 4:4:4 video and two pre-installed 10G MMF SFP+ modules.

4K 60Hz 4:4:4300 m fibre2× 10G SFP+2-year warranty

StarTech SV565FXHD4KU 4K60 HDMI USB KVM Extender over Fibre

Key features

4K 60Hz HDMI 2.0

Deliver UHD video up to 4K at 60Hz with 4:4:4 chroma sampling.

Up to 300 m over multimode fibre

Use compatible OM3 multimode fibre for point-to-point extension up to 300 m.

SFP+ modules included

Two 10G multimode SFP+ modules are pre-installed in the transmitter and receiver.

Three USB HID ports

The remote console provides three USB Type-A HID ports for keyboard, mouse and other supported HID devices.

What to know

Fibre cablingThe specification lists cables as not included; suitable multimode fibre cabling is required.

Network typeThe optical link uses 10GBASE-SR, 850 nm, full-duplex multimode operation.

Operating systemsThe extender is OS independent.

Australian version and official StarTech.com warranty

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SV565FXHD4KU?

SV565FXHD4KU is an HDMI and USB KVM extender kit for remotely controlling a computer over a point-to-point multimode fibre connection.

What is the maximum video resolution?

It supports up to 4K 60Hz with 4:4:4 chroma sampling, with 4K 30Hz and 1080p also listed.

How far can it extend over fibre?

The maximum specified distance is 300 m using compatible multimode OM3 fibre.

Are the optical modules included?

Yes. Two 10G multimode SFP+ modules are pre-installed.

How many USB ports are provided at the console?

The console side provides three USB Type-A HID ports for supported keyboard, mouse and other HID devices.

Does the kit support audio?

Yes. The specification lists HDMI 7.1-channel audio.

Is fibre cable included?

No. The specification lists cables as not included, so suitable multimode fibre cabling must be supplied separately.

What warranty applies in Australia?

This Australian-version product is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility and product assessment.

(SV565FXHD4KU)

Features and highlights

4K 60Hz HDMI 2.0

Deliver UHD video up to 4K at 60Hz with 4:4:4 chroma sampling.

Up to 300 m over multimode fibre

Use compatible OM3 multimode fibre for point-to-point extension up to 300 m.

SFP+ modules included

Two 10G multimode SFP+ modules are pre-installed in the transmitter and receiver.

Three USB HID ports

The remote console provides three USB Type-A HID ports for keyboard, mouse and other supported HID devices.

EDID pass-through

EDID pass-through helps the source configure display settings for the connected remote display.

HDMI audio

The specification lists HDMI 7.1-channel audio support.

Key highlights

4K 60Hz 4:4:4
300 m fibre
2× 10G SFP+
2-year warranty

Warranty confidence

Official StarTech.com 2-year manufacturer warranty in Australia for this Australian-version product, subject to StarTech.com terms and assessment.

Specifications

StarTech SV565FXHD4KU

Warranty Information

Warranty	2 Years
Industry Standards	IEEE 802.3ae 10GBASE-SR
Type	Multi Mode
Wavelength	850nm
Fiber Operating Mode	Full-Duplex
DDM	Yes
Compatible Networks	10 Gbps

Connector(s)

Console Interface(s)	1 - SFP+ Slot 3 - USB Type-A (4 pin; HID Port) USB 1.1 1 - 19 pin HDMI Female
Host Connectors	1 - 19 pin HDMI Female 1 - SFP+ Slot

Environmental

Operating Temperature	0°C to 50°C
Storage Temperature	-10°C to 60°C
Humidity	0 - 80 RH, Non-Condensing

Hardware

Audio	Yes
KVM Ports	1
PC Interface	USB
PC Video Type	HDMI
Number of Monitors Supported	1
Rack-Mountable	No
Cables Included	No

Indicators

LED Indicators	2 - Power/Connection LED 2 - USB Status LED

Packaging Information

Shipping (Package) Weight	2.3 lb [1.0 kg]
Package Height	2.9 in [7.4 cm]
Package Length	12.2 in [31.0 cm]
Package Width	7.1 in [18.0 cm]
Package Quantity	1

Performance

Video Revision	HDMI 2.0
On-Screen Display	No
Hot-Key Selection	No
Max Transfer Distance	300 m (Multi-Mode OM3 Fiber)
Supported Resolutions	4K @ 60Hz 4:4:4 4K @ 30Hz 4:4:4 1080p
Wide Screen Supported	Yes
Audio Specifications	HDMI - 7.1 Channel Audio
MTBF	1,000,000 Hours

Physical Characteristics

Color	Black
Product Height	1.1 in [2.8 cm]
Weight of Product	1.1 lb [0.5 kg]
Product Length	3.9 in [10.0 cm]
Product Width	3.0 in [7.5 cm]
Material	Metal

Power

Power Source	AC Adapter Included
Input Voltage	100 - 240 AC
Input Current	0.3A
Output Voltage	5 DC
Output Current	2A
Power Consumption (In Watts)	10W

Software

OS Compatibility	OS Independent

What's in the Box

Included in Package	1 - Transmitter for Host Computer 1 - Receiver for Remote Console 2 - 10G Multimode 10G SFP+ Module (Pre-Installed) 2 - Universal Power Adapter 3 - USB-A to Mini USB-B Cables 1 - Quick-Start Guide
