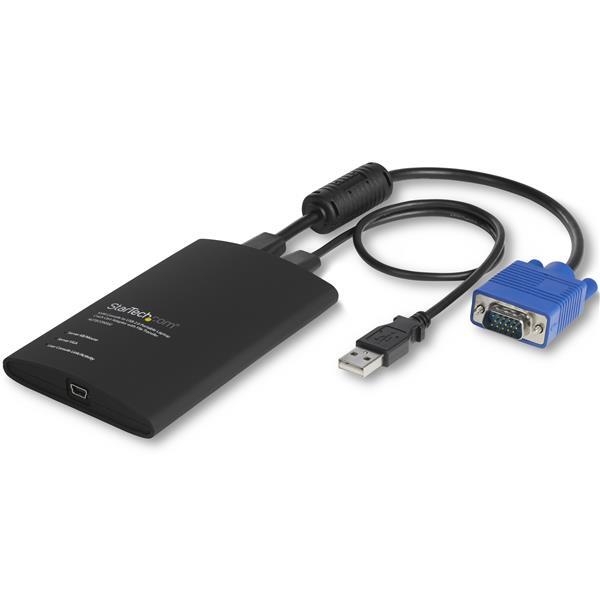

The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.
Instant System Access
Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. With no server-side software required, you can be up and running instantly.
*Please note that the mouse function may be limited in some BIOS/UEFI environments

Troubleshoot More Efficiently
With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.
Self-Powered Reliability
Powered from the server-side USB connection, the KVM adapter doesn't require an AC outlet so you can connect to any PC or device that has a VGA and USB port, even if there's no power outlet available.
Take It Anywhere
This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.
StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.
(NOTECONS02)
| Hardware | |
| PC Video Type | VGA |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Host/Server Keyboard/Mouse USB Link |
| Host/Server Video (VGA) Link | |
| User Console/USB Link | |
| Packaging Information | |
| Package Height | 46 mm [1.8 in] |
| Package Length | 30.3 cm [11.9 in] |
| Package Width | 16.6 cm [6.5 in] |
| Shipping (Package) Weight | 363 g [12.8 oz] |
| Performance | |
| Hot-Key Selection | No |
| IP Control | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| MTBF | 909000 |
| On-Screen Display | No |
| Physical Characteristics | |
| Cable Length | 1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable |
| 416 mm [16.4 in] | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Depth | 115 mm [4.5 in] |
| Product Height | 1.5 cm [0.6 in] |
| Product Width | 74 mm [2.9 in] |
| Weight of Product | 170 g [6 oz] |
| Power | |
| Power Source | USB-Powered |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com USB Crash Cart Adapter with File Transfer & Video Capture |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS® 10.9 to 10.14 Linux 2.6 to 4.11 LTS versions only |
| Special Notes / Requirements | |
| Note | If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration |
| What's in the Box | |
| Included in Package | USB A to Mini-B Cable |
| USB Crash Cart Adpater | |
| USB Software Key | |
| Hardware | |
| PC Interface | USB |
| Number of Monitors Supported | 1 |
| KVM Ports | 1 |
| Daisy-Chain | No |
| Cables Included | Yes |
| Audio | No |
| Environmental | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 80% RH |
| Connector(s) | |

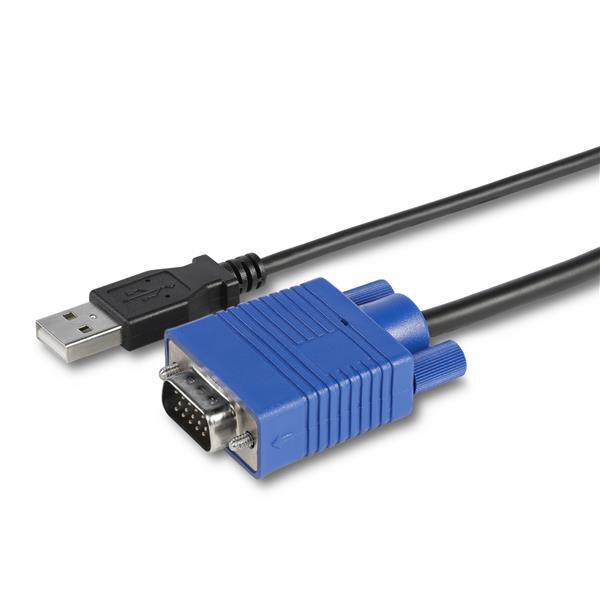

| Host Connectors | VGA (15 pin, High Density D-Sub) Male |
| USB Type-A (4 pin) USB 2.0 Male | |
| Console Interface(s) | USB Mini-B (5 pin) Female Input |
| SKU | NOTECONS02 |
| Barcode # | 65030854382 |
| Brand | STARTECH |
| Shipping Weight | 0.4200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.001500000m3 |
