Serial device control
The computer or device side uses one DB-9 female connector for serial-console access.
ATEN KA7140-AX Serial Console Adapter
Model # KA7140
-
SKU: KA7140-AX
$203.00
Stock Availability
🟢Live
In Stock · 5+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU KA7140-AX

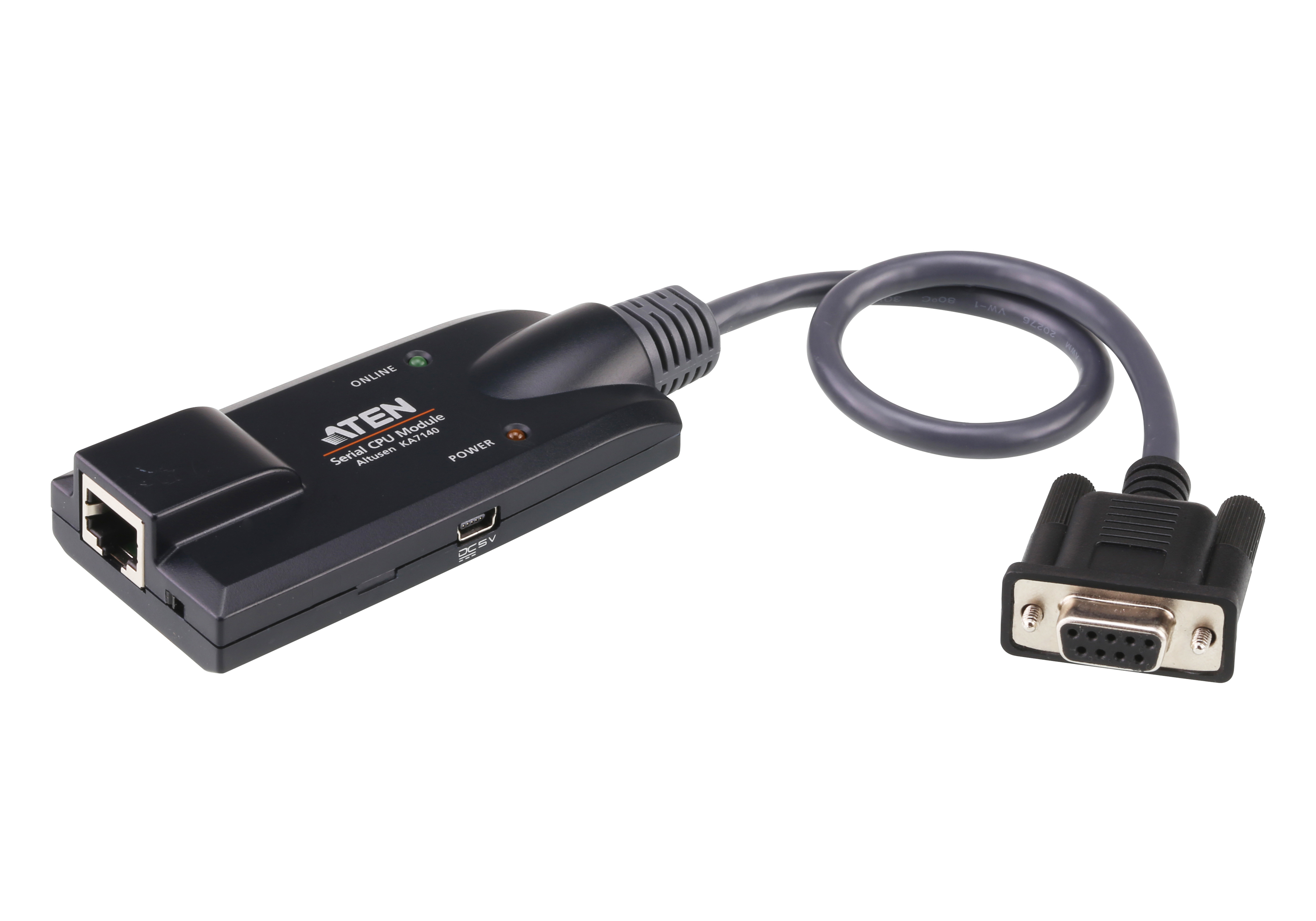

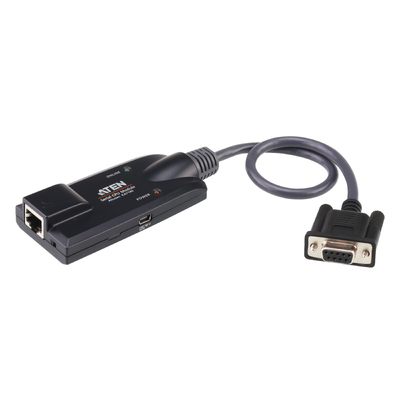

ATEN KA7140-AX Serial Console KVM Adapter
The ATEN KA7140-AX connects a compatible KVM installation to a serial device through a DB-9 console interface and RJ-45 link.
VT100 support, hot-plug operation and source-listed signal transmission up to 300 metres suit remote access to serial rackmount and desktop equipment.
DB-9 serial consoleUp to 300mVT100 support2-year warrantyDeviceDeal authorised ATEN reseller
Product overview
Up to 300m transmission
The supplied description lists serial signal transmission up to 300 metres.
Hot-pluggable adapter
The source states that devices can be added or removed without powering down the KVM switch.
Source review: The source identifies VT100 serial-console support but does not provide supported baud rates, data-bit, parity or flow-control settings.
Frequently asked questions
Which serial connector does the KA7140-AX use?
The supplied specification lists one DB-9 female computer connector.
How far can the serial signal be transmitted?
The source lists up to 300 metres.
Does it support VT100?
Yes. VT100 support is listed in the supplied description.
How does it link to the KVM installation?
The source lists one RJ-45 female link port.
What warranty is supplied?
The source lists a two-year ATEN manufacturer warranty.
(KA7140-AX)
Features
ATEN KA7140-AX Serial Console KVM Adapter
Serial access
- 1 x DB-9 female
- VT100 support
- For serial devices
- Automatic interface conversion stated
Link and power
- 1 x RJ-45 female link
- 1 x Mini-USB Type-B female power port
- Up to 300m signal transmission
Deployment
- Hot pluggable
- Lifetime firmware upgrades stated
- Compact plastic housing
- Online and power LEDs
Confirm the serial communication settings and exact KVM-switch compatibility before installation.
Technical specifications
ATEN KA7140-AX Serial Console KVM Adapter
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | KA7140-AX |
| Product type | Serial console KVM adapter |
| Connections and indicators | |
| Link | 1 x RJ-45 female |
| Serial device | 1 x DB-9 female |
| Power | 1 x Mini-USB Type-B female |
| Online LED | 1 green |
| Power LED | 1 orange |
| Serial capability | |
| Terminal support | VT100 |
| Maximum transmission | Up to 300m |
| Environment and physical | |
| Operating temperature | 050°C |
| Storage temperature | -2060°C |
| Housing | Plastic |
| Weight | 0.09kg |
| Dimensions (L x W x H) | 9.00 x 4.30 x 2.18cm |
| Compatible ATEN products supplied | |
| Models | KL1108V, KL1116V, KM0532, KM0932, KN1108VA, KN1116VA, KN1132V, KN2116A, KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN2140v, KN4116VA, KN4124VA, KN4132, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, RCM416, RCM816, KM0032, KN1108v, KN1116v, KN2116v, KN2124v, KN2132, KN2132v, KN4116, KN4116v, KN4124v, KN4132v, KN4140v |
| SKU | KA7140-AX |
| Barcode # | 4710423775657 |
| Brand | Aten |
| Shipping Weight | 0.1800kg |
Warranty information
ATEN KA7140-AX Serial Console KVM Adapter
2-Year ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
