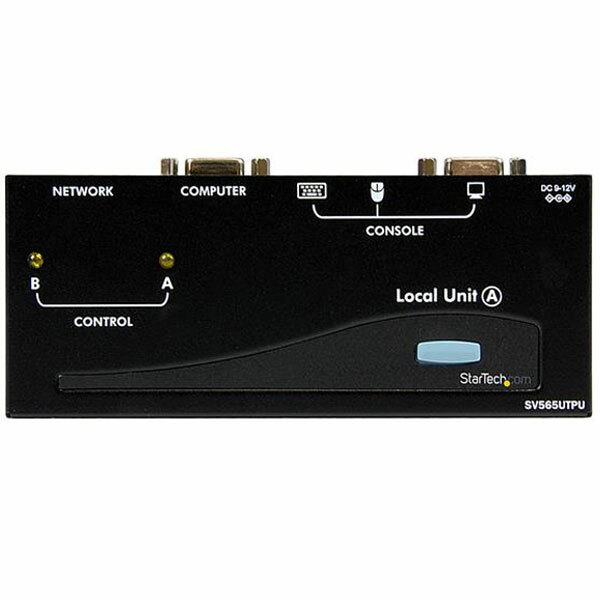

StarTech.com SV565UTPU

StarTech SV565UTPU USB VGA KVM Extender over Cat5

Control a USB and VGA computer or KVM system from up to 500 ft (150 m) away using standard Cat5 or Cat6 UTP cabling, with host and remote units supplied as a complete kit.

500 ft / 150 mVGA + USBOS independent2-year warranty

StarTech SV565UTPU USB VGA KVM Extender over Cat5

Key features

Up to 500 ft extension

Extend USB keyboard/mouse and VGA console access up to 500 ft (150 m).

Standard Cat5/Cat6 cabling

The host and remote units connect over one standard Cat5 or Cat6 UTP cable run.

Local workstation access

Use the remote location to switch between workstation view and the extended KVM view.

Resolution by distance

The specification lists 1280 × 1024 at 300 ft / 100 m and 1024 × 768 at the maximum cable length.

What to know

Distance notationStarTech describes the product as a 500 ft extender and states 150 m in the exact-SKU datasheet.

AudioThe specification lists audio support as No.

PowerThe current exact-SKU StarTech datasheet specifies a 12V DC, 1.5A adapter and 18W power consumption.

Product video

Australian version and official StarTech.com warranty

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SV565UTPU?

SV565UTPU is a USB and VGA KVM console extender for controlling a computer or KVM-connected systems from a remote location over Cat5 or Cat6 cabling.

What is the maximum extension distance?

StarTech describes the product as supporting up to 500 ft and states 150 m in the exact-SKU datasheet.

What resolutions are supported over distance?

The specification lists 1280 × 1024 at 300 ft / 100 m and 1024 × 768 at the maximum cable length.

What cable connects the host and remote units?

A standard Cat5 or Cat6 UTP cable connects the host and remote units.

Does it require software or drivers?

No. The extender is OS independent and requires no software or drivers.

Does SV565UTPU support audio?

No. The exact-SKU specification lists audio support as No.

What comes in the box?

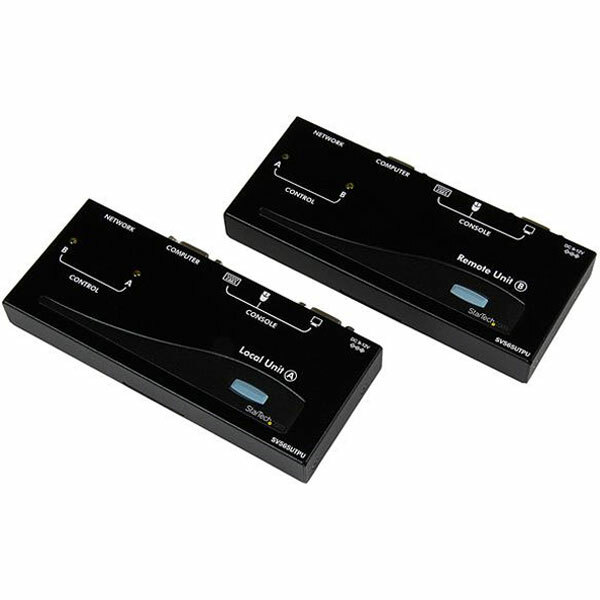

The package includes a host unit, remote unit, two 6 ft 2-in-1 USB VGA KVM cables, eight rubber feet, a power adapter and an instruction manual.

What warranty applies in Australia?

This Australian-version product is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility and product assessment.

(SV565UTPU)

Features and highlights

Up to 500 ft extension

Extend USB keyboard/mouse and VGA console access up to 500 ft (150 m).

Standard Cat5/Cat6 cabling

The host and remote units connect over one standard Cat5 or Cat6 UTP cable run.

Local workstation access

Use the remote location to switch between workstation view and the extended KVM view.

Resolution by distance

The specification lists 1280 × 1024 at 300 ft / 100 m and 1024 × 768 at the maximum cable length.

Plug-and-play operation

The extender is OS independent and requires no software or drivers.

Connection cables included

Two 6 ft 2-in-1 USB VGA KVM cables are included with the host and remote units.

Key highlights

500 ft / 150 m
VGA + USB
OS independent
2-year warranty

Warranty confidence

Official StarTech.com 2-year manufacturer warranty in Australia for this Australian-version product, subject to StarTech.com terms and assessment.

Specifications

StarTech SV565UTPU

Warranty Information

Warranty	2 Years

Hardware

Audio	No
KVM Ports	2
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	No

Performance

IP Control	No
Max Transfer Distance	150 m (492 ft)
MTBF	126000 hours
Supported Resolutions	1280 x 1024 @ 300ft/ 100m 1024 x 768 @ maximum cable length

Connector(s)

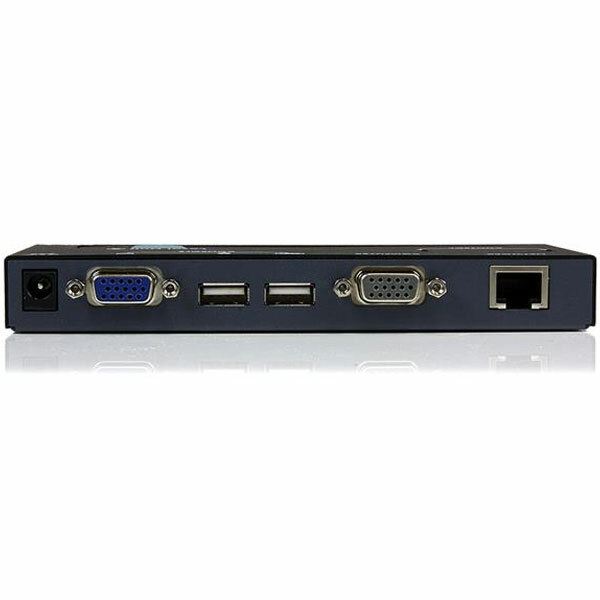

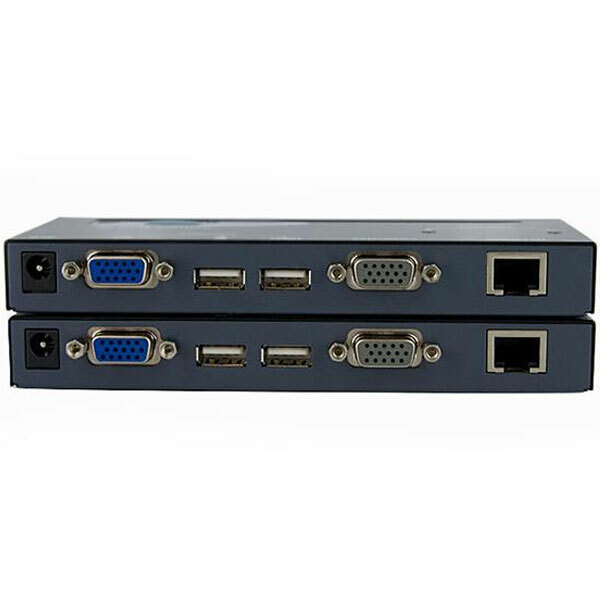

Console Interface(s)	1 - VGA (15 pin, High Density D-Sub) Female 2 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	1 - VGA (15 pin, High Density D-Sub) Female
Other Interface(s)	1 - RJ-45 Female

Software

OS Compatibility	OS independent; No software or drivers required

Special Notes / Requirements

Note	Product weights/measurements and connector types indicate a single unit only (either Host or Remote)

Power

Center Tip Polarity	Positive
Input Current	0.2A
Input Voltage	100 - 240 AC
Output Current	1.5A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18W
Power Source	AC Adapter Included

Environmental

Humidity	0~80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color	Black
Material	Steel
Product Height	0.8 in [2 cm]
Product Length	3 in [75 mm]
Product Width	6.1 in [15.5 cm]
Weight of Product	21.6 oz [612 g]

Packaging Information

Package Height	3.3 in [83 mm]
Package Length	9.8 in [24.8 cm]
Package Width	11.6 in [29.4 cm]
Shipping (Package) Weight	3 lb [1.3 kg]

What's in the Box

Included in Package	1 - host unit 1 - remote unit 2 - 6 ft 2-in-1 USB VGA KVM cables 8 - rubber feet 1 - power adapter 1 - instruction manual

SKU	SV565UTPU
Barcode #	65030832625
Brand	Startech
Shipping Weight	1.3800kg
Shipping Width	0.250m
Shipping Height	0.090m
Shipping Length	0.298m
Shipping Cubic	0.006705000m3
