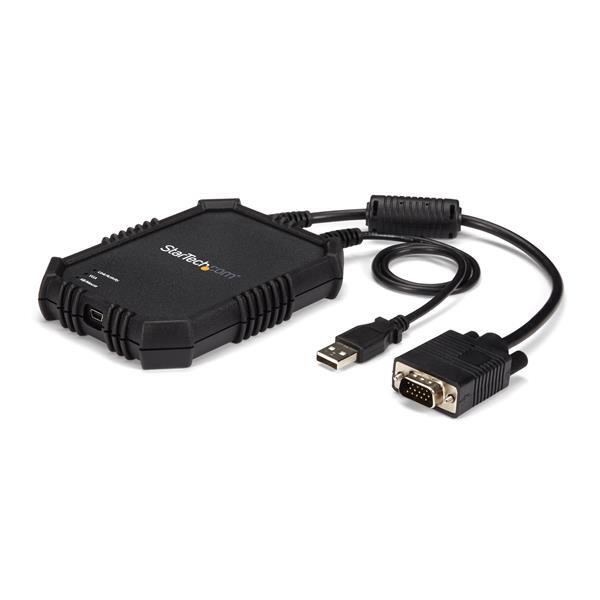

This rugged and portable USB crash cart adapter lets you turn your laptop into a portable console for accessing servers, desktops and laptops, as well as ATMs, kiosks or any computing device that features both VGA and USB ports.

This adapter also supports local file transfer and video capturing built into the software.

Maximum durability

This crash cart adapter has been specifically designed for maximum durability. It features a rugged, rubberized housing that can handle drops by absorbing shock, to make sure that you're equipped for unexpected challenges.

Hassle-free operation

Troubleshoot your devices quickly and easily. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server.

The crash cart adapter features a flexible software interface that offers robust performance. It enables you to transfer files from your laptop to the server, monitor and capture activity from the connected device as video for records or instructional purposes, and take screenshots and scale the display window to full-screen mode or smaller, without scroll bars.

Compact portability

This compact crash cart adapter lets you connect to a headless device using only a laptop, eliminating the need to lug around an awkward, traditional server room crash cart. With optimal portability in mind for your mobile administration or repairs, this pocket-sized adapter features a small footprint and lightweight design that easily fits inside your laptop bag.

The adapter is USB powered so you won't need to carry a power adapter. Plus, the KVM cables are attached to the crash cart adapter so you won't need additional accessories to connect it to your server. The built-in cables have been engineered with strain relief, preventing them from wearing or breaking.

Universal connectivity

With no server-side software installation required, the USB crash cart adapter provides BIOS-level control of any PC or device that has both a VGA port and a USB port.

*Please note that the mouse function may be limited in some BIOS/UEFI environments

(NOTECONS02X)

Hardware
PC Video TypeVGA
Rack-MountableNo
Indicators
LED IndicatorsHost/Server Keyboard/Mouse USB Link
Host/Server Video (VGA) Link
User Console/USB Link
Packaging Information
Package Height47 mm [1.9 in]
Package Length30.1 cm [11.9 in]
Package Width16.5 cm [6.5 in]
Shipping (Package) Weight0.5 kg [1 lb]
Performance
Hot-Key SelectionNo
IP ControlNo
Maximum Analog Resolutions1920x1200 @ 60Hz
Maximum Number of Users1
On-Screen DisplayNo
Physical Characteristics
Cable Length1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
416 mm [16.4 in]
ColorBlack
Enclosure TypePlastic
Product Depth115 mm [4.5 in]
Product Height2.2 cm [0.9 in]
Product Length12.5 cm [4.9 in]
Hardware
PC InterfaceUSB
Number of Monitors Supported1
KVM Ports1
Daisy-ChainNo
Cables IncludedYes
AudioNo
Environmental
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Operating Temperature0°C to 40°C (32°F to 104°F)
Humidity80% RH
Connector(s)
Host ConnectorsVGA (15 pin, High Density D-Sub) Male
USB Type-A (4 pin) USB 2.0 Male
Console Interface(s)USB Mini-B (5 pin) Female Input
Physical Characteristics
Product Width88 mm [3.5 in]
Weight of Product244 g [8.6 oz]
Power
Power SourceUSB-Powered
Software
OS CompatibilityWindows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS® 10.9 to 10.14
Linux 2.6 to 4.11 LTS versions only
Special Notes / Requirements
NoteIf you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration
What's in the Box
Included in PackageQuick start guide
Rugged crash cart adapter
USB A to Mini-B cable
USB software key
SKU NOTECONS02X
Barcode # 65030862240
Brand STARTECH
Shipping Weight 0.4600kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.001500000m3
