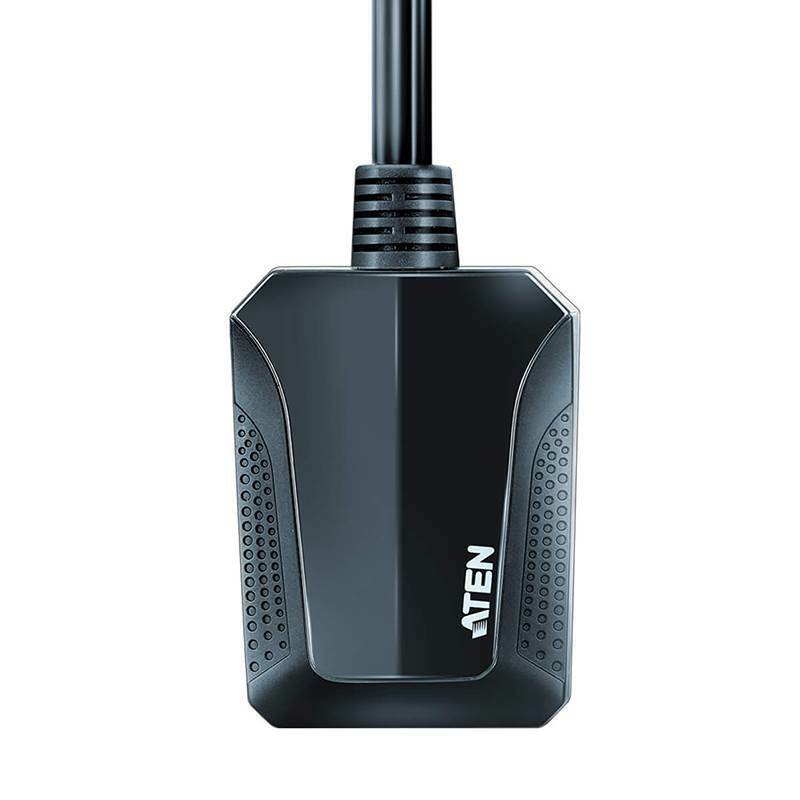

ATEN's CV211 is a laptop USB KVM console adapter designed specifically for frustrated mobile IT managers. It is the perfect crash cart replacement that turns your laptop into a KVM console combining the functionality of a wormhole switch, capture box, external DVD-ROM, keyboard, mouse and monitor all in one compact and convenient unit. You are free to quickly and professionally diagnose and troubleshoot servers, ATMs or PoS systems with ease.







The Laptop USB KVM Console Crash Cart Adapter IT Kit is highly recommended for on-the-go IT professionals who need connection flexibility and high mobility. This IT Kit provides an all-in-one solution that ensures compatibility with most major types of video interface, such as DisplayPort, HDMI, and VGA, saving the cost and inconvenience of purchasing separate video adapters.

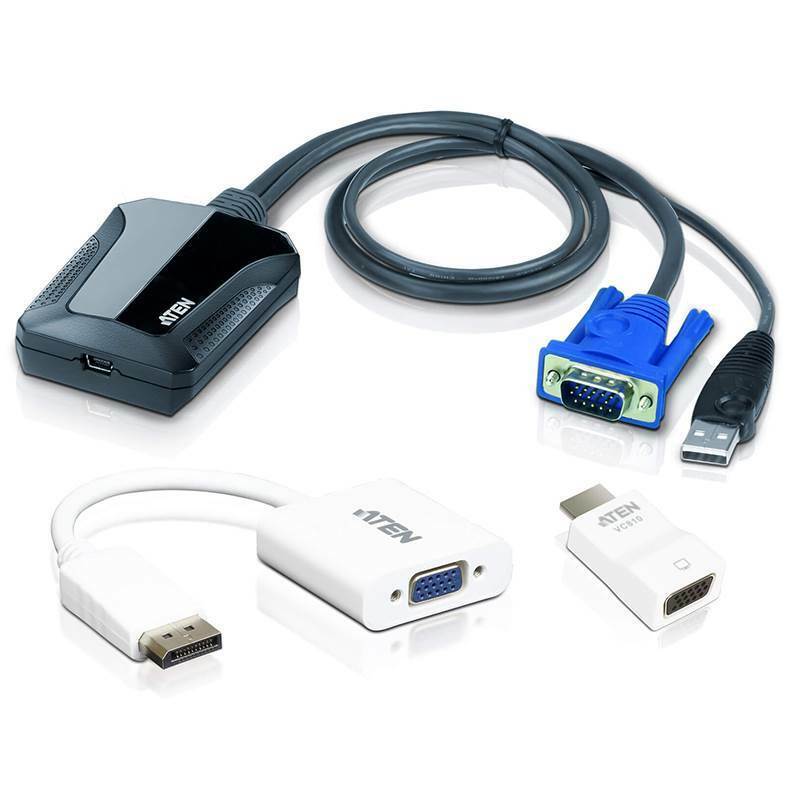

The Kit includes a Portable Console Crash Cart Adapter (CV211, see more product details in the following paragraphs), a DisplayPort to VGA adapter (VC925), and an HDMI to VGA adapter (VC810). Please refer to VC925 and VC810 product pages for more information.

The CV211 Laptop USB KVM Console Crash Cart Adapter provides a direct Laptop-to-Computer connection to servers, computers, kiosks and ATMs. It eliminates the need for heavy crash carts while offering BIOS-level access, bi-directional file transfers, hotkey macros, video recording and screenshots through a USB 2.0 and VGA composite cable.

The innovative virtual media function provides file applications, OS patching, diagnostic testing and software installations through the CV211’s intuitive graphical user interface (GUI) which provides easy operation and fast remote access. The GUI console window can be adjusted to the exact size and resolution of the remote computer's desktop by resizing the pane automatically, or you can manually adjust the window size as you see fit. This allows you to view the target computer’s entire desktop without needing to use a scroll bar.

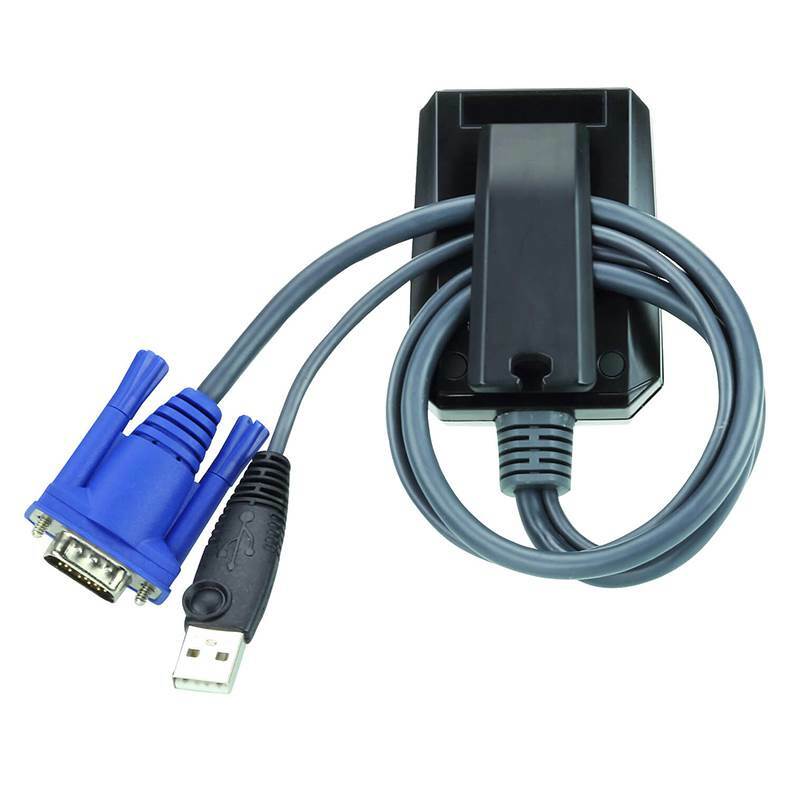

In addition, the unique cable clip design is utilized for easy tidying of disorganized cables while the CV211 is being used and transported. The CV211 is the perfect crash cart replacement to troubleshoot systems that are difficult to reach or where internet access is not available or permitted.

Package Contents

  • 1 x CV211 Laptop USB KVM Console Crash Cart Adapter
  • 1x VC925 DisplayPort to VGA Adapter
  • 1x VC810 HDMI to VGA Adapter
  • 1 x USB Type A to USB Mini-B Cable
  • 1 x User Instructions
  • USB Console Adapter Provides Direct Laptop-to-Computer Desktop Access
  • Transforms your laptop into an ultra mobile console for servers, computers, kiosks and ATMs
  • Virtual media enables file applications, OS patching, diagnostic testing and software installation
  • Upgradable firmware to keep unit up to date
  • Eliminates the need for heavy and bulky crash carts
  • Desktop scaling – user can adjust the size/resolution of the Remote desktop window by size or ratio




  • Server and Computer Troubleshooting
  • Instant BIOS-level access gets you total control of a server during hardware and operating system failures
  • Bi-directional file transfers between the laptop and target computer
  • Video recording and image capture feature saves a record of remote operations for future training and troubleshooting
  • Mouse DynaSync™ – automatically synchronizes the laptop and target computer's mouse movements
  • On-screen keyboard with multi-language support
  • Supports hotkey macros – define keystrokes that execute specific actions on the target computer to complete tasks efficiently and accurately




  • Ease of Use
  • Plug-and-Play – no software installation required on either side
  • Toolbar helps users easily operate all the functions from a single-click control panel within the remote view window
  • Adjustable video settings for optimal picture and performance
  • USB bus-powered design with hot-plugging support




  • Maximum Convenience
  • Built-in VGA and USB keyboard/mouse cables
  • Unique cable clip design to get cables under control
  • Supports analogue video resolutions up to 1920 x 1200 @ 60 Hz
  • Compact and easy to carry – half-palm size




Function CV211
Computer Connections 1
Connectors
Laptop USB Console (LUC) Port 1 x USB Mini Type B Female
KVM (Computer) Ports 1 x USB Type A Male
1 x VGA Male (Blue)
LEDs 1 (Blue)
Power Consumption DC5V:2.35W:11BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight TBD
Dimensions (L x W x H) TBD
Other Included Adapters A DisplayPort to VGA adapter (VC925)
An HDMI to VGA adapter (VC810)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



Description Ver. Release Date File Name
Firmware Upgrade v1.0.072 cv211_v1.0.072.zip
Firmware Upgrade v1.0.070 cv211_v1.0.070.zip
Firmware Upgrade v1.0.067 cv211_v1.0.067.zip
Firmware Upgrade v1.0.066 cv211_v1.0.066.zip
Firmware Upgrade v1.0.065 cv211_v1.0.065.zip


(CV211CP-AT)

Function CV211
Computer Connections 1
Connectors
Laptop USB Console (LUC) Port 1 x USB Mini Type B Female
KVM (Computer) Ports 1 x USB Type A Male
1 x VGA Male (Blue)
LEDs 1 (Blue)
Power Consumption DC5V:2.35W:11BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.13 kg ( 0.29 lb )
Dimensions (L x W x H) 7.05 x 5.37 x 3.01 cm
(2.78 x 2.11 x 1.19 in.)
Other Included Adapters A DisplayPort to VGA adapter (VC925)
An HDMI to VGA adapter (VC810)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
SKU CV211CP-AT
Barcode # 672792008702
Brand Aten
Shipping Weight 0.3400kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.000750000m3

Manufacturer Warranty: 2 Years Limited Warranty
